VAT 08 Series Installation, Operating And Maintenance Instructions

VAT 08 Series Installation, Operating And Maintenance Instructions

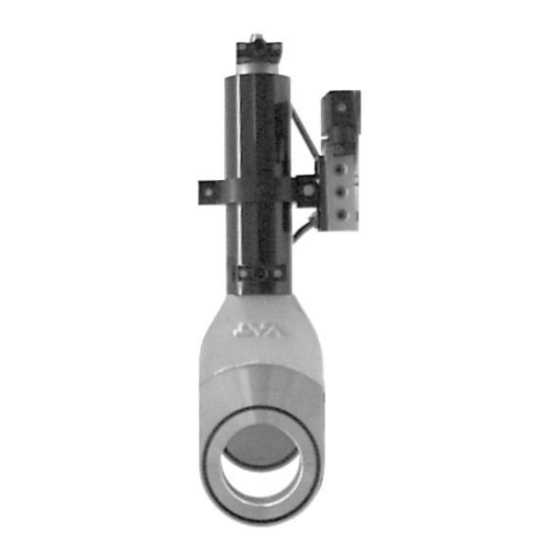

Insertable gate valve with pneumatic actuator

Advertisement

Quick Links

Insertable Gate Valve
with pneumatic actuator
This manual is valid for the valve ordering numbers:
08036-FA14/24/34/44
08038-FA14/24/34/44
08040-FA14/24/34/44
The respective product identification is given on each valve in the following way
(or similar):
96
made in Switzerland
Fabrication No.:
patented
F08 – . . . . . / . .
08 . . . – . . . . – . . . .

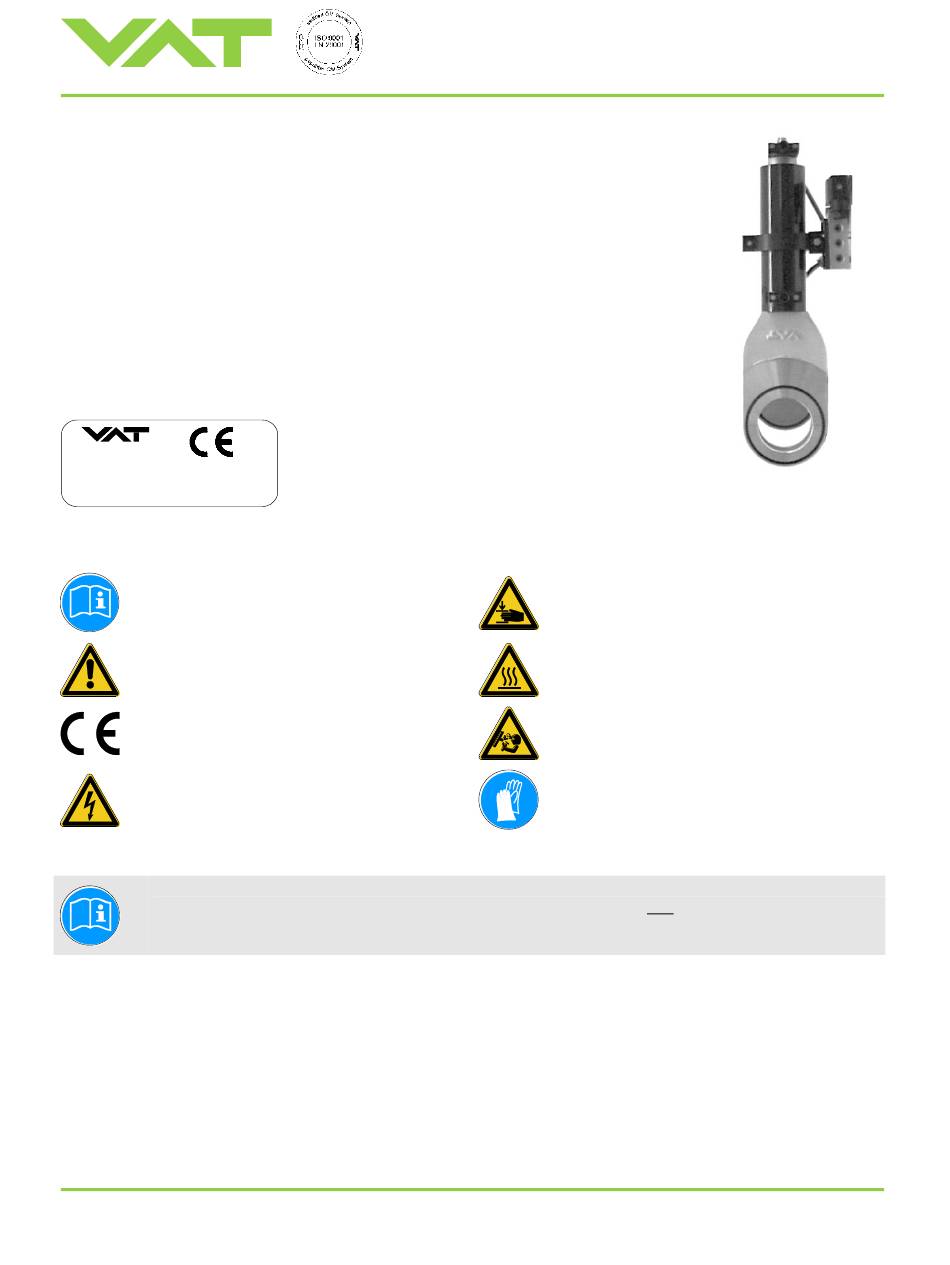

Explanation of symbols:
Read declaration carefully before you start any other
action!
Attention!
Product is in conformity with EC guidelines,
if applicable!
Disconnect electrical power and compressed air lines.
Do not touch parts under voltage!
Read these «Installation, Operating & Maintenance Instructions» and the enclosed «General
Safety Instructions» carefully before you start any other action!
VAT Vakuumventile AG, CH-9469 Haag, Switzerland
Tel +41 81 771 61 61 Fax +41 81 771 48 30 CH@vatvalve.com www.vatvalve.com
Installation, Operating, and Maintenance Instructions
Series 08, DN 63 - 100 (2½" - 4")
Keep body parts and objects away from the valve
opening!
Hot surfaces; do not touch!
Loaded springs and/or air cushions are potential
hazards!
Wear gloves!
222687EC
1/8
2003-04-14
