Intelix INT-HDX100 Installation Manual

INT-HDX100 Installation Guide
TX RX

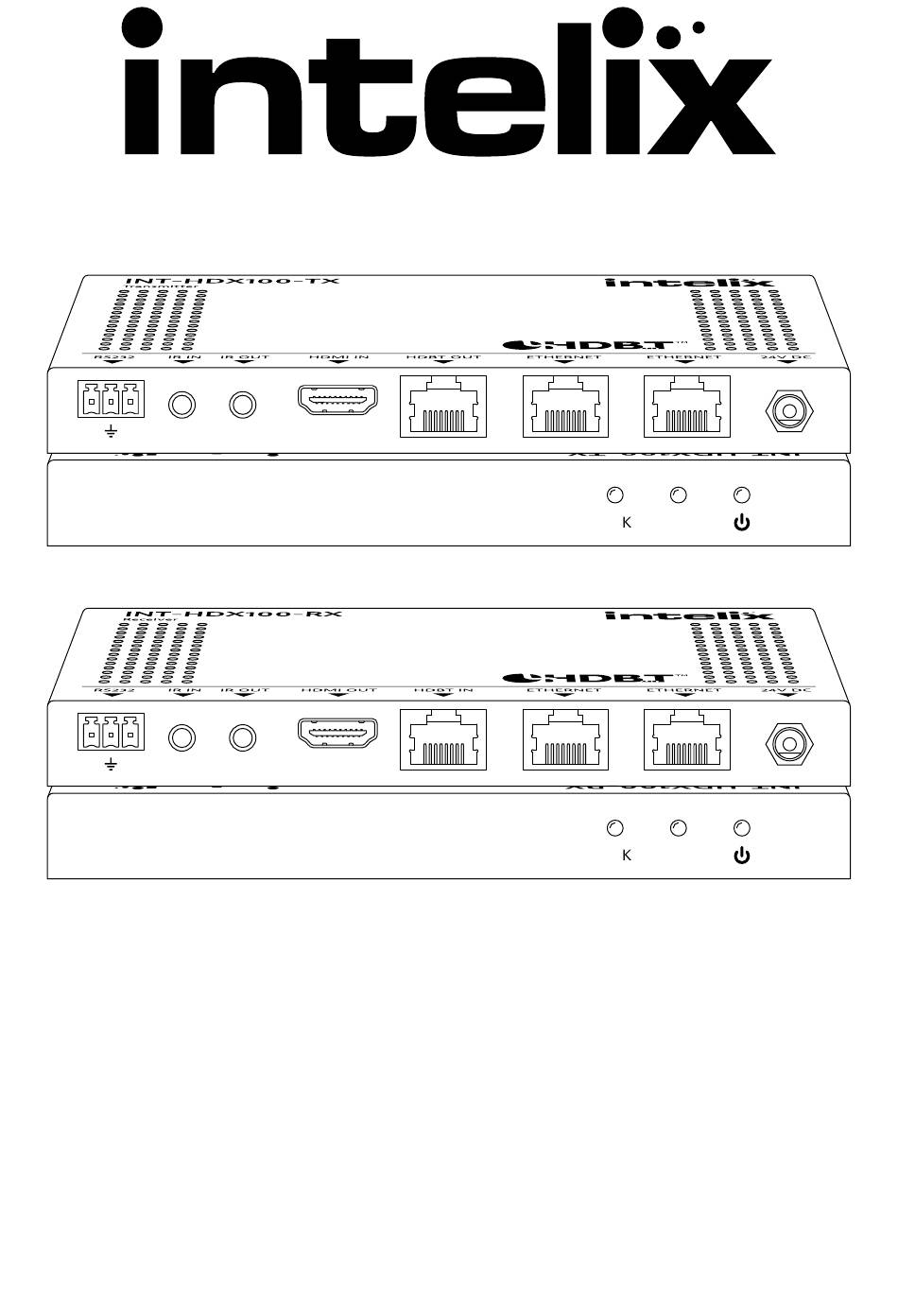

INT-HDX100-TX
TX RX
INT-HDX100-RX
The Intelix INT-HDX100 extends HDMI over a single solid core shielded Category 5e or greater
cable using the Valens VS100 HDBaseT chipset. The INT-HDX100 supports 1080p, full 3D or 4k x 2k
video signals up to 100 meters (328 feet) including multichannel audio and HDCP 1.4/2.2. Built-in
surge protection and diagnostic LEDs ensure hassle-free and robust installations. Key features of
the new extender series include power over HDBaseT (PoH), bidirectional IR, bidirectional RS232,
and Ethernet pass-through with a 2-port network switch.
Flexible power design allows the INT-HDX100 series extenders to be powered at either the TX or
RX end, and only one power supply is required. The power supply is included with the extender.
The bidirectional wideband IR, bidirectional RS232, and Ethernet pass-through capabilities make
the INT-HDX100 compatible with most control systems. The IR emitter (DIGIB-EMT) and IR receiver
(DIGIB-EYE) are sold separately. The two-port network switch on the INT-HDX100 allows a second
device to share the 100BaseT Ethernet pass-through connection without adding additional
hardware to the installation.
The INT-HDX100 series extenders are compatible with all Intelix HDBaseT product offerings and
any product that meets the HDBaseT specifications.
