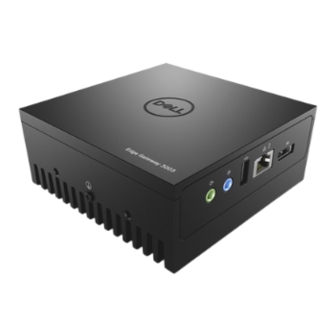

Dell Edge Gateway 3003
Installation and Operation Manual
Regulatory Model: N03G
Regulatory Type: N03G001
October 2020
Rev. A08

Advertisement

Table of Contents
loading

Related Manuals for Dell Edge Gateway 3003

Summary of Contents for Dell Edge Gateway 3003

  • Page 1 Dell Edge Gateway 3003 Installation and Operation Manual Regulatory Model: N03G Regulatory Type: N03G001 October 2020 Rev. A08...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2017-2020 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents Chapter 1: Overview........................5 Chapter 2: System views.......................6 Top view....................................6 Bottom view..................................6 Left view....................................7 Right view....................................9 Chapter 3: Installing your Edge Gateway..................11 Safety and regulatory information..........................11 Setting up your Edge Gateway............................13 Activating your mobile broadband service........................20 Mounting your Edge Gateway............................21 Mounting the Edge Gateway using the standard-mount bracket..............21 Mounting the Edge Gateway using quick-mount bracket.................
  • Page 4 Flashing the BIOS from a USB flash drive......................81 Updating the BIOS on a Windows system......................81 Using UEFI capsule update on an Ubuntu system....................81 Dell Command | Configure (DCC)........................... 82 Edge Device Manager (EDM)...........................82 Default BIOS settings...............................83 Chapter 7: References.........................89 Chapter 8: Appendix........................90...

  • Page 5: Chapter 1: Overview

    Overview The Edge Gateway 3000 Series is an Internet-of-Things (IoT) device. It is mounted at the edge of a network, enabling you to collect, secure, analyze, and act on data from multiple devices and sensors. It enables you to connect with devices used in transportation, building automation, manufacturing, and other applications.

  • Page 6: Chapter 2: System Views

    System views Top view Table 1. Top view Features WLAN, Bluetooth, or GPS connector Connect the antenna to increase the range and strength of wireless, Bluetooth, or satellite signals. Mobile broadband antenna-connector one Connect the mobile broadband antenna to increase the range (3G/LTE) and strength of mobile broadband signals.

  • Page 7: Left View

    Table 2. Bottom view Features Service Tag label The Service Tag is a unique alphanumeric identifier that enables the Dell service technicians to identify the hardware components in your Edge Gateway and access warranty information. Earth ground A large conductor attached to one side of the power supply, which serves as the common return path for current from many different components in the circuit.
  • Page 8 Table 3. Left view (continued) Features NOTE: To comply with EU Declaration of Conformity (DoC), ensure cable length from the system to the device does not exceed 30 meters. NOTE: To comply with regulatory requirements in Brazil, ensure cable length from the system to the device does not exceed 10 meters.

  • Page 9: Right View

    Table 4. Status-light indicators (continued) Function Indicator Color Control Status On (Amber): Low- speed connection (10 Mbps) Activity Green Driver (LAN) Off: No activity on link Blinking Green: LAN activity. The blink rate is related to packet density. NOTE: The power and system status light may operate differently during different boot-up scenarios, for example, when a USB script file is run during boot-up.
  • Page 10 Table 6. Right view—3003 (continued) Features Audio line-in (BLUE) Connect recording or playback devices. USB 2.0 port Connect a USB enabled device. Provides data transfer speeds up to 480 Mbps. Ethernet port two (Non-PoE) Connect an Ethernet (RJ45) cable for network access. Provides data transfer speeds up to 10/100 Mbps.

  • Page 11: Chapter 3: Installing Your Edge Gateway

    10 percent of the input DC voltage. WARNING: When installing the Edge Gateway 3003, use a cable appropriate for the load currents: 3-core cable rated 5 A at 90°C (194°F) minimum, which conform to either IEC 60227 or IEC 60245. The system accepts cables from 0.8 mm to 2 mm.
  • Page 12 Professional installation instructions Installation personnel This product is designed for specific applications and needs to be installed by qualified personnel with RF and regulatory-related knowledge. The general user shall not attempt to install or change the setting. Installation location The product shall be installed at a location where the radiating antenna is kept 20 cm from nearby persons in its normal operation condition in order to meet regulatory RF exposure requirements.

  • Page 13: Setting Up Your Edge Gateway

    ● Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. ● This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Radiation exposure statement: This equipment complies with FCC radiation exposure limits for an uncontrolled environment.
  • Page 14 NOTE: In some environments where the Edge Gateway may be installed, a more robust mounting method is required. For example, for mounting in marine applications, it is recommended to use only the standard— mount bracket. The recommendation is due to the presence of vibrations unique to the marine environment. 1.
  • Page 15 Table 7. Antennas supported in Edge Gateway 3003 Antennas supported Signals 3003 Not applicable NOTE: Use only the supplied antennas or third-party antennas that meet the minimum specifications. NOTE: Depending on the configuration ordered, some of the antenna connectors may not be present or may be capped.
  • Page 16 5. Secure the antenna by tightening the rotating head of the connector until it firmly holds the antenna in the preferred position (upright or straight). NOTE: Antenna images are for illustrative purposes only. Actual appearance may differ from the images provided. 6.
  • Page 17 8. Insert a micro-SIM card into the top micro-SIM card slot and activate your mobile broadband service. CAUTION: Dell recommends that you insert the micro-SIM card before turning on the Edge Gateway. NOTE: Ensure that you firmly screw back the access door after closing. NOTE: Contact your service provider to activate your micro-SIM card.
  • Page 18 NOTE: Secondary enclosures are sold separately. 11. Connect the Edge Gateway to one of the following power sources: ● DC-IN ● PoE Installing your Edge Gateway...
  • Page 19 14. Access the BIOS by pressing F2 to enter the BIOS setup or F12 to enter the BIOS boot menu. Windows 10 IOT Enterprise LTSB 2016 Click Start > All Programs > Dell > Command Configure > Dell Command | Configure Wizard. Ubuntu Core 16 Use the dcc.cctk command to access the Dell Command | Configure application.

  • Page 20: Activating Your Mobile Broadband Service

    Activating your mobile broadband service CAUTION: Before you power on the Edge Gateway, insert a micro-SIM card. NOTE: Ensure that the service provider has already activated the micro-SIM card before you use it in the Edge Gateway. 1. Remove the screw to open the micro-SIM card access door. 2.

  • Page 21: Mounting Your Edge Gateway

    Example (3G): network-manager.nmcli con add type gsm ifname cdc-wdm0 con-name 3G_GSMDEMO apn internet d. Connect to the mobile network: Command line: network-manager.nmcli con up <connection-name> Example (Verizon): network-manager.nmcli con up VZ_GSMDEMO Example (AT&T): network-manager.nmcli con up ATT_GSMDEMO Example (3G): network-manager.nmcli con up 3G_GSMDEMO To disconnect from the mobile network: Command line: network-manager.nmcli con down <connection-name>...
  • Page 22 NOTE: The mounting brackets are shipped with only those screws that are required for securing the mounting brackets to the Edge Gateway. 1. Secure the standard-mount bracket to the back of the Edge Gateway using the four M4x4.5 screws. NOTE: Torque the screws at 8±0.5 kilograms-centimeter (17.64±1.1 pounds-inch).
  • Page 23 2. Place the Edge Gateway against the wall, and align the holes in the standard-mount bracket with the holes on the wall. Screw holes on the bracket have a diameter of 3 mm (0.12 in). Installing your Edge Gateway...
  • Page 24 3. Place the standard-mount bracket on the wall, and using the holes above the screw holes on the bracket, mark the positions to drill the four holes. Installing your Edge Gateway...
  • Page 25 4. Drill four holes in the wall as marked. 5. Insert and tighten four screws (not supplied) to the wall. NOTE: Purchase screws that fit the diameter of the screw holes. Installing your Edge Gateway...
  • Page 26 6. Align the screw holes on the standard-mount bracket with the screws and place the Edge Gateway onto the wall. Installing your Edge Gateway...
  • Page 27 7. Tighten the screws to secure the assembly to the wall. Installing your Edge Gateway...

  • Page 28: Mounting The Edge Gateway Using Quick-Mount Bracket

    Mounting the Edge Gateway using quick-mount bracket The quick-mount bracket is a combination of the standard-mount bracket and the DIN-rail bracket. It enables you to easily mount and demount the Edge Gateway. NOTE: The mounting brackets are shipped with only those screws required for securing the mounting brackets to the Edge Gateway.
  • Page 29 Mounting instructions 1. Place the standard-mount bracket on the wall, and using the holes above the screw holes on the bracket, mark the positions to drill the four holes. Installing your Edge Gateway...
  • Page 30 2. Drill four holes in the wall as marked. 3. Insert and tighten four screws (not supplied) to the wall. NOTE: Purchase screws that fit the diameter of the screw holes. Installing your Edge Gateway...
  • Page 31 4. Align the screw holes on the standard-mount bracket with the screws on the wall, letting the bracket hang on the screws. Installing your Edge Gateway...
  • Page 32 5. Tighten the screws to secure the assembly to the wall. Installing your Edge Gateway...
  • Page 33 6. Align the screw holes on the DIN-rail bracket with the screw holes at the back of the Edge Gateway. 7. Place the two M4x5 screws on the DIN-rail bracket and secure it to the Edge Gateway. Installing your Edge Gateway...
  • Page 34 8. Place the Edge Gateway on the standard mount at an angle, and then pull the Edge Gateway down to compress the springs at the top of the DIN-rail bracket. Installing your Edge Gateway...
  • Page 35 9. Push the Edge Gateway towards the DIN-rail to secure it on the standard-mount bracket. NOTE: For more information about demounting the DIN-rail, see Demounting DIN rail. Installing your Edge Gateway...

  • Page 36: Attaching The Cable Control Bars To The Standard-Mount Bracket

    Attaching the cable control bars to the standard-mount bracket 1. Mount the Edge Gateway on the wall using the standard-mount bracket quick-mount bracket. 2. Place the cable control bar on the mounting bracket and secure it to the notch. CAUTION: Use the top cable control bar only with coaxial cable connections.
  • Page 37 5. Connect the cables to the Edge Gateway. 6. Loop the cable lock (not supplied) to secure each cable to the cable control bar. Installing your Edge Gateway...

  • Page 38: Mounting The Edge Gateway On A Din Rail Using The Din-Rail Bracket

    Mounting the Edge Gateway on a DIN rail using the DIN-rail bracket NOTE: The DIN-rail bracket includes the screws that are required for securing the bracket to the Edge Gateway. 1. Align the screw holes on the DIN-rail bracket with the screw holes at back of the Edge Gateway. 2.
  • Page 39 3. Secure the DIN-rail mounting bracket to the Edge Gateway using the two M4x5 screws provided. NOTE: Torque the screws at 8±0.5 kilograms-centimeter (17.64±1.1 pounds-inch) on the DIN-rail mounting bracket. Installing your Edge Gateway...

  • Page 40: Mounting The Edge Gateway Using The Perpendicular Mount

    4. Place the Edge Gateway on the DIN rail at an angle, and then pull the Edge Gateway down to compress the springs at the top of the DIN-rail mounting bracket. 5. Push the Edge Gateway towards the DIN-rail to secure the lower clip of the bracket onto the DIN rail. NOTE: For more information about demounting the DIN-rail, see Demounting DIN...
  • Page 41 2. Tighten the four M4x7 screws to secure the Edge Gateway to the perpendicular-mount bracket. NOTE: Torque the screws at 8±0.5 kilograms-centimeter (17.64±1.1 pounds-inch). Installing your Edge Gateway...
  • Page 42 3. Align the screw holes on the DIN-rail mount bracket with the screw holes on the perpendicular-mount bracket, and tighten the two screws. NOTE: Torque the screws at 8±0.5 kilograms-centimeter (17.64±1.1 pounds-inch). Installing your Edge Gateway...
  • Page 43 4. Place the Edge Gateway on the DIN rail at an angle and push the Edge Gateway down to compress the springs on the DIN- rail mount brackets. 5. Push the Edge Gateway towards the DIN-rail to secure the lower clip of the bracket onto the DIN rail. Installing your Edge Gateway...

  • Page 44: Mounting The Edge Gateway Using A Vesa Mount

    6. Secure the Edge Gateway on the DIN rail. Mounting the Edge Gateway using a VESA mount The Edge Gateway can be mounted on a standard VESA mount (75 mm x 75 mm). NOTE: The VESA mount option is sold separately. For VESA mounting instructions, see the documentation that is shipped with the VESA mount.
  • Page 45 Installing your Edge Gateway...

  • Page 46: Chapter 4: Setting Up The Zigbee Dongle

    Setting up the ZigBee dongle CAUTION: Do not connect the ZigBee dongle if the Edge Gateway is installed inside the enclosure. 1. Power off your Edge Gateway. 2. Connect the ZigBee dongle to any external USB port on your Edge Gateway. 3.

  • Page 47: Chapter 5: Setting Up The Operating System

    Setting up the operating system CAUTION: To prevent operating system corruption from sudden power loss, use the operating system to gracefully shut down the Edge Gateway. The Edge Gateway is shipped with one of the following operating systems: ● Windows 10 IoT Enterprise LTSB 2016 ●...

  • Page 48: Restoring Windows 10 Iot Enterprise Ltsb 2016

    Windows 10 IOT Enterprise LTSB 2016 basic functions BIOS update Download BIOS updates for the Edge Gateway from www.dell.com/support. The download includes an executable file that may be run from the local machine. For more information about updating the BIOS, see Accessing and updating the BIOS.

  • Page 49: Ubuntu Core 16

    3. Run the CloudLED.exe from Command Prompt or PowerShell with administrative rights. Run the following commands: ● CloudLED.exe ON ● CloudLED.exe OFF TPM support Windows 10 IoT Enterprise LTSB 2016 supports TPM 2.0. For more information about TPM resources, see technet.microsoft.com/en-us/library/cc749022.

  • Page 50: Boot Up And Log In - Direct System Configuration

    2. Set the subnet mask to 255.255.255.0. Updating operating system and applications After enabling the network connections and connecting to the internet, Dell recommends to have the latest OS components and applications installed. To update Ubuntu Core 16, run: admin@localhost:~$ sudo snap refresh...

  • Page 51: Additional Ubuntu Commands

    Viewing operating system and application versions Run the uname command to view system information: root@DCPLB02:/sys/class/net# uname -a Add the -a option at the end of the command to print all system information. For example: Linux DCPLB02 4.4.0-98-generic #121-Ubuntu SMP Tue Oct 10 14:24:03 UTC 2017 x86_64 x86_64 x86_64 GNU/Linux NOTE: Check if a newer version of the software is available.

  • Page 52: Ubuntu Network Manager

    Run the command: admin@localhost:$ cat /sys/class/dmi/id/ board_vendor returns Dell Inc. The system tag is printed. Ubuntu Network Manager Network-Manager is a native Ubuntu Snappy connection manager. The application can be used to configure the Edge Gateway so that it's automatically-detected and connected to the network. The application can be used to configure multiple network devices.
  • Page 53 3. Create a profile. $ sudo network-manager.nmcli c add con-name test type gsm ifname <primary port> apn internet NOTE: Depending on the return results from step 2, replace <primary port > after ifname with the actual primary port name. 4. Check the WWAN status. $ network-manager.nmcli r wwan 5.
  • Page 54 NOTE: For more information on SoftAP, see https://docs.ubuntu.com/core/en/stacks/network/wifi-ap/docs/index. 1. Login to Ubuntu Snappy. Make sure that the system is connected to the internet. 2. Run the command to find the application from the Ubuntu Snappy Store. #sudo snap seach wifi-ap 3.
  • Page 55 [bluetooth]# scan off 3. Pair with each other. As of Bluetooth v2.1, Secure Simple Pairing is a requirement, and offers three methods of pairing devices, which are applicable on the Dell Gateway 3000 series: ● Just Works ● Numeric Comparison...

  • Page 56: Security

    ● Passkey Entry NOTE: For more information about blueetooth pairing, see https://blog.bluetooth.com/bluetooth-pairing-part-4. [bluetooth]# agent on [bluetooth]# default-agent [bluetooth]# pairable on [bluetooth]# pair XX:XX:XX:XX:XX:XX <MAC Address of Device to Pair> [bluetooth]# connect XX:XX:XX:XX:XX:XX [CHG] Device XX:XX:XX:XX:XX:XX Connected: yes [bluetooth]# exit 4. Configure SPP. Server Device $ bluez.sdptool add --channel=22 SP $ ./rfcomm -r listen /dev/rfcomm0 22...

  • Page 57: Cloud Led On/Off

    Dell recommends that you enable the WDT by default to activate the fail-safe circuitry. Snappy, a WDT-compatible operating system, provides the capability to detect and recover the system from malfunctions or unexpected crashes. To check daemon status, run the command: admin@localhost:$ systemctl show | grep –i watchdog...

  • Page 58: Snappy Auto Update/Autopilot

    Snappy auto update/Autopilot Snappy auto update is a feature which runs in the background, ensuring that your software always up-to-date. We recommend that you enable the feature by default. The settings can be adjusted in the Ubuntu Core. NOTE: For more information automatic updates, see https://docs.ubuntu.com/core/en/reference/automatic-refreshes. Accessing Snappy Store/Snapweb 1.

  • Page 59: Sensors

    You can now access the snapweb. Sensors The sensors on the Edge Gateway provide measurements on pressure, relative humidity and temperature, and motion. Table 10. Sensor types Relative humidity and temperature sensor ST Micro HTS221 Motion sensor—Accelerometer ST Micro LNG2DMTR Pressure sensor ST Micro LPS22HB Retrieve the raw data from the sensors by running the following commands.

  • Page 60: Ignition Pin

    $ cat in_humidityrelative_scale $ cat in_temp_offset $ cat in_temp_raw $ cat in_temp_scale ● To retrieve data from the motion sensor, run the command. $ cat in_accel_scale_available $ cat in_accel_*_scale $ cat in_accel_*_raw ● To retrieve data from the pressure sensor, run the command. $ cat in_pressure_raw $ cat in_pressure_scale Converting raw data for use...

  • Page 61: System Power Management

    Table 14. Values and configuration options for the ignition pin (continued) hybrid-sleep Suspend to both disk and RAM lock Screen-lock all running sessions. For example, to reboot the system when the power button is pressed, run the command: $ snap set core system.power-key-action=reboot System Power Management Configuring low power states: S3 and S4 Configure sleep state–S3...

  • Page 62: Restoring Ubuntu Core 16

    Option 1: Restoring from the operating system ○ Option 2: Restoring during system POST ○ Option 3: Restoring from boot menu (Edge Gateway 3003 only) Option 1: Restoring from the operating system CAUTION: These steps will delete all the data on your Edge Gateway 1.

  • Page 63: Flashing A New Os Image

    Procedure NOTE: For a video tutorial on how to restore Ubuntu Core 16 from a USB flash drive on the Edge Gateway 3003, click here. 1. Insert the USB flash drive into the USB port on the Edge Gateway. 2. Power on the Edge Gateway.

  • Page 64: Ubuntu Server

    Flashing new Ubuntu OS image 1. Insert a USB flash drive into the Ubuntu Desktop workstation. 2. Copy <unique name-date>img.xz to ~/Downloads/ directory. 3. Flash the installation image to USB flash drive. a. Start the Terminal application. It can be found by typing Terminal in the Unity Dash. CAUTION: The dd command erases the content of the drive it writes to.

  • Page 65: Installing Or Configuring Dynamic Host Configuration Protocol (Dhcp) Daemon

    NOTE: 10.101.46.209 is an example, and should be replaced with the IP address obtained in step 2. Installing or configuring Dynamic Host Configuration Protocol (DHCP) daemon For more information about Dynamic Host Configuration Protocol (DHCP), see: ● help.ubuntu.com/lts/serverguide/dhcp.html.en ● help.ubuntu.com/community/isc-dhcp-server Installing dhcpd At a terminal prompt, enter the following command to install dhcpd: # sudo apt install isc-dhcp-server...

  • Page 66: Ubuntu Server Driver Information

    UEFI BIOS firmware, in compliance with LVFS requirements. NOTE: For additional information on how to update the firmware under Linux, see en.community.dell.com/techcenter/b/techcenter/ archive/2016/02/02/dell-firmware-updating-under-linux. Ubuntu Server firmware update—Online method Follow these steps to update the Ubuntu Server firmware automatically.

  • Page 67: Configure Watchdog Timer (Wdt)

    2. Download the latest metadata from LVFS. # sudo fwupdmgr refresh 3. If firmware updates are available for the Edge Gateway, get updates. # sudo fwupdmgr get-updates 4. Download and apply all updates to the Edge Gateway. # sudo fwupdmgr update -v Updates that can be applied without having to reboot will be installed immediately.

  • Page 68: Trusted Platform Module (Tpm)

    TPM hardware is installed on products with Snappy-enhanced security support. TPM is supported only on these devices that have the TPM hardware installed. The TPM on/off setting is configurable in the BIOS and manageable through the Dell Command | Configure application in the operating system.

  • Page 69: Cloud Led On/Off

    4. Activate TPM. # cctk --tpmactivation=activate --valsetuppwd=<Setuppwd> 5. Reboot the system. # systemctl reboot NOTE: Do not power off the system while it is rebooting. 6. Check whether TPM is active. # cctk --tpmactivation Cloud LED On/Off 1. To export Cloud LED PIN, run the command: #sudo su –...

  • Page 70: Global Positioning Systems (Gps)

    It provides a client API offering positioning capabilities to applications and other system components. The following shows the GPS-hardware enumeration on Edge Gateways: ● Edge Gateway 3001: /dev/ttyHS0 ● Edge Gateway 3002: /dev/ttyHS1 ● Edge Gateway 3003: /dev/ttyHS0 Example of dumping NMEA streaming data (for Edge Gateway 3001/3003): # cat /dev/ttyHS0 NOTE: For more information about NMEA data, see gpsinformation.org/dale/nmea.
  • Page 71 Table 19. Sensor types (continued) Sensor type Description ST Micro LNG2DMTR Motion G-sensor—Accelerometer ST Micro LPS22HB Pressure sensor Retrieve the raw data from the sensors by running the following commands. Then, apply the formula in the table to convert the data collected into measurements such as relative humidity and temperature.

  • Page 72: Ignition Pin

    Table 22. Convert pressure sensor raw data (continued) Temperature (m degC) = in_temp_raw * in_temp_scale Ignition Pin The ignition pin can be used to wake the Edge Gateway. Table 23. System state behavior System state Input signal goes active Input signal goes inactive No effect No effect System transitions to S0...

  • Page 73: System Power Management

    Configuring system wake-up from low-power states (S3/S4/S5)—WLAN 1. Enable Wake on WLAN in the BIOS program. For more information on accessing the BIOS program, see Accessing BIOS settings. Alternatively, use Dell Command | Configure. # sudo /opt/dell/dcc/cctk --wakeonlan=enablewakeonwlan 2. Connect the system to a wireless network.

  • Page 74: Ubuntu Network Manager

    1. Enable Wake on LAN in the BIOS program. For more information on accessing the BIOS program, see Accessing BIOS settings. Alternatively, use Dell Command | Configure. # sudo /opt/dell/dcc/cctk --wakeonlan=enable 2. Enable Wake on LAN in nmcli (enabled by default).
  • Page 75 3. Create a profile with the given primary port, for example, MBIM. # sudo nmcli c add con-name test type gsm ifname cdc-wdm0 apn internet 4. Check the WWAN status. # nmcli r wwan 5. Turn on WWAN. # sudo nmcli r wwan on 6.
  • Page 76 ● Disconnect: # sudo network-manager.nmcli dev disconnect $WIFI_INTERFACE Connecting through SoftAP (wifi-ap.snap) Enabling the Software-enabled Access Point (SoftAP) can improve connectivity to wireless-access points by increasing available entropy and reducing the number of connection retries to clients. NOTE: For more information on SoftAP, see docs.ubuntu.com/core/en/stacks/network/wifi-ap/docs/index. 1.
  • Page 77 wpa_key_mgmt=WPA-PSK wpa_passphrase=00000000 3. Disable wpa_supplicant. # sudo systemctl stop wpa_supplicant.service # sudo systemctl mask wpa_supplicant.service 4. Detach from network manager. # sudo nmcli d set wlan0 managed no 5. Use hostapd to create an access point. # hostapd /etc/hostapd/hostapd.conf Connecting through Bluetooth This feature allows the system to connect to Bluetooth devices such as a Bluetooth keyboard.
  • Page 78 Switching between WLAN and Bluetooth modes 1. Adjust the mode from default 13 to 14 in /etc/modprobe.d/rs9113.conf. # options rsi_sdio dev_oper_mode=14 2. Verify the operation mode. # cat /sys/module/rsi_sdio/parameters/dev_oper_mode Table 25. Operating-mode values for WLAN and Bluetooth Operating mode BT EDR Clients supported value Bluetooth Serial Port Profile (SPP)

  • Page 79: Restoring Ubuntu Server

    Prerequisites: ● Service Tag of the Edge Gateway ● A Windows computer with administrator rights and at least 8 GB of available storage space to download the Dell ISO recovery image ● A blank USB flash drive with at least 8 GB of storage space. These steps delete all data on the USB flash drive.

  • Page 80: Chapter 6: Accessing And Updating Bios

    1. Connect a display, keyboard and mouse to the system. 2. Power on the Edge Gateway. 3. During POST, when the Dell logo is displayed, watch for the F2 prompt to appear, and then press F2 immediately. Updating BIOS NOTE: Download the latest BIOS file from dell.com/support/home/us/en/19/product-support/product/dell-edge-...

  • Page 81: Flashing The Bios From A Usb Flash Drive

    The fwupgmgr tool or commands are used to update the UEFI BIOS on the system. The UEFI BIOS for this platform is released through online Linux Vendor File System (LVFS) based methods Dell recommends that you enable the UEFI Capsule update by default so that it is running in the background to keep the system BIOS up to date.

  • Page 82: Dell Command | Configure (Dcc)

    2. Check the current BIOS details. $sudo uefi-fw-tools.fwupdmgr get-devices 3. Check if the update is available from LVFS service. $sudo uefi-fw-tools.fwupdmgr refresh 4. Download the BIOS from the www.dell.com/support. $sudo uefi-fw-tools.fwupdmgr get-updates 5. Apply the update. $sudo uefi-fw-tools.fwupdmgr update -v 6.

  • Page 83: Default Bios Settings

    For more information about EDM, see www.dell.com/support/home/us/en/19/product-support/product/wyse-cloud-client- manager/research. Default BIOS settings General (BIOS level 1) Table 26. General (BIOS level 1) BIOS level 2 BIOS level 3 Item Default value System Information System Information BIOS Version Not applicable Service Tag...
  • Page 84 Table 26. General (BIOS level 1) (continued) BIOS level 2 BIOS level 3 Item Default value LOM2 MAC Address Not applicable Video Controller Not applicable Video BIOS Version Not applicable Wi-Fi Device Not applicable Celluar Device Not applicable Bluetooth Device Not applicable Boot Sequence Boot Sequence...
  • Page 85 Table 27. System configuration (BIOS level 1) (continued) BIOS level 2 BIOS level 3 Item Default value Enable WLAN/Bluetooth Enabled [Enable/Disable] Enable Dedicated GPS Radio Enabled [Enable/Disable] Enable MEMs Sensor Enabled [Enable/Disable] Watchdog Timer Support Watchdog Timer Support Enable Watchdog Timer Disabled [Enable/Disable] Security (BIOS level 1)
  • Page 86 Table 28. Security (BIOS level 1) (continued) BIOS level 2 BIOS level 3 Item Default value PPI Bypass for Enable Disabled Commands [Enable/Disable] PPI Bypass for Disable Disabled Commands [Enable/Disable] Attestation Enable [Enable/ Enabled Disable] Key Storage Enable [Enable/ Enabled Disable] SHA-256 [Enable/Disable] Enabled...
  • Page 87 Power management (BIOS level 1) Table 31. Power management (BIOS level 1) BIOS level 2 BIOS level 3 Item Default value Auto On Time Auto On Time Time Selection: [HH:MM A/P] 12:00AM Auto On Time (if Wake Period Value Selection: [0-254] Auto-Wake Period (0-254 minutes) Day Selection: [Disabled/...
  • Page 88 Maintenance (BIOS level 1) Table 34. Maintenance (BIOS level 1) BIOS level 2 BIOS level 3 Item Default value Service Tag Service Tag <System Service Tag>, text Not applicable entry capability when blank Asset Tag Asset Tag <System Asset Tag>, text Not applicable entry capability SERR Messages...

  • Page 89: Chapter 7: References

    ● Dell Command | Configure Reference Guide ● Dell Command | Monitor User's Guide ● Dell Command | PowerShell Provider User's Guide For more information on using Dell Data Protection | Encryption see the documentation for the software at www.dell.com/ support/manuals.

  • Page 90: Chapter 8: Appendix

    Use only the supplied or an approved replacement antenna. NOTE: Modifications to the device or use of unauthorized antennas not expressly approved by Dell is the sole responsibility of the user, configurator or operator, who must reassess the equipment in accordance to all applicable international Safety, EMC, and RF standards.

  • Page 91: De-Mounting From Din-Rail Bracket

    Table 37. Mobile broadband auxiliary antenna maximum gain (dBi) (continued) Antenna position—Bent Antenna position—Straight Frequency (MHz) 4G (dBi) 4G (dBi) 1710~1880 1850~1990 1920~2170 Table 38. WLAN/GPS antenna maximum gain (dBi) Antenna position—Bent Antenna position—Straight Frequency (MHz) GPS (dBi) WLAN (dBi) GPS (dBi) WLAN (dBi) Not applicable...

  • Page 92: Ubuntu Core 16

    NOTE: The default user name and password are both admin. Boot up and login—Static IP system configuration NOTE: To help set up the Edge Gateway remotely, the static IP address of Ethernet port two on the Edge Gateway is set to these values at the factory: ●...
  • Page 93 ● Subnet mask: 255.255.255.0 ● DHCP server: Not applicable 1. On the host computer, configure the Ethernet adaptor that is connected to the Edge Gateway with a static IPv4 address under the same subnet. Set the IPv4 address to 192.168.2.x (where x represents the last digit of the IP address, for example, 192.168.2.2).

  • Page 94: Chapter 9: Contacting Dell

    2. Verify your country or region in the drop-down list at the bottom of the page. 3. Select the appropriate service or support link based on your requirement or choose the method of contacting Dell that is convenient for you.
