C o m b i n a t i o n

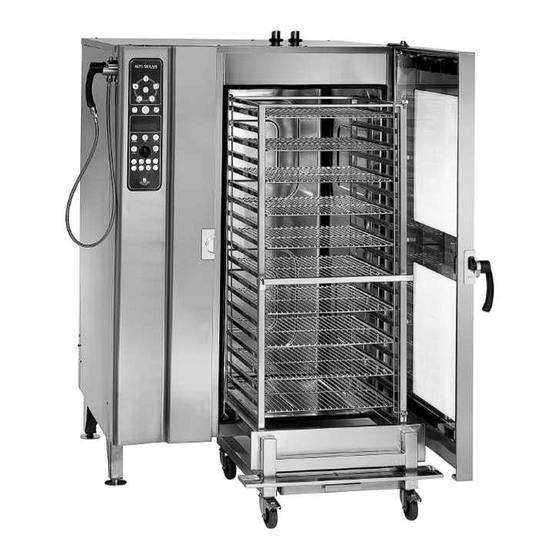

O v e n / S t e a m e r
20•20ES
ELECTRIC
MARI N E
S ERI ES
I N STALLATION
PHONE:
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA
262.251.3800 • 800.558.8744
/
FAX:
262.251.7067 • 800.329.8744
.
.
.
USA
CANADA
U
S
A
ONLY
.
-
.
WWW
ALTO
SHAAM
COM
#7001-20.20
• 06/08
.
.
.
ESM
PRINTED IN U
S
A
Advertisement
Table of Contents
Related Manuals for Alto-Shaam 20 Series
Summary of Contents for Alto-Shaam 20 Series
- Page 1 C o m b i n a t i o n O v e n / S t e a m e r 20•20ES ELECTRIC MARI N E S ERI ES I N STALLATION PHONE: W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA 262.251.3800 •...
- Page 2 General Information Delivery / Unpacking ....1. Safety Procedures and Precautions ..2. Specifications Options ......3. 20•20es .
- Page 3 Additional model. Contact the Alto-Shaam service manuals are available from the Alto-Shaam department if you have any questions concerning service department. installation, operation, or maintenance.
-
Page 4: Safety Procedures And Precautions
SAFETY PROCEDURES AND PRECAUTIONS Knowledge of proper procedures is essential to the 1. This appliance is intended to cook, hold or safe operation of electrically and/or gas energized process foods for the purpose of human equipment. In accordance with generally accepted consumption. - Page 5 C O M M O N S P E C I F I C A T I O N S ® COMBITHERM CombiGuard™ Triple-Guard Water Filtration System FI-23014 INCLUDES CARTRIDGE CombiGuard™ Replacement Filter FI-26356 Fry Basket, 12" 20" (325mm x 530mm) BS-26730 Grilling Grate, 12"...
- Page 6 WAT E R R E Q U I R E M E N T S WAT E R Q U A L I T Y M I N I M U M S TA N D A R D S USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S 3/4" NPT*...
- Page 7 L O C AT I O N S I T E & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM AVERTISSEMENT: UNE INSTALLATION, UN IMPROPER INSTALLATION, ADJUSTMENT, ADJUSTEMENT, UNE ALTERATION, UN SERVICE ALTERATIONS, SERVICE, OR MAINTENANCE...
-
Page 8: Ventilation Requirements
L O C AT I O N S I T E & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM VENTILATION REQUIREMENTS U T I O N A steam ventilation hood is mandatory for the operation of the oven. -
Page 9: Positioning Requirements
L O C AT I O N S I T E & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM POSITIONING REQUIREMENTS K In order to ensure proper ventilation, a minimum distance of at least 6-inches (152mm) must be kept from the control panels side (left) of the oven and any adjoining surfaces. - Page 10 E L E C T R I C A L & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM N G E R N G E R ENSURE POWER SOURCE To avoid electrical shock, this appliance MUST be adequately...
-
Page 11: Risk Of Electric Shock
I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM M O B I L E E Q U I P M E N T R E S T R A I N T Any appliance that is not furnished with a power supply cord but includes a set of casters must be installed with a tether. - Page 12 Since water quality is Alto-Shaam Combitherm warranty. an important issue, Alto-Shaam is committed to Alto-Shaam will continue our efforts to provide provide as much information as possible to help viable solutions to ease the impact of water quality protect the investment made in this equipment.
-
Page 13: Water Drain
WAT E R S U P P LY & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM Flush the water line at the installation site before connecting the oven to the water supply. - Page 14 MUST BE IN THE OPEN POSITION WHEN THE OVEN IS BEING USED. ITEM FI-23014 Alto-Shaam now offers an improved water filtration system for Combitherm®. The CombiGuard™ triple-guard water filtration system filters dirt, sediment, and other debris as small as 1/2 micron. This system also significantly reduces chlorine content to protect against corrosive chlorine compounds.
- Page 15 WAT E R S U P P LY & I N S TA L L AT I O N R E Q U I R E M E N T S ® COMBITHERM WAT E R D R A I N A G E The oven must discharge through an indirect waste pipe by means of an air gap.
- Page 16 IS A FILTER SYSTEM INSTALLED pitch to 10' (305cm) of drain line. ON THIS UNIT? IMPORTANT: Alto-Shaam has listed Water Quality Requirements in the STORE HAS SEEN THIS installation manual for this equipment. It is the responsibility of the end user...
-
Page 17: S E R V I C E M O D E A N D E R R O R C O D E S
E R R O R C O D E S ® COMBITHERM C O N T R O L R E S E T There is a remote possibility in the day-to-day operation of the Combither m that the control could lock or freeze. - Page 18 E R R O R C O D E S ® COMBITHERM ERROR CODES AND REASONS (continued) Error Display Shows When does the error occur? Possible reason Code Excess Steam Gen Temp • Problem with water level probe. ES units only: Activated if the temperature of the steam •...
- Page 19 E R R O R C O D E S ® COMBITHERM ERROR CODES AND REASONS (continued) Error Display Shows When does the error occur? Possible reason Code Probe Short to Frame Activated if one or more of the temperature •...
- Page 20 E R R O R C O D E S ® COMBITHERM E M E R G E N C Y O P E R A T I O N In the event of an error code, the Combitherm may be operated on a limited basis. Error conditions under which continued operation can be conducted are indicated by “Yes”...
- Page 21 SHALL ALTO-SHAAM BE LIABLE FOR LOSS OF USE, LOSS OF REVENUE OR PROFIT, OR LOSS OF PRODUCT, OR FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES. No person except an officer of Alto-Shaam, Inc. is authorized to modify this warranty or to incur on behalf of Alto-Shaam any other obligation or liability in connection with Alto-Shaam equipment.
- Page 22 T R A N S P O R TAT I O N D A M A G E A N D C L A I M S ® COMBITHERM All Alto-Shaam equipment is sold F.O.B. shipping point, and when accepted by the carrier, such shipments become the property of the consignee. Should damage occur in shipment, it is a matter between the carrier and the consignee.
