Alto-Shaam 10.10ESG Installation Manual
  1. Manuals
  2. Brands
  3. Alto-Shaam Manuals
  4. Oven
  5. COMBITOUCH SERIES 10 10ESG
  6. Installation manual
Alto-Shaam 10.10ESG Installation Manual

Alto-Shaam 10.10ESG Installation Manual

Es gas series combination oven/steamer
Hide thumbs Also See for 10.10ESG:

Advertisement

Quick Links

Download this manual See also: Technical & Service Manual
C o m b i n a t i o n
O v e n / S t e a m e r
I N STALLATION

Advertisement

loading

Related Manuals for Alto-Shaam 10.10ESG

Summary of Contents for Alto-Shaam 10.10ESG

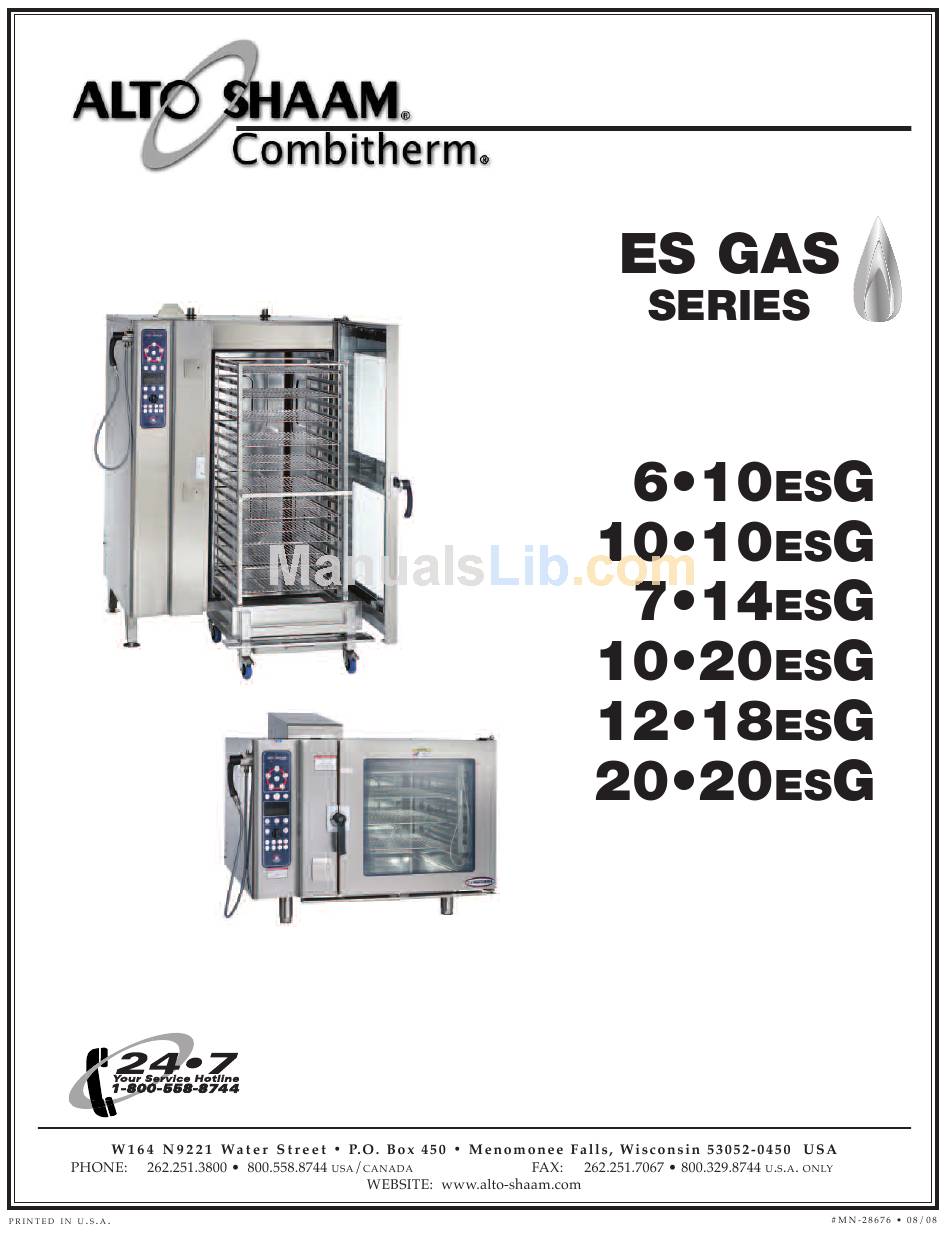

  • Page 1 C o m b i n a t i o n O v e n / S t e a m e r I N STALLATION...
  • Page 3 Additional manuals are available from the Alto-Shaam service department. 3. Remove all protective plastic film, packaging materials, and accessories from the appliance before connecting electrical power.

  • Page 4: Safety Procedures And Precautions

    SAFETY PROCEDURES AND PRECAUTIONS Knowledge of proper procedures is essential to the safe operation of electrically and/or gas energized equipment. In accordance with generally accepted product safety labeling guidelines for potential hazards, the following signal words and symbols may be used throughout this manual. D A N G E R Used to indicate the presence of a hazard that WILL cause severe...
  • Page 5 ® ¯ IEEE 802.11b ST ND RDS...
  • Page 6 11-1/2" (292mm) 5-1/2" (140mm) 15-5/8" (396mm) 3-5/8" Water Drain (92mm) (Side Back) Treated Water Intake (Bottom) Steam Vent Untreated Water Intake (Bottom) (Top) Electrical Gas Connection Connection (Bottom) (Bottom) 2" (50mm) 47-5/16" (1201mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE 42-1/16"...
  • Page 7 ® 11-1/2" (292mm) 5-1/2" (140mm) 15-5/8" (396mm) 3-5/8" Water Drain (92mm) (Side Back) Treated Water Intake (Bottom) Steam Vent Untreated Water (Top) Intake (Bottom) Electrical Gas Connection Connection (Bottom) (Bottom) 2" (50mm) 47-5/16" (1201mm) 18" (457mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE 42-1/16"...
  • Page 8 27-9/16" (700mm) 4-3/8" (110mm) 3-9/16" (89mm) Electrical Connection (Bottom) Steam Vent (Top) Gas Connection Untreated Water Intake (Bottom) (Bottom) Treated Water Intake (Bottom) 2" (50mm) 4-5/8" (116mm) 55-1/16" (1398mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE NOT YET AVAILABLE NOT YET AVAILABLE...
  • Page 9 ® 20-5/16" 4-3/8" (110mm) (515mm) 3-9/16" Water Drain (89mm) (Side Back) Electrical Connection (Bottom) Steam Vent (Top) Untreated Water Intake (Bottom) Treated Water Gas Connection Intake (Bottom) (Bottom) 4-5/8" (116mm) 2" (50mm) 55-7/16" (1407mm) 18" (457mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE 49-13/16"...
  • Page 10 20-5/16" 4-3/8" (110mm) (515mm) 3-9/16" Water Drain (89mm) (Side Back) Electrical Connection (Bottom) Steam Vent (Top) Untreated Water Intake (Bottom) Treated Water Gas Connection Intake (Bottom) (Bottom) 4-5/8" (116mm) 2" (50mm) 55-7/16" (1407mm) 18" (457mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE 49-13/16"...
  • Page 11 ® 20-1/4" 4-3/8" (110mm) (514mm) 3-9/16" Water Drain (89mm) (Side Back) Steam Electrical Connection Vents (Bottom) (Top) Gas Exhaust (Top) Untreated Water Intake (Bottom) Treated Water Gas Connection Intake (Bottom) (Bottom) 4-5/8" (116mm) 2" (50mm) 55-7/16" (1407mm) 18" (457mm) PLUS SERVICE ACCESS F R O M H E AT P R O D U C I N G E Q U I P M E N T OTHER VOLTAGES AVAILABLE 45-3/16"...
  • Page 12 N G E R IMPROPER INSTALLATION, ALTERATION, ADJUSTMENT, SERVICE, OR MAINTENANCE COULD RESULT IN SEVERE INJURY, DEATH OR CAUSE PROPERTY DAMAGE. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT. N G E R AVERTISSEMENT : UNE INSTALLATION, UN AJUSTEMENT, UNE ALTÉRATION, UN SERVICE OU UN ENTRETIEN NON CONFORME AUX NORMES PEUT CAUSER...
  • Page 13 ® U T I O N TO PREVENT PERSONAL INJURY, USE CAUTION WHEN MOVING OR LEVELING THIS APPLIANCE. MINIMUM SERVICE ACCESS RECOMMENDED FROM HEAT PRODUCING EQUIPMENT FOR AIR MOVEMENT FOR AIR MOVEMENT...
  • Page 14 ®...
  • Page 15 ® N G E R Installation, air adjustment and/or service work must be in accordance with all local codes and must be performed by a certified service technician qualified to work on gas appliances. U T I O N To prevent malfunction or cause negative back draft, DO NOT obstruct exhaust flues or attach any flue extension that will impede proper...
  • Page 16 OTHER VOLTAGES AVAILABLE N G E R ELECTRIC L GROUNDING INSTRUCTIONS: This appliance is equipped with a three-pronged (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.

  • Page 17: Risk Of Electric Shock

    ® R N I N G F ILURE TO PROPERLY INST LL THE DRIP TR Y C N OR WILL C USE M JOR EQUIPMENT D M GE WILL RESULT IN LE K GE H Z RD TH T C N C USE PERSON L INJURY.
  • Page 18 CONNECTING TO THE WRONG GAS SUPPLY COULD RESULT IN FIRE OR AN EXPLOSION CAUSING SEVERE INJURY AND PROPERTY DAMAGE. TO AVOID SERIOUS PERSONAL INJURY, installation of this appliance must conform to local, state, and national codes; the current edition of the American National Standard Z223.1, National Fuel Gas Code, and all local municipal building codes.
  • Page 19 ® N G E R Installation, air adjustment and/or service work must be in accordance with all local codes and must be performed by a certified service technician qualified to work on gas appliances. INCORRECT DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.
  • Page 20 ® R N I N G G S PIPING MUST NEVER BE INST LLED TO RUN UNDER THE BURNER...
  • Page 21 ® N G E R NEVER USE N OPEN FL ME TO LE K TEST. N G E R BEFORE ST RTING THE PPLI NCE, M KE CERT IN YOU DO NOT DETECT THE ODOR OF G S. IF THE ODOR OF GAS IS DETECTED: •...
  • Page 22 USE A DRINKING QUALITY, COLD WATER SUPPLY ONLY high temperature ALTO-SHAAM COMBITHERM WATER QUALITY MINIMUM STANDARDS CONTAMINANT Free Chlorine Hardness Chloride Alkalinity Total Dissolved Solids (tds) TO PREVENT WATER PIPES OR HOSES FROM BURSTING, INCOMING WATER SUPPLY SHOULD BE TURNED OFF WHEN THE APPLIANCE IS NOT IN USE.
  • Page 23 ® ® COLD...
  • Page 24 ® ITEM FI-23014 (FI-26356)
  • Page 25 ® NOTE: 2" (51mm) Air Gap 1-1/4" (32mm) diameter NPT WASTE PIPE 1-1/2" to 2" minimum diameter (c. 38mm to 51mm)
  • Page 26 VOLTAGE: ______________ ¯ PHASE: ______________ BREAKER SIZE: ______________ ®...
  • Page 27 ® When the oven malfunctions, an error code will appear in the display. When the oven fault is corrected, the Combitherm will return to normal Operation.
  • Page 28 ®...
  • Page 29 ®...
  • Page 30 ® When the oven malfunctions, an error code will appear in the display. When the oven fault is corrected, the Combitherm will return to normal Operation.
  • Page 31 ® THIS WARRANTY DOES NOT APPLY TO: ALTO-SHAAM COMBITHERM WATER QUALITY MINIMUM STANDARDS CONTAMINANT INLET WATER REQUIREMENTS ( UNTREATED WATER...
  • Page 32 ® Driver refuses to allow inspection of containers for visible damage.
