© Panduit Corp. 2014
Note: Assembly instructions shown are of a (9" tall) shelf. The assembly of a 144-port 5-1/4" tall shelf is identical except
where noted.

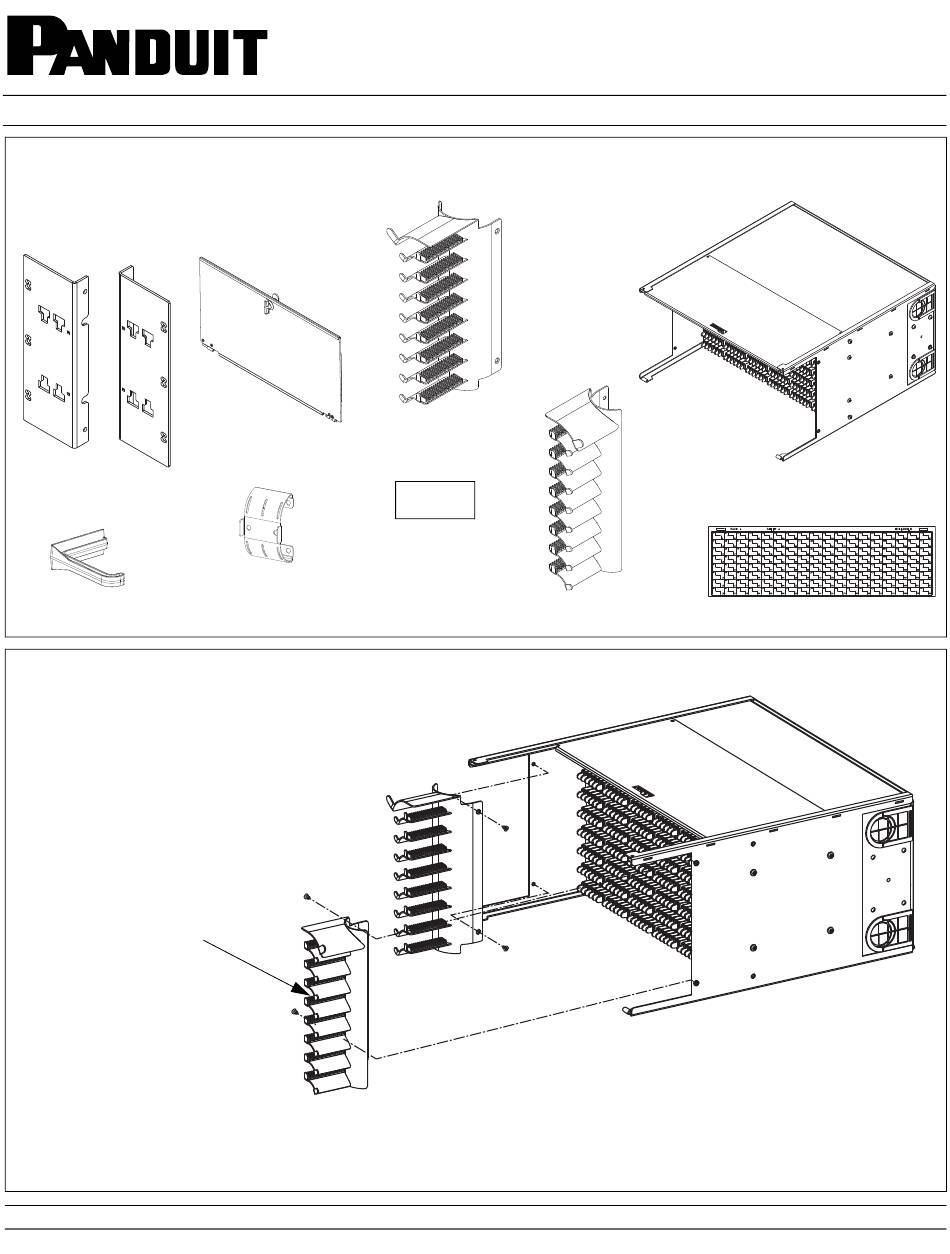

Components:
(2) Mounting Brackets
(2) L-Rings
Fanning Guide Attachment
Fanning Guide
Step 1
Attach the right and left-handed fanning guides to the sides of the shelf using #6-32 flat screws provided.
For Technical Support: www.panduit.com/resources/install_maintain.asp
Part Numbers: HDFE288SC, HDFE288LC, HDFE144SC, HDFE144LC,
HDFE18FAPBL, HDFE144SCBL, HDFE9FAP, HDFE18FAP, HDFE9FAPBL
INSTALLATION INSTRUCTIONS
(1) Left Fanning Guide
(1) Front Door
(1) IFC Radius Clip
Opticom HD Shelf Assembly
(1) HDFE288KIT
(1) Right Fanning Guide
Page 1 of 4
(1) Opticom HD Enclosure
Port Id Label
FS102
Advertisement
Related Manuals for Panduit HDFE288SC
Summary of Contents for Panduit HDFE288SC
- Page 1 Opticom HD Shelf Assembly Part Numbers: HDFE288SC, HDFE288LC, HDFE144SC, HDFE144LC, HDFE18FAPBL, HDFE144SCBL, HDFE9FAP, HDFE18FAP, HDFE9FAPBL INSTALLATION INSTRUCTIONS FS102 © Panduit Corp. 2014 Note: Assembly instructions shown are of a (9" tall) shelf. The assembly of a 144-port 5-1/4" tall shelf is identical except where noted.
- Page 2 INSTALLATION INSTRUCTIONS FS102 © Panduit Corp. 2014 Mounting Bracket Attachment Mounting Bracket 19" mounting 23" mounting Step 2 For 23" mounting, attach the leg of the mounting bracket to the sides of the shelf (flange facing towards rear of shelf) using the #10-32 x 1/4"...
- Page 3 INSTALLATION INSTRUCTIONS FS102 © Panduit Corp. 2014 IFC Cable Entry Radius Clip Attachment IFC Radius Clip IFC Entry Ports 1/4 Turn Latch Step 4 On 9" shelves, IFC entry ports are provided at (4) locations, 2 each per side. On 5-1/4" shelves, IFC entry ports are provided at (2) locations, 1 each per side.
- Page 4 INSTALLATION INSTRUCTIONS FS102 © Panduit Corp. 2014 Connector Shelf Installation Step 5 Slide the assembled connector shelf into position on the HDFDF2384W bay. The position on the rack will be determined by the location of the rear troughs and shelf pass-through troughs. The shelves are designed to be located just above the pass-through troughs.
