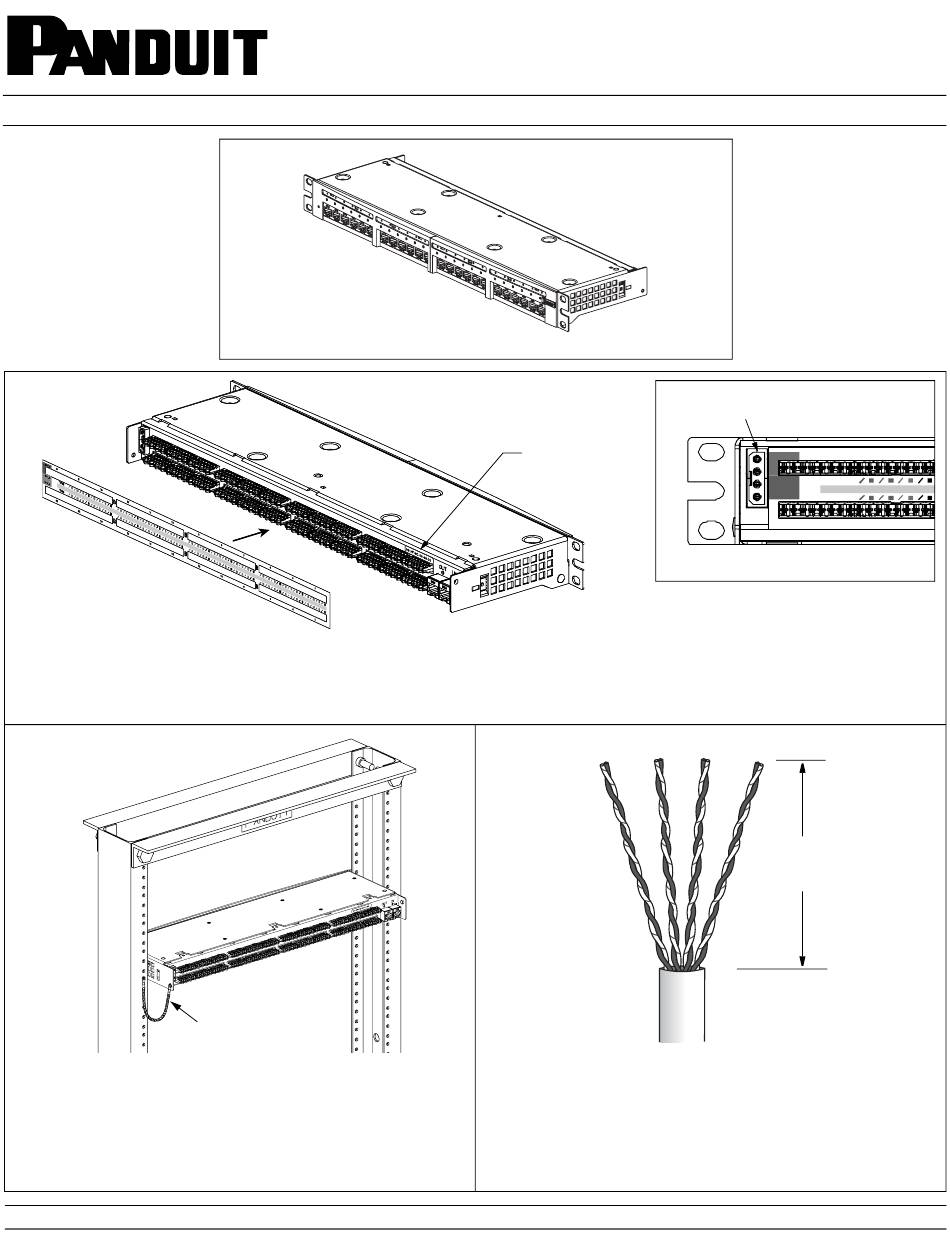

Panduit DPOE24U1XG Installation Instructions

© Panduit Corp. 2010
1.
Record the MAC address on the Panduit DPoE Installation Worksheet (Panduit part no. PN377*). Install the wiring label on the back of
the panel over the rows of connector blocks. Be sure to install the label with the proper wiring color code facing out and ensure that the
power scheme on the label is in line with the power connector on the panel.
* Denotes revision letter.
2.
Using a screw from the metric thread screw set denoted by
"01881-39," attach the green and yellow striped grounding strap to
the panel via the hole nearest the power connector. Next, install the
panel onto a grounded rack using the appropriate screw set
provided which ensures proper grounding between the panel and
the rack. Finally, attach the loose end of the grounding strap to the
rack within the same position as the panel.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
DPOE24U1XG

Grounding Strap

DPoE 1Gig Power Patch Panel
Part Number: DPOE24U1XG
MAC Address
Label
3.
Remove 1" (25.4mm) of cable jacket. Caution: Do not damage
conductors. Fan out all four twisted pairs in the specified wiring
sequence provided in the following section.
Page 1 of 2

Power Connector

23
- 48 V_A
- 48 V_B T568A
RTN_B
T568A
24
1"
(25.4 mm)
PN426G
21
22
