© Panduit Corp. 2010
Contents:
1 - FIBER TRAY (HOUSING & DRAWER)
6 - #12-24 x 1/2" SCREWS
6 - M6 x 1.0 x 16 SCREWS
2 - STRAIN RELIEF BRACKETS
2 - #10-32 BLACK HEX NUTS
WARNING: UNMATED CONNECTORS MAY EMIT INVISIBLE LASER RADIATION. DO NOT LOOK DIRECTLY INTO THE END OF THE
CONNECTOR. DO NOT INSPECT WITH MAGNIFYING DEVICES. MAINTAIN CAP ON UNMATED CONNECTORS.
CAUTION:
Fiber optic cable is sensitive to excessive pulling, bending and crushing forces. Consult the manufacturer's cable specification sheet for the
specific cable in use.
Follow TIA/EIA-568A, 569, 606, and 607 installation guidelines where applicable.
Care should be taken when opening and closing fully loaded drawer in order to protect fiber components.
Compliance with local and national requirements for laser safety must be verified in end use application of the product. Requirements such
as found in IEC 60825-2 may be applicable. A laser hazard warning label is included in product accessory kit for use as necessary.

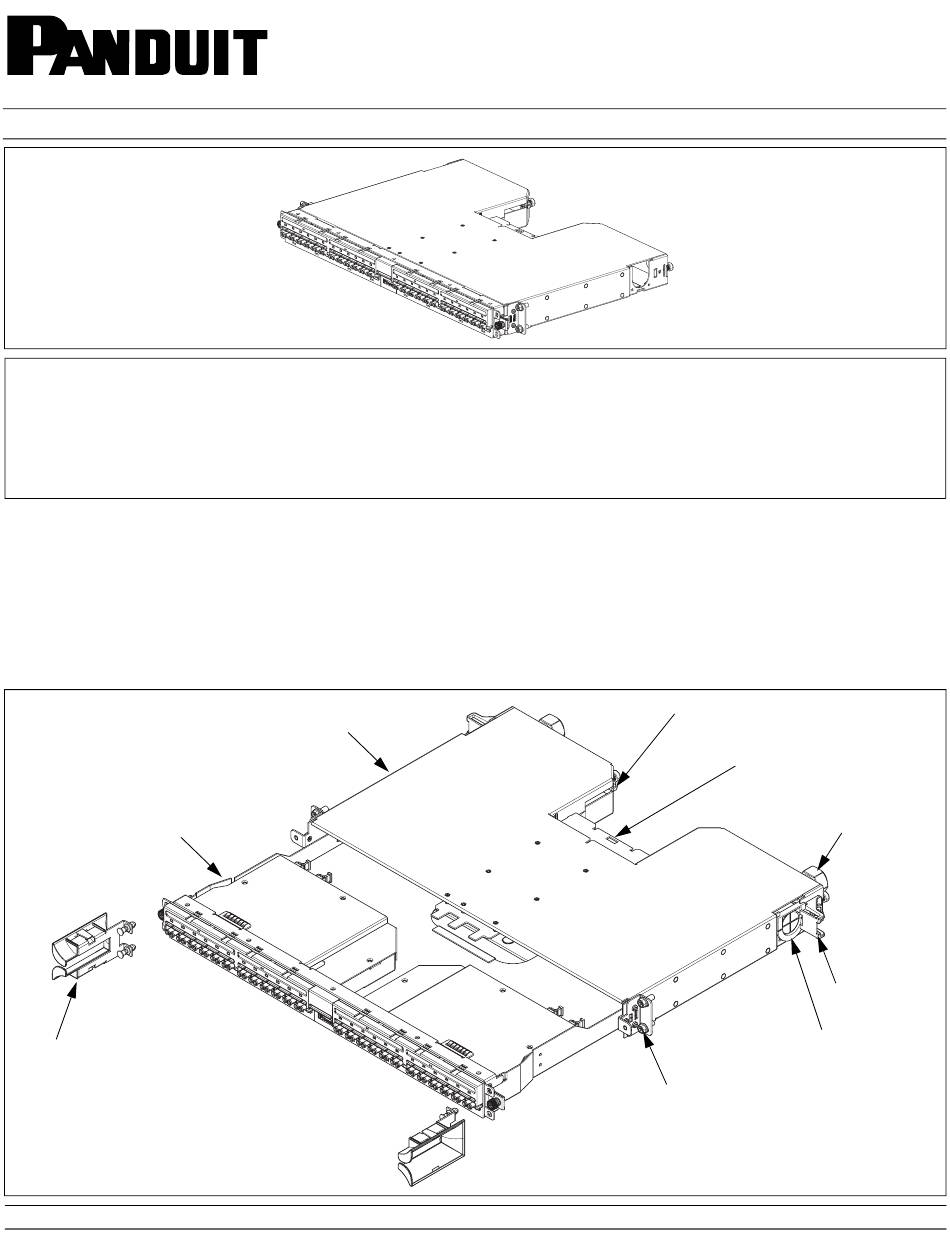

ASSEMBLY VIEW
Drawer
Bend Radius
Control Clips
For Technical Support: www.panduit.com/resources/install_maintain.asp
PanView iQ (PViQ) Fiber Tray
Part Numbers: PVQ-FMTMTP-9, PVQ-FMTMTP-ZX
INSTALLATION INSTRUCTIONS
2 - #10-32 x 5/16" BLACK SCREWS
2 - CABLE ENTRY GROMMETS
2 - BEND RADIUS CONTROL CLIPS
2 - ADHESIVE BACKED MOUNTS
4 -TAK-TYS, 6" PCS.
Housing
Page 1 of 6
4 - CABLE TIES
1 - CAUTION LABEL
2 - LASER WARNING LABELS
1 - ULTIMATE ID LABEL COVER KIT
PM Power Supply Cord
Strain Relief
Integrated PM/EM
Mounting Bracket
PG Glands
(not included)
Strain Relief
Brackets
Grommets
Mounting Screws
PN537
Advertisement
Related Manuals for Panduit PVQ-FMTMTP-9
Summary of Contents for Panduit PVQ-FMTMTP-9
- Page 1 PanView iQ (PViQ) Fiber Tray Part Numbers: PVQ-FMTMTP-9, PVQ-FMTMTP-ZX INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 Contents: 1 - FIBER TRAY (HOUSING & DRAWER) 2 - #10-32 x 5/16" BLACK SCREWS 4 - CABLE TIES 6 - #12-24 x 1/2" SCREWS...
- Page 2 INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 1. Install the Grommets onto the Housing Install prepared grommets Note: For rear cable entry do not cut slots into the grommets. For side cable entry, cut slots into the grommets just large enough for the cable to fit through.
- Page 3 INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 4. Install the Strain Relief Brackets Note: Steps 4 and 5A are for side cable entry. For rear cable entry, see step 5B. #10-32 screw #10-32 hex nut Install the strain relief brackets on both sides.
- Page 4 INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 6. Remove Blank Interface Unit from Drawer and replace with PM/EM Interface Unit Note: It is recommended that this step be completed prior to fiber termination. NOTE: To remove any Interface Unit, depress the locking tabs Be sure to match from the rear of the panel (upper right &...
- Page 5 INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 8. Install the Drawer into the Housing Guide the hinge pins along the curved path Note: Cables omitted from views for clarity. Hinge pin Make sure to keep the drawer level with the housing.
- Page 6 INSTALLATION INSTRUCTIONS PN537 © Panduit Corp. 2010 10. Attach the Bend Radius Control Clips Depress the two plungers to lock the clip into place. Make sure the two plungers are pulled back in the non- locked position. 12. Install the Ultimate ID Labels and Label Covers...
