© Panduit Corp. 2014

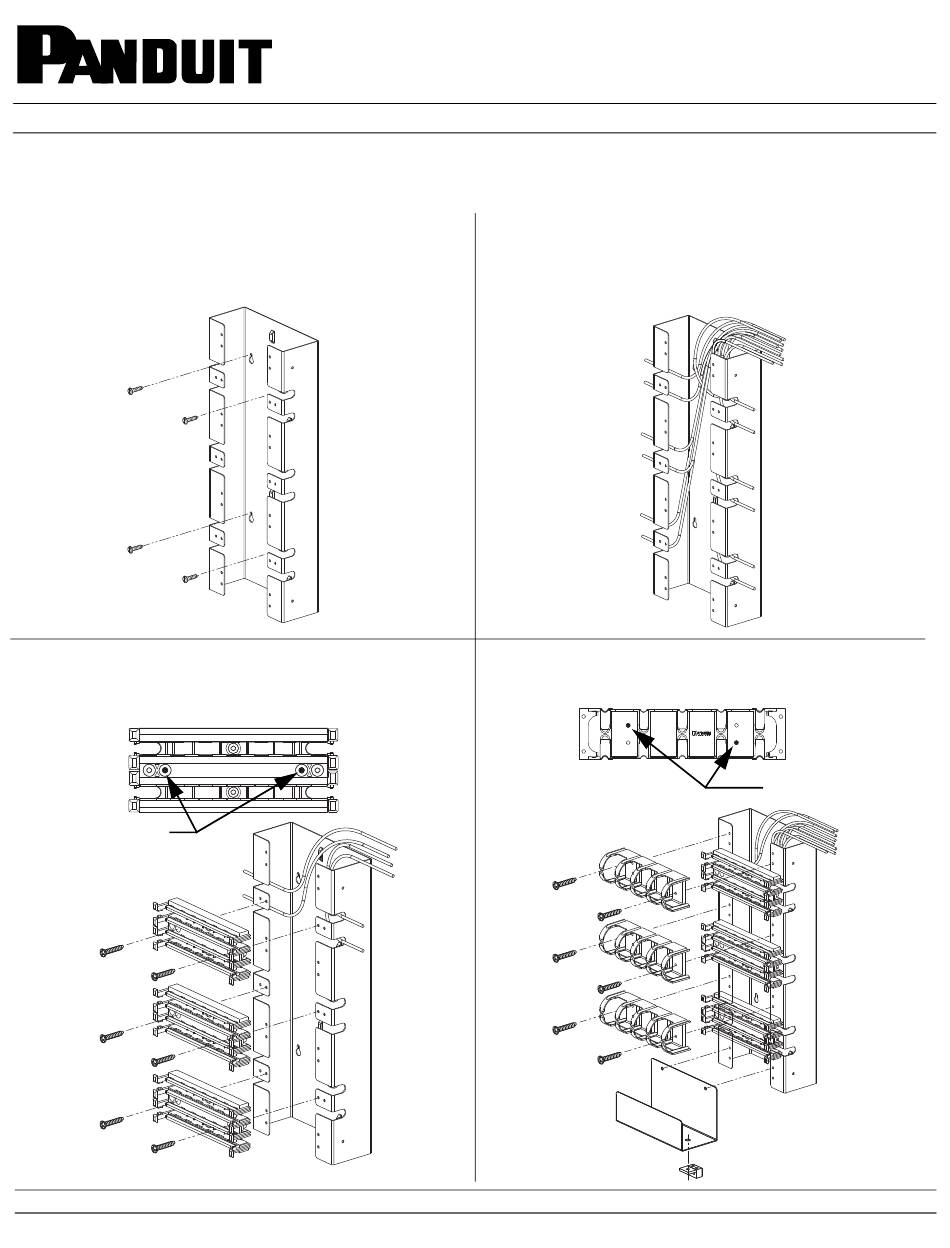

1. Mount tower to wall using #12 wood screws (not provided) or
equivalent. Some applications will require different mounting
hardware. Ensure that the bottom of the tower is at least 8" from
the floor to provide space for horizontal cable manager trough.
3. Position base over slots in tower and secure with two #12
sheet metal screws (supplied). Place conductors into index
strip and install connecting blocks as per instruction sheet
PN153* (provided).
SCREW HERE
* Denotes instruction sheet revision letter.
For Technical Support: www.panduit.com/resources/install_maintain.asp
INSTALLATION INSTRUCTIONS
CABLE REQUIREMENT: Terminates most 22-26 AWG solid or stranded
IWC wire with a 0.050" (1.27mm) max. o.d., either PVC or Plenum rated.
GP6 PLUS Standard Density Tower Kit
Part Number: GPKT724Y
2. Route cable bundle into tower and fan out individual cables
into their appropriate positions through the cutouts provided
along the tower leaving 12" to 18" of slack. Each cutout
accommodates up to 6, 4 pair cables. Use cable ties to secure
bundle to raised tabs on back of tower.
4. Install jumper troughs between bases with two #12 sheet
metal screws (supplied).
Page 2 of 3
PN259D
SCREW HERE
