Edge-Core ECS4100 TIP Series Quick Start Manual

Quick Star t Guide

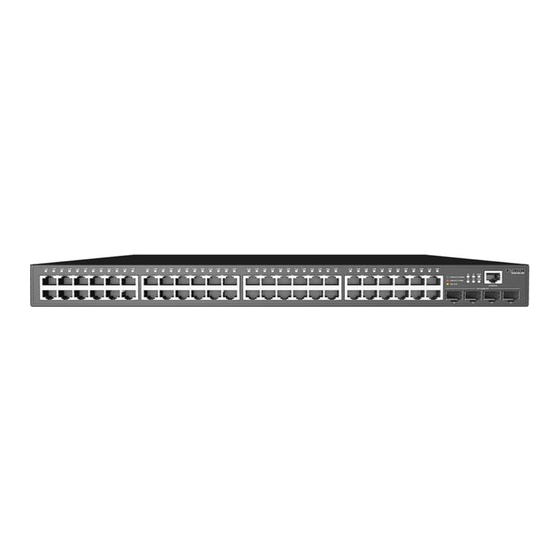

ECS4100 TIP Series Switch
ECS4100-12T TIP/ECS4100-12PH TIP/ECS4100-28TC TIP
ECS4100-28T TIP/ECS4100-28P TIP/ECS4100-52T TIP/ECS4100-52P TIP
1. Unpack the Switch and Check Contents
Rack Mounting Kit—two brackets and eight screws
Four adhesive foot pads
Power Cord—either Japan, US, Continental Europe
or UK
Console Cable—RJ-45 to DB-9
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
The ECS4100 TIP series switches are for indoor use
only.
Note:
For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the switch.
Note:
Other documentation, including the Web
Management Guide, and CLI Reference Guide, can be
obtained from www.edge-core.com.
2. Mount the Switch
2
1 Attach the brackets to the switch.

ECS4100-12T TIP
ECS4100-12PH TIP
ECS4100-28TC TIP
ECS4100-28T TIP
ECS4100-28P TIP
ECS4100-52T TIP
ECS4100-52P TIP
1
– 1 –
2 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
Attention: Deux personnes sont nécessaires pour installer
un commutateur dans un bâti : La première personne va
positionner le commutateur dans le bâti, la seconde va le
fixer avec des vis de montage.
Note:
The switch can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.
3. Ground the Switch
1
2
1 Ensure the rack on which the switch is to be mounted is
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to the
grounding point on the rack (no paint or isolating surface
treatment).
2 Attach a lug (not provided) to a #18 AWG minimum
grounding wire (not provided), and connect it to the
grounding point on the switch using a 3.5 mm screw and
washer. Then connect the other end of the wire to rack
ground.
Caution:
The earth connection must not be removed
unless all supply connections have been disconnected.
Attention:
Le raccordement à la terre ne doit pas être
retiré sauf si toutes les connexions d'alimentation ont été
débranchées.
Caution:
The device must be installed in a restricted-
access location. It should have a separate protective
earthing terminal on the chassis that must be permanently
connected to earth to adequately ground the chassis and
protect the operator from electrical hazards.
Attention: L'appareil doit être installé dans un
emplacement à accès restreint. Il doit comporter une borne
de terre de protection distincte sur le châssis, qui doit être
connectée en permanence à la terre pour assurer une mise
à la terre adéquate du châssis et protéger l'opérateur des
risques électriques.
