Edge-Core ECS4125-10P Quick Start Manual

Quick Start Guide

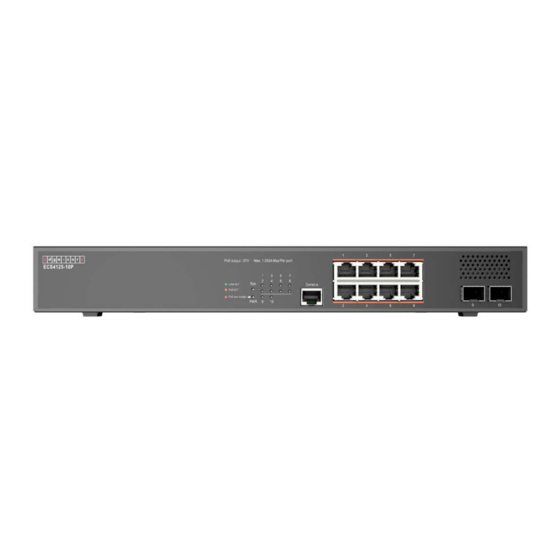

2.5G L2 Ultra PoE++ Switch
ECS4125-10P
1.
2.5G L2 Ultra PoE++ Switch
2. Rack mounting kit—2 brackets and 8 screws
3. Power cord
1. System LEDs
2.
Console port
3.
8 x 10/100/1G/2.5G RJ-45 PoE ports
4. 2 x 1/10G SFP+ ports

System/Port LEDs

1
2
1.
Sys: Green (OK), Blinking Green (booting), Orange (faulf)
2.
PWR: Green (OK), Orange (maximum PoE budget)
3.
RJ-45 1G Ports: Green/Blinking (link/activity), Orange (PoE link)
4.
SFP+ 10G Ports: Green (10G), Orange (1G)

1
3
1 2
3
4

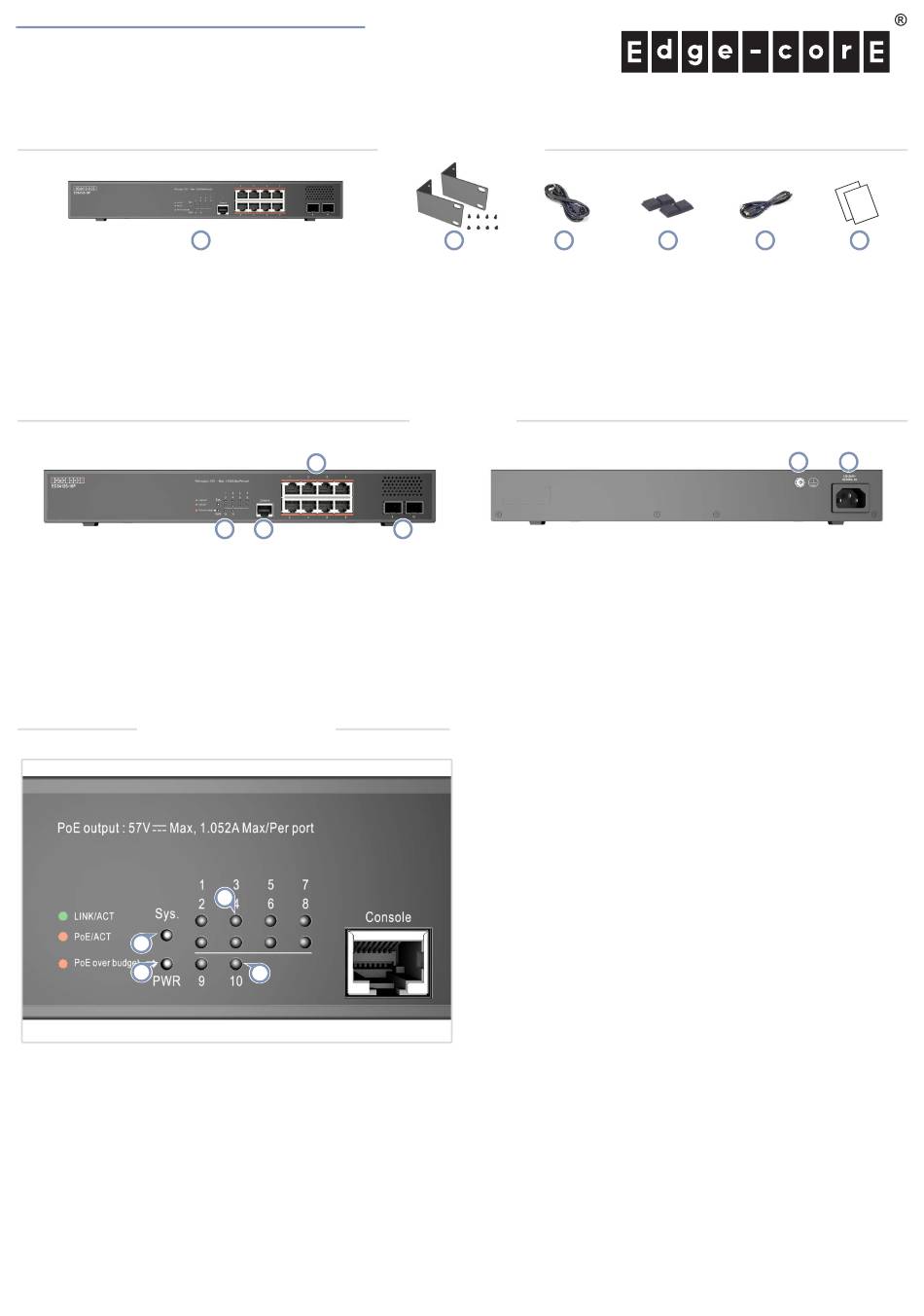

Package Contents

2
4. Four adhesive rubber feet
5.
Console cable—RJ-45 to DE-9
6.
Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information

Overview

4
5. Ground screw
6.
AC power socket
– 1 –
www.edge-core.com
3 4 5 6
5 6
E122022-CS-R01
150200002341A
