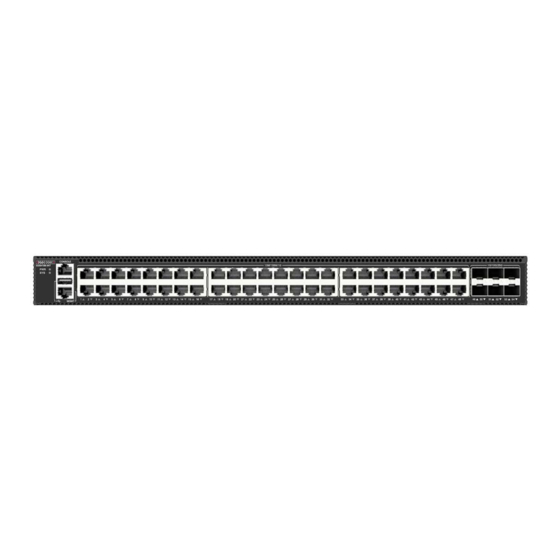

Edge-Core ECS4150-54T Quick Start Manual

Quick Start Guide
L2+/L3 LITE GIGABIT ETHERNET (POE) SWITCH
ECS4150-54T | ECS4150-54P
1. L2+/L3 Lite Gigabit Ethernet (PoE) Switch
2.
Rack mounting kit—2 brackets and 8 screws
3.
Power cord
4.
Console cable—RJ-45 to DE-9
1 3
2
5
1.
System LEDs
2.
Management port, Console port, and USB port
3.
48 x 10/100/1000M RJ-45 ports
4.
6 x 1/10/25G SFP28 ports
5. Ground screw
6.
AC power socket
1
2
3
4
1. PWR: Green (OK)
2.
SYS: Green (OK), Blinking Green (booting)
3.
PoE: Green (OK)
4.
Mode Button: Port LED PoE status on/off

1
ECS4150-54T
System/Port LEDs & Buttons
Package Contents
2 3
5. Grounding wire
6. Six port dust covers
7. Documentation—Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
4 1
3
2
6
7
1.
System LEDs
2.
PoE LED and Mode button
3.
Management port, Console port, and USB port
4.
40 x 10/100/1000M RJ-45 PoE+ (IEEE 802.3at) ports
5. 8 x 10/100/1000M RJ-45 PoE++ (IEEE 802.3bt) ports
6.
6 x 1/10/25G SFP28 ports
7.
Ground screw
8. AC power socket
5. RJ-45 1G Ports: Green/Blinking (link/activity)
6. SFP28 25G Ports: Green/Blinking (link/activity)
– 1 –
www.edge-core.com
4 5 6
ECS4150-54P
4
6
5
7
5 6
8
E082023-AP-R01
150200002558H
