Quick Star t Guide

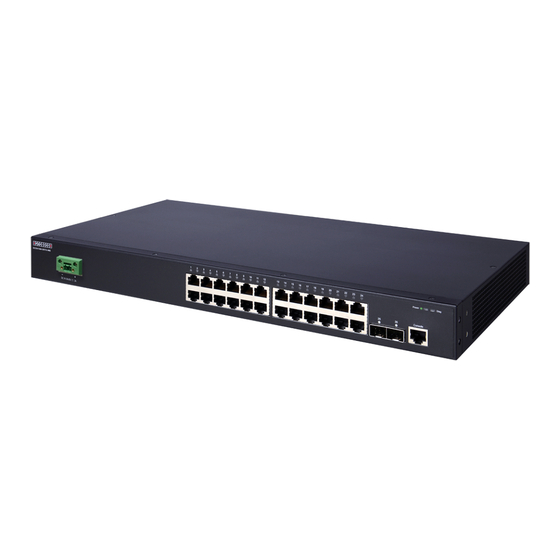

ECS4100 Series Switch

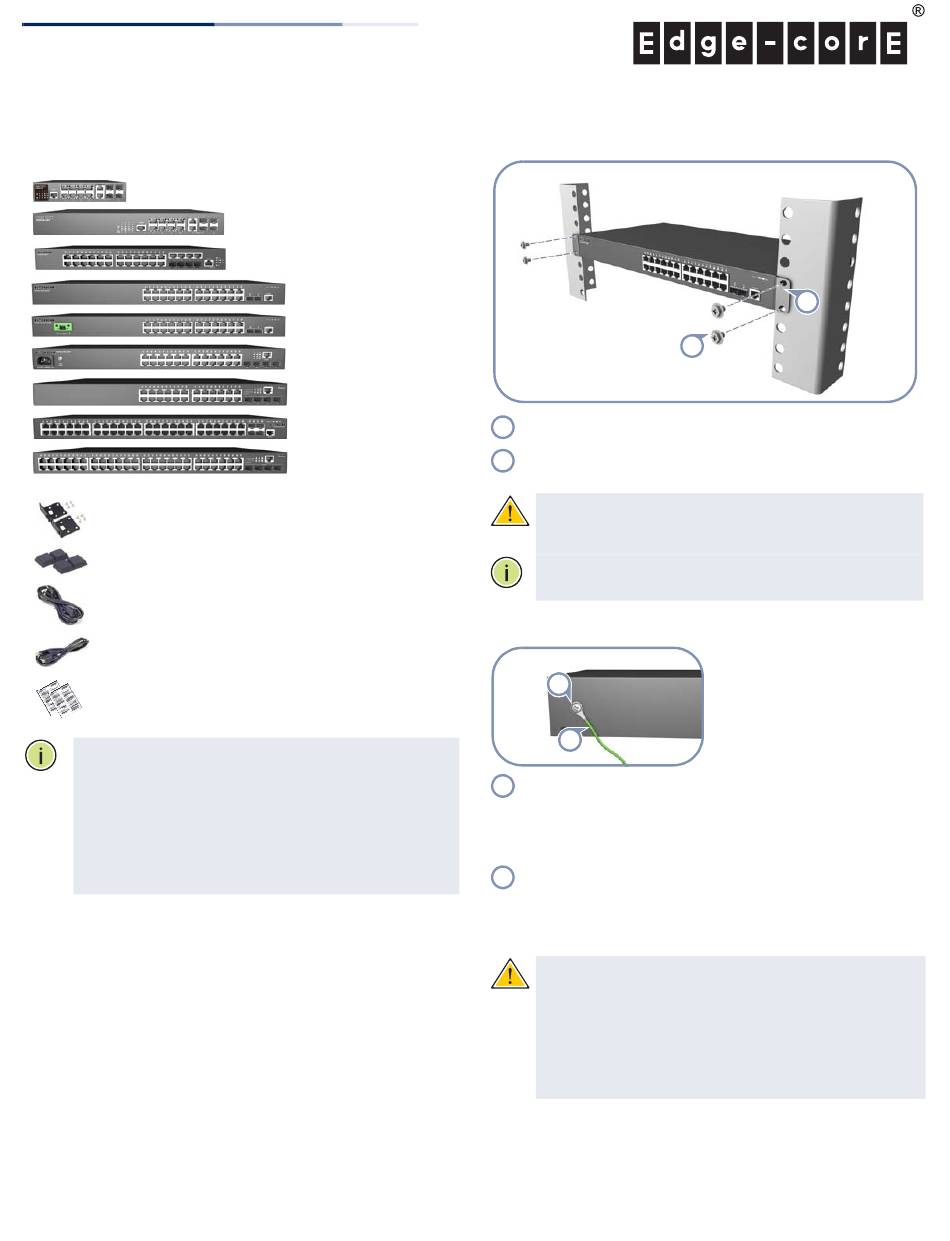

1. Unpack the Switch and Check Contents
Rack Mounting Kit—two brackets and eight screws
Four adhesive foot pads
Power Cord—either Japan, US, Continental Europe
or UK
Console Cable—RJ-45 to DB-9
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information
Note:
The ECS4100 series switches are for indoor use only.
Note:
For safety and regulatory information, refer to the
Safety and Regulatory Information document included with
the switch.
Note:
Other documentation, including the Web
Management Guide, and CLI Reference Guide, can be
obtained from www.edge-core.com.
www.edge-core.com
ECS4100-12T
ECS4100-12PH
ECS4100-28TC
ECS4100-26TX
ECS4100-26TX-ME
ECS4100-28T
ECS4100-28P
ECS4100-52T
ECS4100-52P
– 1 –

2. Mount the Switch

1 Attach the brackets to the switch.
2 Use the screws and cage nuts supplied with the rack to
secure the switch in the rack.
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
Note:
The switch can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.

3. Ground the Switch

1
2
1 Ensure the rack on which the switch is to be mounted is
properly grounded and in compliance with ETSI ETS 300 253.
Verify that there is a good electrical connection to the
grounding point on the rack (no paint or isolating surface
treatment).
2 Attach a lug (not provided) to a #18 AWG minimum
grounding wire (not provided), and connect it to the
grounding point on the switch using a 3.5 mm screw and
washer. Then connect the other end of the wire to rack
ground.
Caution: The earth connection must not be removed
unless all supply connections have been disconnected.
Caution: The device must be installed in a restricted-access
location. It should have a separate protective earthing
terminal on the chassis that must be permanently
connected to earth to adequately ground the chassis and
protect the operator from electrical hazards.
1
2
