Quick Start Guide

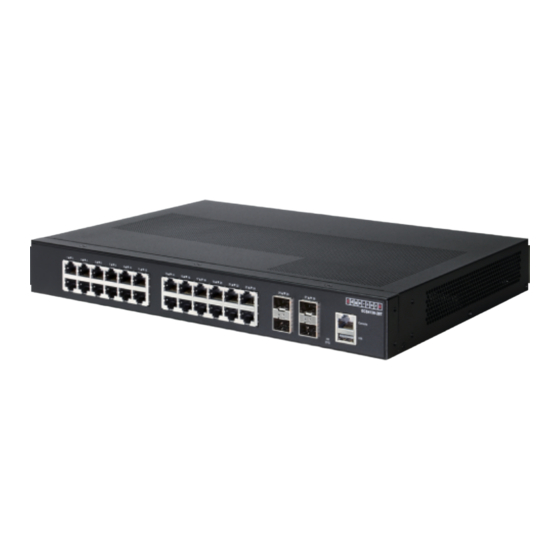

28-Port Gigabit Switch
ECS4130-28T | ECS4130-28T-DC
1
1.
ECS4130-28T or ECS4130-28T-DC
2.
Rack mounting kit — 2 brackets and 8 screws
3.
Console cable — RJ-45 to D-Sub
4.
Power cord (ECS4130-28T only)
1
1.
24 x RJ-45 1 GbE ports
2.
4 x SFP+ 10 GbE ports
3.
RJ-45 Console port
4.
USB Management port
1
2
1.
RJ-45 Port LEDs:
■
1G Link/Activity — Green
■
10/100 Mbps — Amber
2.
SFP+ Port LEDs:
■
10G Link/Activity — Green
■
1G Link/Activity — Amber
3.
System LED:
■
SYS LED — Green (OK), Amber (fault)
*150200002371A_R01*

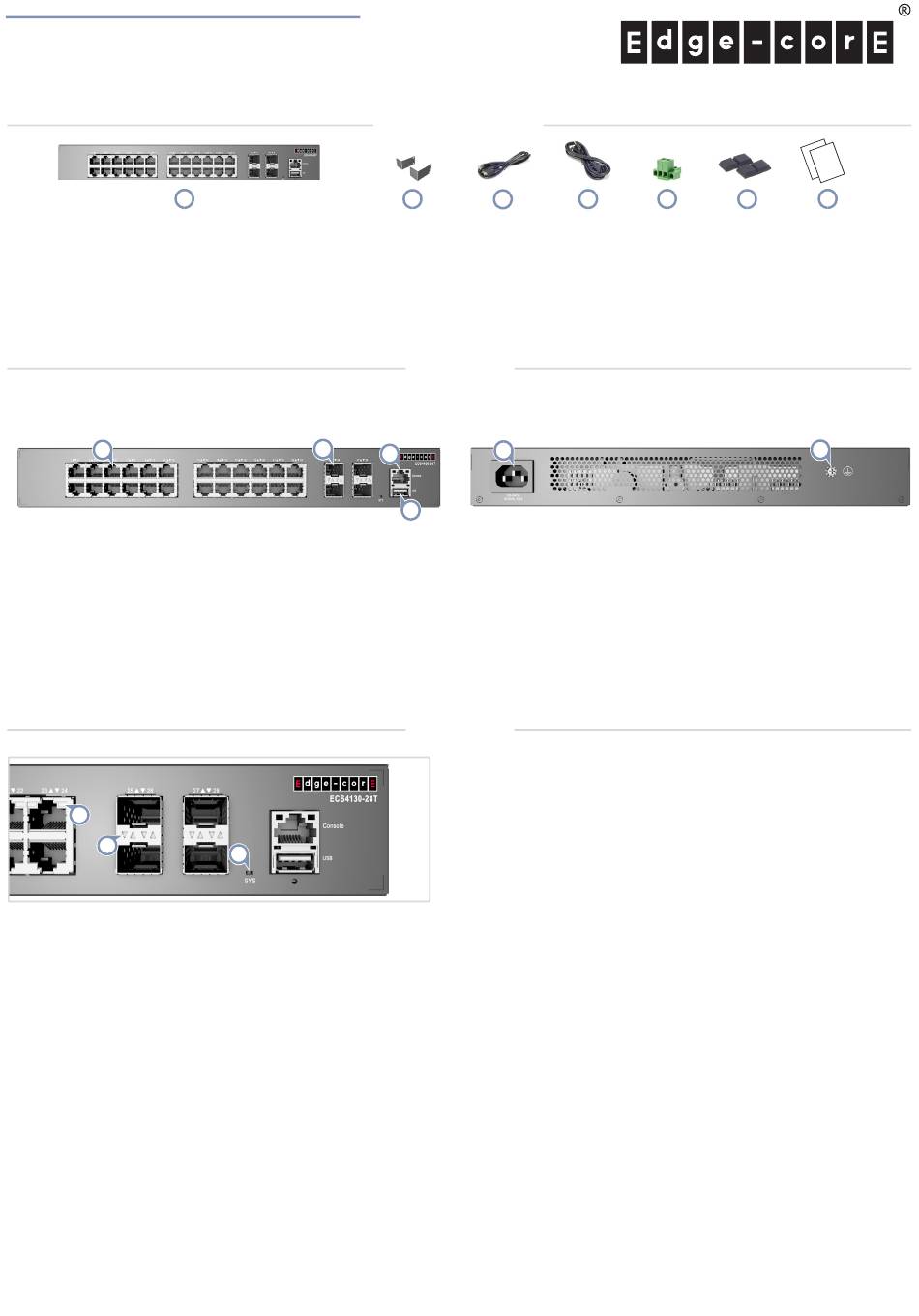

Package Contents
2
2
3
4
3
4
3
5.
DC connector plug (ECS4130-28T-DC only)
6.
Adhesive foot pads
7.
Documentation — Quick Start Guide (this document) and Safety
and Regulatory Information
Overview
5
5.
AC power socket (ECS4130-28T) or DC terminal (ECS4130-28T-
DC)
6.
Grounding point
Front LEDs
– 1 –
www.edge-core.com
5
6
7
6
E042021-MR-R01
150200002371A
Advertisement
Table of Contents
Related Manuals for Edge-Core ECS4130-28T
Summary of Contents for Edge-Core ECS4130-28T
- Page 1 Documentation — Quick Start Guide (this document) and Safety Power cord (ECS4130-28T only) and Regulatory Information Overview 24 x RJ-45 1 GbE ports AC power socket (ECS4130-28T) or DC terminal (ECS4130-28T- 4 x SFP+ 10 GbE ports Grounding point RJ-45 Console port USB Management port...
- Page 2 Use the screws and cage/clip nuts supplied with the rack to secure the switch in the rack. Connect DC Power The ECS4130-28T-DC requires an external 36 V to 60 V DC power source connected to its DC terminal block. Caution: Use a UL/IEC/EN 60950-1 certified power supply to connect to a DC converter.
- Page 3 Storage: 5% to 95% (non-condensing) transceiver ports. Alternatively, connect DAC/AOC cables directly to Power 23 Watts maximum the SFP+ ports. Consumption ECS4130-28T Make Management Connections AC Input 100 to 240 VAC, 50-60 Hz, 0.9 A ECS4130-28T-DC DC Input 36 V to 60 V, 2 A Max...
