Edge-Core ECS4120 Series Quick Start Manual

Quick Star t Guide

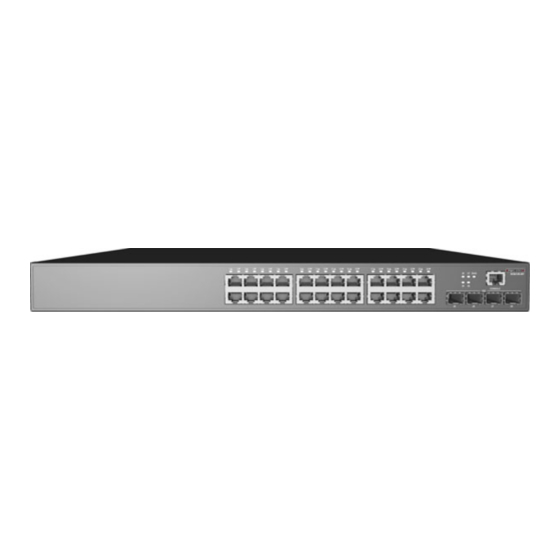

28-Port and 52-Port L2 Gigabit Ethernet Switches
ECS4120 Series
1. Unpack the Switch and Check Contents
28T/28P/52T Mounting Kit — 4 brackets and 10 screws
28F/28F-I /28Fv2/28Fv2-I Mounting Kit — 2 brackets
and 4 screws
Four adhesive foot pads
Power cord — US, Continental Europe, or UK
Console cable — RJ-45 to DB-9
Documentation—Quick Start Guide (this document)
and Safety and Regulatory Information

2. Mount the Switch

a. Mounting in a Rack
2
Attach the brackets to the front of the switch.
1
Use the screws and cage nuts supplied with the rack to
2
secure the switch in the rack.
www.edge-core.com
ECS4120-28T
ECS4120-28P
ECS4120-28F
ECS4120-28F-I
ECS4120-28Fv2
ECS4120-28Fv2-I
ECS4120-52T
1
– 1 –
Caution:
Installing the switch in a rack requires two
people. One person should position the switch in the rack,
while the other secures it using the rack screws.
Note:
The switch can also be installed on a desktop or shelf
using the included adhesive rubber foot pads.
b. Mounting on a Wall
1
2
1
2
Caution:
Wall mount the switch with the network ports
facing down.
Caution:
Wall mount the switch using four brackets
(included) attached to the front and rear of the switch.
Rotate the brackets 90 degrees and attach them to the front
and rear of the switch. Use three screws for the front brackets
1
and two screws for the rear brackets.
In the required location, mark and drill eight holes in the wall
2
for the wall anchors (not included).
Note:
For a wood wall, drilling holes and using wall anchors
is not required.
Mount the switch on the wall and secure it in place using
3
eight #12 wood screws (not included).
3
3
