Installation Manual
Quick Star t Guide

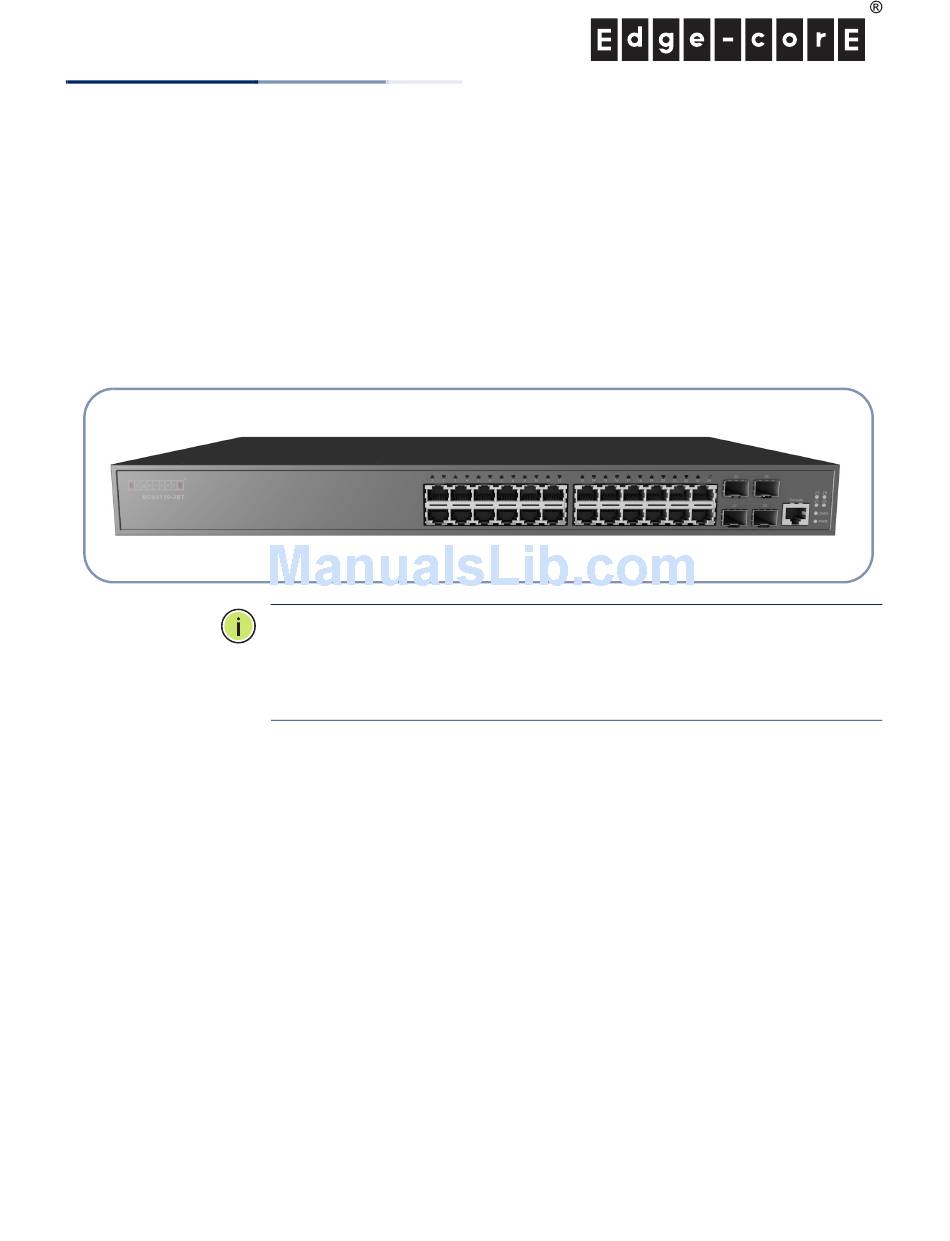

L2 Gigabit Ethernet Switch
ECS4110-28T
1. Unpack the Switch
www.edge-core.com
The ECS4110-28T is a high-performance enterprise Layer 2 switch that provides 24
10/100/1000BASE-T RJ-45 ports and four Small Form Factor Pluggable (SFP) Gigabit
slots that support 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, 100BASE-FX
and1000BASE-T transceivers.
For detailed switch installation information, refer to the Installation Guide,
N
:
OTE
which is on the Documentation CD included with the switch.
For Safety and Regulatory information, refer to the Safety and Regulatory
N
:
OTE
Information document included with the switch.
The switch is designed to be installed in a standard 19-inch equipment rack.
However, you can also install the switch on any flat surface, such as a desktop.
Follow the steps in this guide to install the switch in your network.
Unpack the switch and check the package contents.
◆
ECS4110-28T L2 Gigabit Ethernet Switch
◆
Bracket Mounting Kit containing two brackets and eight screws for attaching
the brackets to the switch
◆
Four adhesive foot pads
◆
Power cord—either US, Continental Europe or UK
◆
Console cable (RJ-45 to DB-9)
◆
Quick Start Guide (this document)
◆
Regulatory and Safety Information
◆
Documentation CD — includes Installation Guide and Management Guide
– 1 –
E032013-KS-R02
150200000586A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Edge-Core ECS4110-28T
Summary of Contents for Edge-Core ECS4110-28T
- Page 1 Quick Star t Guide L2 Gigabit Ethernet Switch ECS4110-28T The ECS4110-28T is a high-performance enterprise Layer 2 switch that provides 24 10/100/1000BASE-T RJ-45 ports and four Small Form Factor Pluggable (SFP) Gigabit slots that support 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, 100BASE-FX and1000BASE-T transceivers.
- Page 2 Quick Start Guide 2. Install the Switch The switch can be mounted in a standard 19-inch rack or on a desktop or shelf. Rack Mounting—Following your rack plan, mark the holes in the rack where the switch will be installed. One person should lift the switch into the rack so that it is aligned with the marked holes.
-
Page 3: Verify Switch Operation
Quick Start Guide 3. Connect Power To supply AC power to the ECS4110-28T switch, first verify that the external AC power supply can provide 100 to 240 VAC, 50-60 Hz and 0.90 A. To connect AC power, plug the power cord into a grounded, 3-pin, AC power source and then into the AC socket on the rear of the switch. -
Page 4: Connect Network Cables
Quick Start Guide 5. Make Initial At this point you may need to make a few basic switch configuration changes Configuration before connecting to the network. It is suggested to connect to the switch console port to perform this task. Changes The serial port’s configuration requirements are as follows: 115200 bps, 8 characters, no parity, one stop bit, 8 data bits, and no flow control. - Page 5 Quick Start Guide ◆ For the SFP slots, first install SFP transceivers and then connect cabling to the transceiver ports. The SFP slots support the following transceiver types: 1000BASE-SX, 1000BASE-LX, 1000BASE-LH, 100BASE-FX, and 1000BASE-T. For fiber transceivers connect 62.5/ 125 or 50/125 multimode or 9/125 single-mode fiber with LC connectors.
-
Page 6: Hardware Specifications
Quick Start Guide Hardware Specifications Item Specification Chassis Specifications SIze (W x D x H) 44.0 x 28.0 x 4.4 cm (17.32 x 11.00 x 1.73 in) Weight 2.70 kg (5.95 lbs) Temperature Operating: 0° C to 50° C (32° F to 122° F) Storage: -40°...
