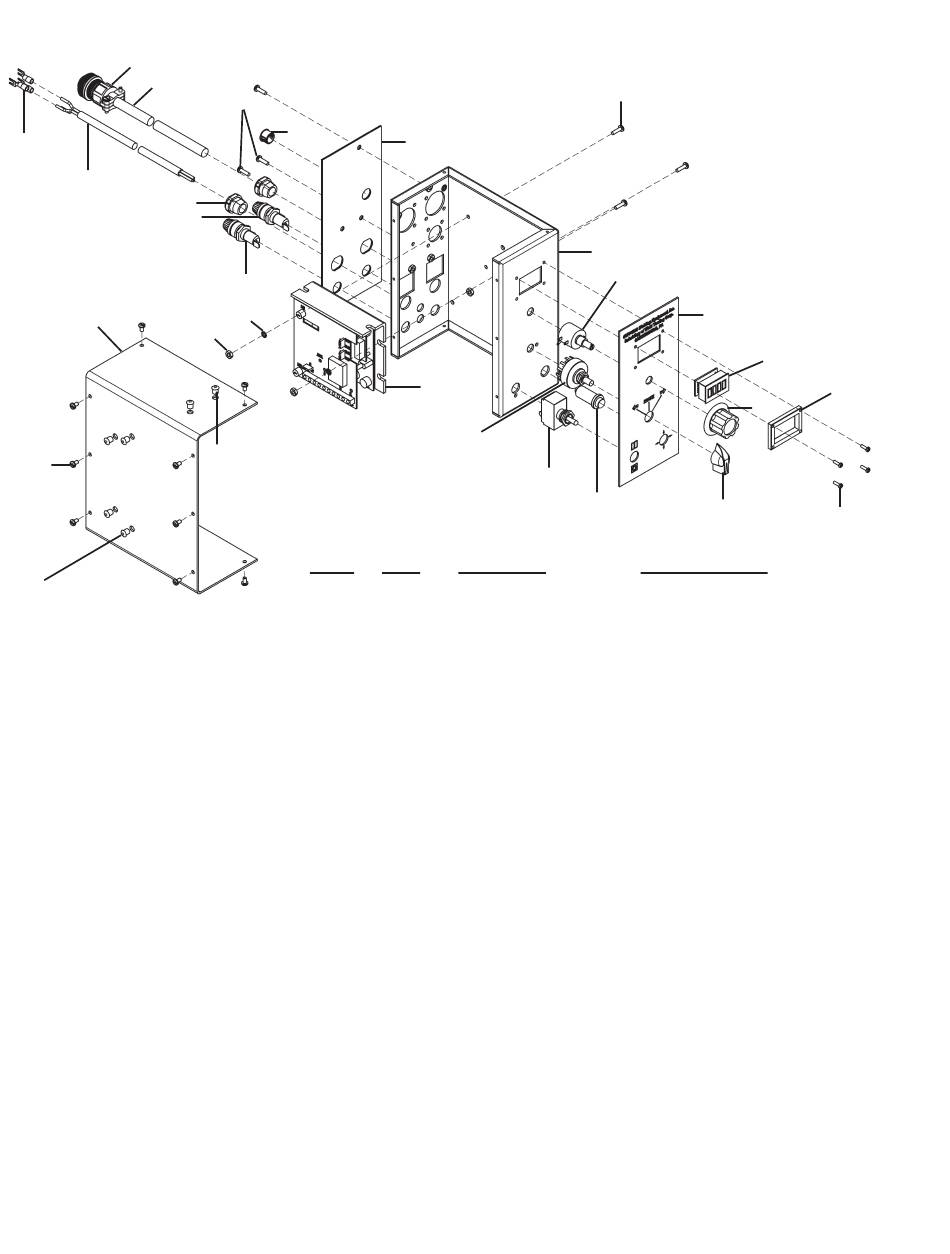

CWO-6210 ROTATION CONTROL / EXPLODED VIEW / PARTS LIST

3
2
20
22
15,17
12
14 (X4)
19
29
26
13,14,21
23
6
15,16
21 (X4)
29
ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
8
10
18
1
QTY PART NO.
1 ARM-2279
1 BUG-9445
1 CON-PS04M
1 BUG-9687
1 BUG-9694
2 CSR-WTE-1597
1 CWO-6216
1 CWO-5547B
1 CWO-6206
1 CWO-6527
1 CWO-6839
1 CWO-6802
6 FAS-0115
6 FAS-1310
2 FHO-0188
1 MPD-1026
1 FUS-0257
1 MUG-1258-1
10 SCW-WTE-0264
3 TERM-WTE-0197
6 WAS-0211
42" WRE-WTE-0501
1 MUG-1589
1 BUG-1562
4 FAS-0104
4 SCF-1001
1 BUG-1764
1 MDS-1011
6 BUG-3331
13 (X4)
11
24
7
27
4
9
5
DESCRIPTION
Toggle Switch
Power Cord
Plug, Straight 4-Pin Male
Knob Fluted
Knob
Cord Strain Relief
Rotation Box Front Panel
Rotation Box Rear Panel
Indicator Light
0-90V Spd Ctrl w/Isolator
Rotation Control Case
Rotation Box Cover
#6-32 x 1/2" Pan Head Zinc
Hex Nut 6-32
Fuse Holder
Fuse 2 Amp
Fuse 3 Amp
Rotary Switch Assembly
#6-32 x 1/4" Sht Mt Scr
#6 Red Fork
#6 Internal Star Washer
18/3 SJO 300V Cord
Hole Plug .500"
Multi-turn Potentiometer
#4-40 x 3/8" Pan Hd
#4-40 Self Clinching Nut
Meter Display Board
Display Bezel
Hole Plug 1/4"
28
25,26
