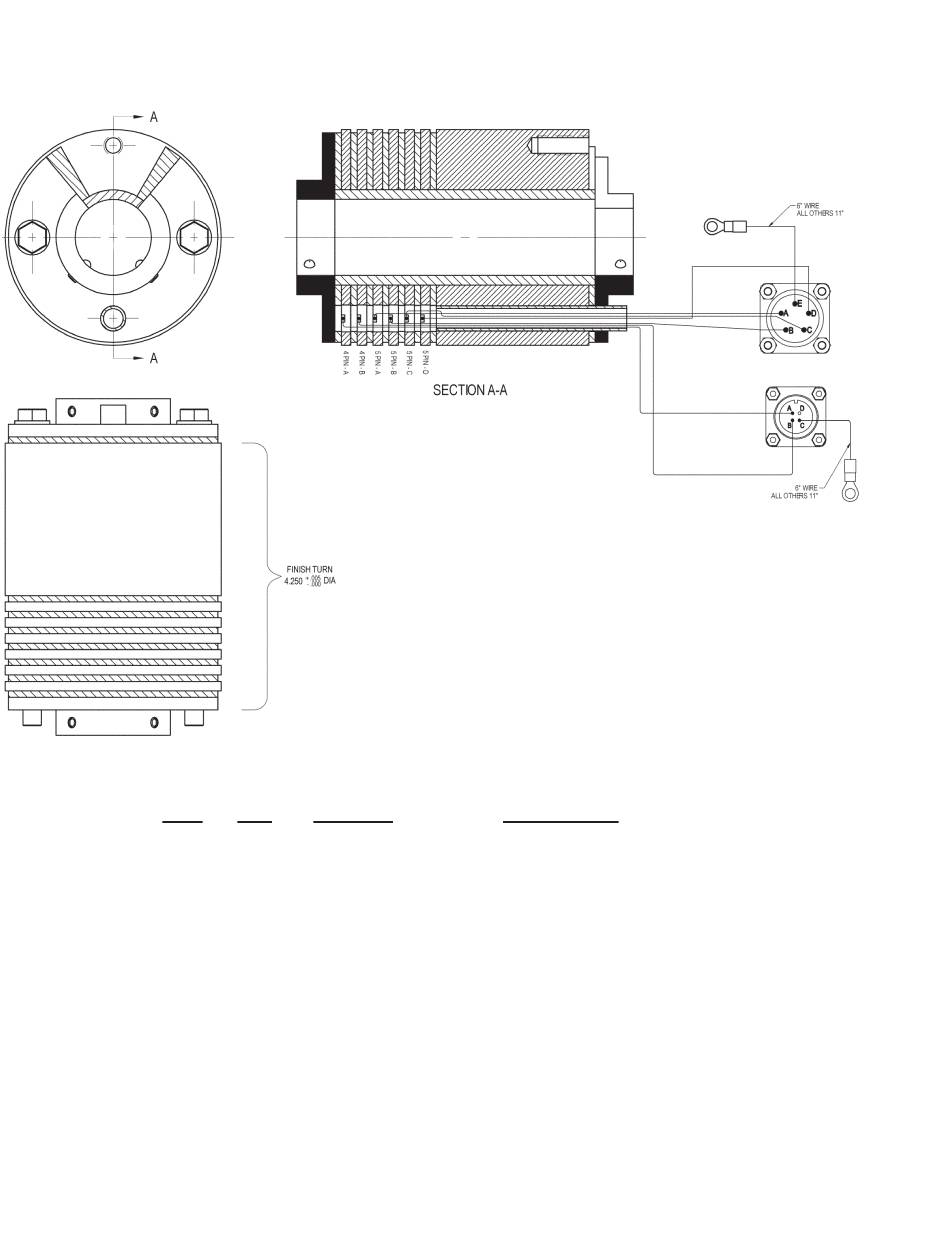

CWO-3495 CW-7 COLLECTOR / EXPLODED VIEW / PARTS LIST

ITEM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
14
QTY PART NO.
6 CWO-3127
1 CWO-5741
7 CWO-5744
1 CWO-5747
1 CWO-5748
2 CWO-5806
1 CWO-5752
1 CWO-5745
1 CWO-5746
1 CON WTE 0383
2 TERM-5494
4 FAS-0215
4 FAS-0455
4 FAS-1310
2 FAS-0393
2 WAS-0260
4 FAS-0204
4 FAS-1305
1 BUG-1034
DESCRIPTION
Brass Ring 4.250" Dia x .188 Thk
Brass Ring 4.250" Dia x 3.000 Thk
Micarta Spacer
Micarta Spacer w/Notch
Micarta Sleeve .500" Dia x 3.750" Lg
Micarta Sleeve .500" Dia x 5.375" Lg
Micarta Sleeve 1.875" Dia x 4.50" Lg
Top Plate CW-5 Collector
Bottom Plate CW-5 Collector
5 Pos Box Mounting Connector Plug
#8 Red Ring Connector
6-32 x 1/2" Rnd Hd Scr
1/4"-20 x 1/2" Soc Hd Set Scr
6-32 Hex Nut
Hex Hd Cap Scr 3/8-16 x 6"
3/8" SAE Washer
Rnd Hd Slot Scr 4-40 x 3/8 Zinc
Hex Nut 4-40
Panel Connector, 4-T, M
