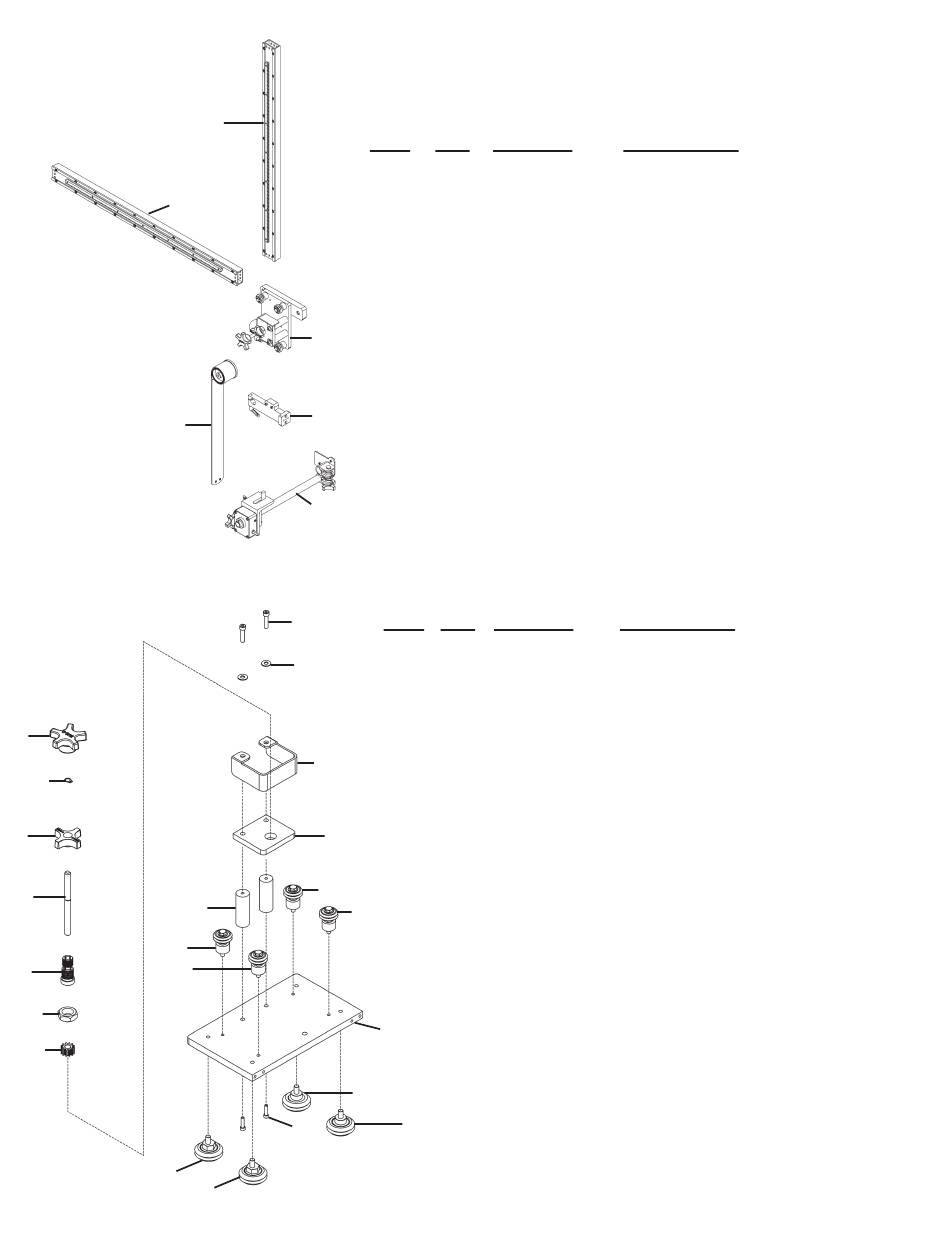

CWO-1665 CW-7 RACKING SYSTEM / EXPLODED VIEW / PARTS LIST

1
5

CWO-1690 HORIZONTAL RACKER / EXPLODED VIEW / PARTS LIST

1
16
13
14
5F
6A
12
11
4
9A
16
1
2
3
4
18
17
2
3
5F
15
6A
8F
10
9A
ITEM QTY PART NO.
1 2 ABR-1060
2 1 CWO-1675
3 1 CWO-1695
4 1 CWO-3023-1
5 1 CWO-3460
ITEM QTY PART NO.
1 1 BUG-2032
2 1 CWO-1671
3 1 CWO-1678
4 1 CWO-1679
5 2 CWO-1680
6 2 CWO-1681
7 1 CWO-1687
8 2 CWO-4326
9 2 CWO-4327
10 2 FAS-0557
11 1 FAS-1307
12 1 MUG-1141
13 1 MUG-1142
14 1 MUG-1144
15 2 MUG-1453
16 1 MUG-1579
17 2 WAS-0240
18 2 FAS-0559
F = FIXED WHEEL PLACEMENT
A = ADJUSTABLE WHEEL PLACEMENT
7
8F
DESCRIPTION
V-Guide Ways 33"
Vertical Racker
Attachment Block
Torch Angle Adjuster 16"
33# Load Spring Assembly
DESCRIPTION
Knob, Black
Racker Shield
Racker Plate
Pinion 11T
W2 Fixed Leg & Wheel Assembly
W2 Adj. Leg & Wheel Assembly
Mount Plate (Large Racker)
Fixed Leg & Wheel Assembly
Adj. Leg & Wheel Assembly
Soc Hd Cap Scr 1/4-20 x 3/4"
Hex Jam Nut 3/4-16
Bearing Collet
Knob, Locking
Shaft
Stand-Off
Retaining Ring
1/4" SAE Washer
Soc Hd Cap Scr 1/4-20 x 1"
