Summary of Contents for hadewe Veloria 2 Chrome

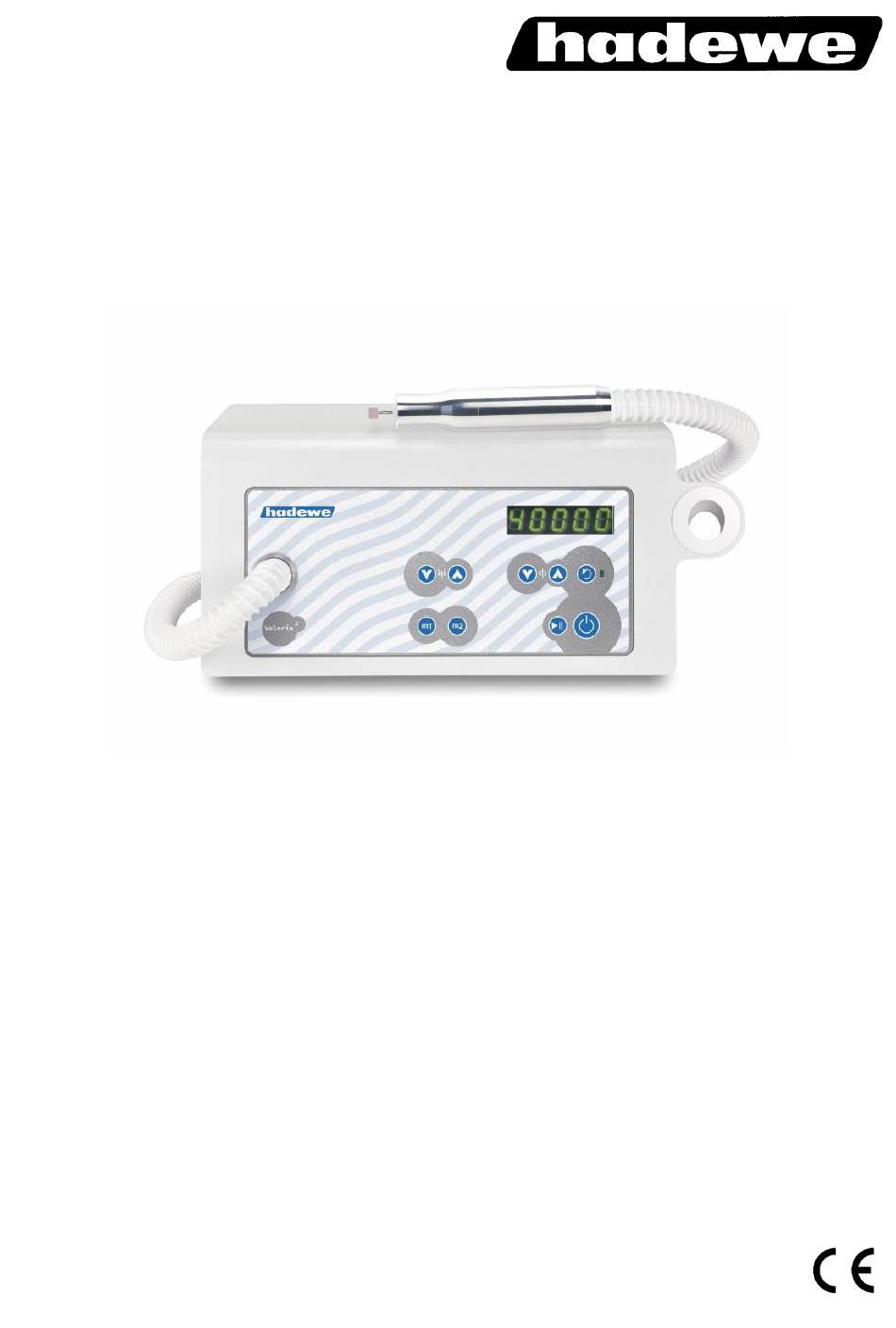

  • Page 1 Manual Veloria 2 Chrome Art. 0988 FB 04-436 Rev. 0 Date: 14.04.2023...
  • Page 2: Table Of Contents

    Directory Foreword Safety Instructions Cleaning & Disinfection Getting to Know the Unit Before First Use Area of Application Operation Application Operation Steps Working Positioning Suction Exchange Micro Filter Exchange Control Unit Filter Clamping the Bur/Tool Adjusting the Speed Foot Switch Maintenance &...
  • Page 3: Foreword

    Short description of functions The Veloria 2 Chrome is a device for the treatment of callus and nails. The handpiece is compatible with rotating tools such as diamond polishers, steel cutters, and ceramic cut- ters.
  • Page 4: Safety Instructions

    Safety Instructions The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. To avoid the risk of electrocution only connect the device to the mains power supply.
  • Page 5 Safety Instructions Prevent your hair from wrapping itself around moving parts. If applicable, wear a hair net. When working with materials, which might cre- ate dust or moisture, use a drilling unit with suc- tion or spray technique. Wear a nose and mouth protection.
  • Page 6 Safety Instructions Before using the equipment, assure that • the tool can be pushed far enough into the chuck (Test this with a dipstick and clean if necessary.) • the inserted tool sits properly in the chuck and will not cant/jam while clamping it, •...
  • Page 7 Safety Instructions 10 operating hours. If it is full, please exchange it. A filter should be exchanged at least after 50 operating hours. Never use the suction to vacuum any liquids (or air/water fog which contains particles of liquids). Always follow the operating instructions. Do not carry out any repairs, modifications or mainte- nance work yourself.
  • Page 8 Safety Instructions This appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction con- cerning use of the appliance in a safe way and understand the hazards involved.
  • Page 9: Cleaning & Disinfection

    Cleaning & Disinfection The device is designed to be compatible with rotating instru- ments which do not penetrate the skin or mucosal or inad- vertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided below. After every treatment please carry out these steps: •...
  • Page 10: Getting To Know The Unit

    Getting to Know the Unit decrease the suction level increase the suction level reduce the speed increase the speed display of speed/suction level change direction of rotation LED is ON during anti-clockwise rotation main switch memory button m1 memory button m2 START/STOP button ON/OFF button (standby) connecting socket for foot switch...
  • Page 11: Before First Use

    Before First Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. Al- the conditions described. Set up the ways keep this manual accessible to unit in such a way, that the air slits any users of the drill.
  • Page 12 Before First Use If you have a foot switch, insert its Take up the handpiece. Should the plug into the socket (13) which dis- handpiece be twisted by the hose you can adjust that at the control plays this symbol unit.
  • Page 13: Application

    Application The handpiece motor and suction Operation Steps will turn off. The handpiece can now In the following section the order in be placed in its holder on the right of which you should use the device is the unit. If you want to end the work described.
  • Page 14: Working Positioning

    Application Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain.
  • Page 15 Application...
  • Page 16: Suction

    Application Suction When installing the new filter, hold Switch on the suction with button (2). the filter in the middle to prevent it The suction output can be regulated from bending and sliding off. in 5 levels. You will see the selected level in the display.
  • Page 17: Clamping The Bur/Tool

    Change the bur/tool only when the Connecting with control unit motor is turned off. Insert the bur un- Only use the original hadewe foot til it stops. The handpiece is switch (art. 0970) to avoid damages. equipped with a chuck, which can Insert the plug of the foot switch into hold all burs with a diameter of 2.35...
  • Page 18: Maintenance & Care

    Maintenance & Care Turn the drill clockwise while you Cleaning the Clamping hold fast the white plastic part: System When inserting the instruments, it may happen that dust enters the clamping system. This may cause that instruments can no longer be in- serted deep enough and that a tight grip is no longer granted.
  • Page 19: Maintenance Overview

    Maintenance & Care Maintenance Overview What has to be How often? done? Done by whom? cleaning the monthly by user chuck changing every 50 hours of the micro filter operation by user (check after each 10 hours) changing the con- every 200 hours trol unit filter of operation by...
  • Page 20: Handling Instructions

    Working with high pressure of rust. In cases in which a will not improve the outcome rust infestation was found within the of your work, since the motor...
  • Page 21: Troubleshooting

    Pull out the mains plug to re- a different bur/tool to test this. set the device. The bur/tool itself can be tested with the hadewe Bur The unit shows different sound Shaft Tester (art. 4990) to see levels at different sites of use.
  • Page 22: Technical Data

    2.35 mm in accordance with EN ISO 2014/30/EU directive EMC 1797-1. 2014/35/EU low voltage directive hadewe GmbH – Grambartstraße 10 – Operating Time 30165 Hannover The device is designed for extended usage. Safety Check...
  • Page 23 (hadewe). We will dis- air humidity: permissible range pose of the device free of charge. The devices should not be taken to Keep dry! public disposal plants (WEEE Reg.-...
  • Page 24 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
