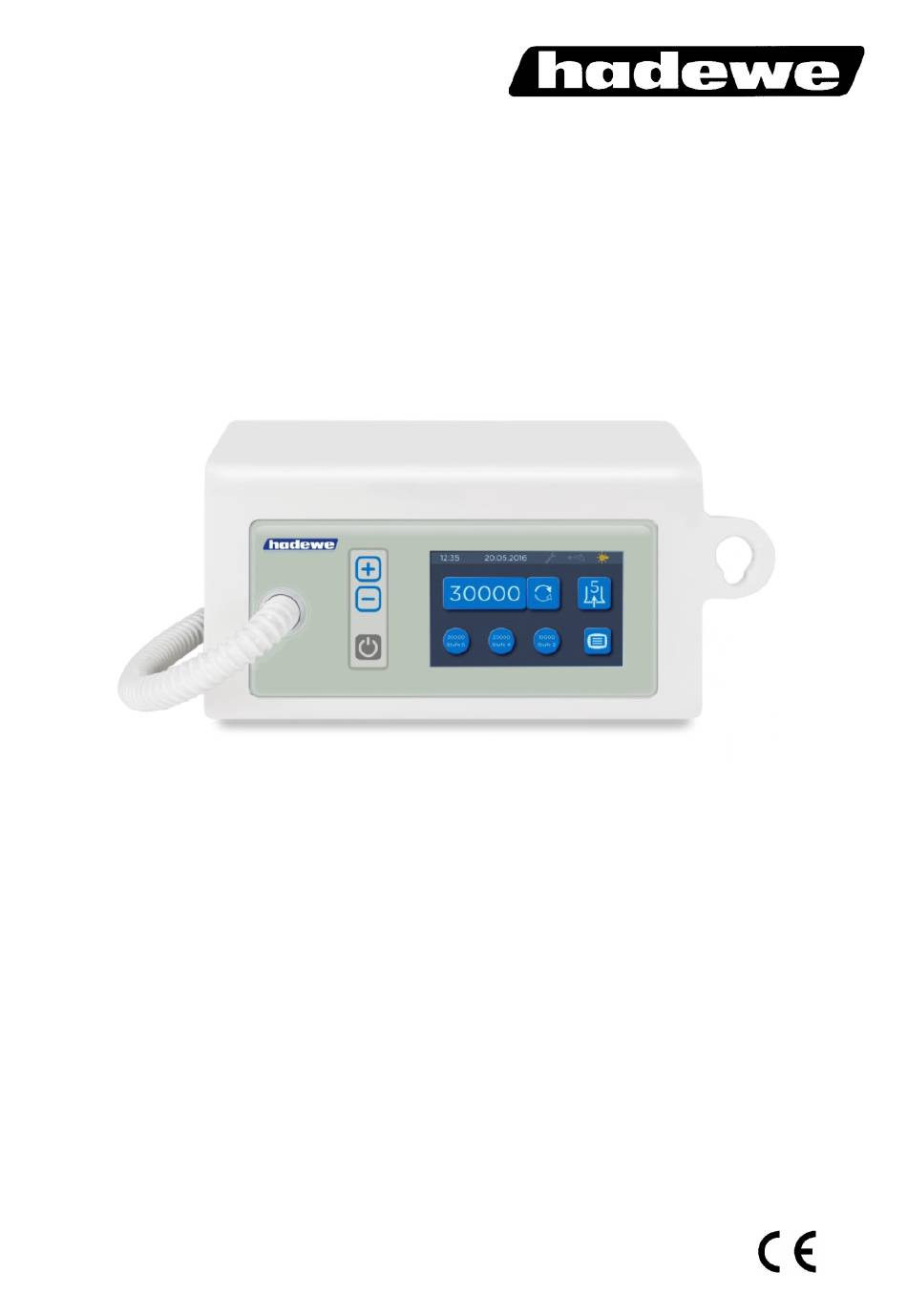

- Page 1 Manual Medeas Art. 0980, 0981 FB 04-288 Rev. 2 Date: 23.01.2019...
-
Page 2: Table Of Contents
Exchange Control Unit Filter Clamping the Tool/Bur (Medeas Plus) Clamping the Tool/Bur (Medeas Chrome) Adjusting the Speed Memory Keys Foot Switch Switsch on the Handpiece (Medeas Plus) Select Menu Help Menu Settings Menu Confirm Filter Change Turn Light ON/OFF (Medeas Plus) Pictures &... -
Page 3: Foreword
Short description of functions The Medeas is a device for the treatment of callus and nails. The handpiece is compatible with rotating tools such as diamond polishers, steel cutters and ceramic cutters. -
Page 4: Safety Instructions
Safety Instructions The installation of the working area has to cor- respond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. This device shall only be used by persons who are familiar with feature and function of the unit. - Page 5 Safety Instructions Prevent any liquids from entering into the control unit, since this could damage the electronic el- ements. Clean the outside of the box only with a damped cloth. Make sure, that you have unplugged the unit before. Only when pulling the mains cable, you can en- sure that the device will be completely discon- nected from mains.
- Page 6 Safety Instructions Ensure that the patient’s foot and the handpiece are held firmly in place during the operation. To prevent injury, work with extreme caution on the foot of the patient, and use only light pressure. To ensure that the bur/tool sits firmly in the chuck, do not work with tools which •...
- Page 7 If it is full, please exchange it. A filter bag should be exchanged at least after 50 operating hours. Medeas Plus: The light on the handpiece is for lighting the area being treated. Do not look di- rectly into the light.
- Page 8 Safety Instructions Attention! Only use burs/tools which are permit- ted for speed level saved under (12) to (14)! When the device is brought out of standby mode, it will run with the rotation speed and suc- tion power used last. Take care to not start the mill at an overly high rotation speed.
-
Page 9: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating in- struments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided be- low. -
Page 10: Discover Device
(left/right switch) maintenance required USB stick plugged in (green light) Medeas Plus: light (yellow when switched on) 12,13,14 memory keys for speed/suction suction stage set bringing up menu with additional functions... -
Page 11: Before First Use
Before First Use Please read through the instructions Operation carefully before using the unit and The working area must conform to carefully note the safety advice. the conditions described. Set up the Always keep this manual accessible unit in such a way, that the air slits to any users of the drill. - Page 12 Before First Use If you have a foot switch, insert its ing the maintenance proposal will plug into the port on the right of the automatically be set to zero. device which displays this symbol The display will shut down now and the unit is in standby.
-
Page 13: Usage
Usage In the following section the order in memory keys (12), (13) or (14) for 4 which you should use the device is seconds. To recall the stored speed described. Additionally, the individ- and suction power quickly, briefly ual steps will be explained in detail. press the corresponding memory Read the complete manual before key. -
Page 14: Working Positioning
Usage Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. - Page 15 Usage...
-
Page 16: Suction
Usage Suction filter in the middle to prevent it from bending and sliding off. Set the suction by using the icon (15). The suction power can be regulated in 5 steps. The suction stage selected is displayed. In case of overheating of the suction motor, this switches off au- tomatically. -
Page 17: Clamping The Tool/Bur (Medeas Plus)
Usage Clamping the Tool / Bur Adjusting the Speed (Medeas Plus) Take the handpiece (with tools) in the hand or put it into the handpiece The handpiece is equipped with a holder. chuck, which can hold all burs with a diameter of 2.35 mm (this is the Select button (4) of the device. -
Page 18: Memory Keys
Another quick press of the Foot Switch first memory key (12) can also be used. Operation of the footswitch Only use the original hadewe foot- This only work with tools switch to avoid any (Art. No. 0970) that are approved for the damages. -
Page 19: Select Menu
USB stick instructions and safety instructions. Help: instructions, help tutorials, Insert Burs: this clip demonstrates troubleshooting the clamping of rotary tools Light (Medeas Plus): turn light Clean Chuck: video clip that ON/OFF... -
Page 20: Settings Menu
Settings Menu Then click “Change Filter”. Confirm the filter change with YES. Turn Light ON / OFF (Medeas Plus) To turn the light on or off, click the top of the bar on the light icon: Time: set the system time Alternatively, you can switch the light on or off in the menu. -
Page 21: Pictures & Videos
Usage Pictures & Videos The image and video viewer can be used to view images in JPG format. Videos can be displayed in the EMF format from the USB stick. Preferably, use the supplied USB stick (4 GB, Art. No. 6354). USB sticks from other manufacturers are mostly compatible. - Page 22 <Date>, the file list is sorted in descending order by date. Available video formats The EMF format can be viewed. At http://www.hadewe.net/video-library/ provide a program ready to convert your own videos from other formats to EMF format. Open the file to begin installation. Follow the instructions on the monitor.
- Page 23 Clicking Convert starts the conversion. The video file [*.emf] is written in the destination folder. Video library http://www.hadewe.net/video-library/ you can download videos and pictures on the subject of footcare for your device. Download this on the USB flash drive in order to consider the devices.
-
Page 24: Messages
Messages REMINDER: CHECK CHUCK ter!". You will find instructions in the chapter Exchange Micro Filter and a help video under the menu item "Help". SHUTDOWN SPEED DIFFERENCE → device switches off when the set hand- piece speed cannot be maintained. →... -
Page 25: Maintenance & Care
Maintenance & Care Cleaning the Chuck (Medeas Plus) In the process of time, some dirt might collect itself within the hand- piece, and might affect its functions. Therefore, the chuck has to be cleaned monthly. How to remove the chuck To assemble the chuck, follow the steps in reverse order. -
Page 26: Cleaning The Clamping System (Medeas Chrome)
Please act according to the saying: Less is more. Cleaning the Clamping System (Medeas Chrome) When inserting the instruments, it may happen that dust enters the clamping system. This may cause... -
Page 27: Upload Firmware
1. Download the firmware from http://www.hadewe.net/video-library Save the file on a USB stick. The file must be located in the root directory. The file name encrypt- ed_blto_m7.bin... -
Page 28: Handling Instructions
Working with high pressure materials used will not improve the outcome hadewe prevend a formation of your work, since the mo- of rust. In cases in which a tor will even be slowed down. A rust infestation was found within the... -
Page 29: Troubleshooting
(approx. 1 sec) when turning unit tions in the manual. In very rare cases this effect did Medeas Plus: Bur does not clamp appear. It will not harm or dam- or does not spin. age the device. -
Page 30: Technical Details
Temp: -5°C to +55°C standards or normative documents: Rel. humidity: 10% to 95% (not condensed) 2014/30/EU directive EMC Air pressure: 500hPa to 1060hPa 2014/35/EU low voltage directive hadewe GmbH - Grambartstraße 10 - 30165 Hannover... - Page 31 (no disconnection from main device). For disposal of this unit out power supply) of Germany, please contact the site change direction where you bought this hadewe product. alternating current Note for the disposal of the device/ direct current treatment system...
- Page 32 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
