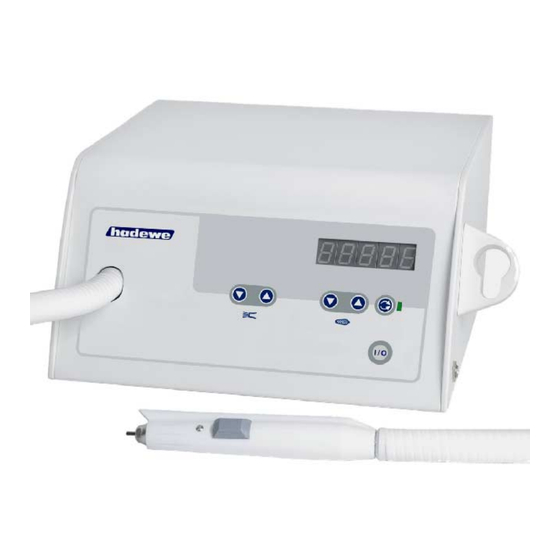

hadewe HELIUS-40 Owner's Manual

Speed range: 7000 – 40,000rpm
Hide thumbs

Advertisement

Quick Links

For more information or for customer support contact your local dealer or call
OWNER'S MANUAL
HADEWE HELIUS-40
Speed range: 7000 - 40,000rpm
Section
(800) 361-3079

TABLE OF CONTENTS

Page
1
2
3
7
12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HELIUS-40 and is the answer not in the manual?

Questions and answers

Mrs Jacqui Coulson
April 29, 2025

I keep getting the FC warning, How do i reset this please?

0

Subscribe to Our Youtube Channel

Related Manuals for hadewe HELIUS-40

Summary of Contents for hadewe HELIUS-40

  • Page 1: Table Of Contents

    OWNER’S MANUAL HADEWE HELIUS-40 Speed range: 7000 – 40,000rpm TABLE OF CONTENTS Section Page General Guidelines Safety Information Standard Operating Procedures Maintenance & Care Equipment Specifications For more information or for customer support contact your local dealer or call (800) 361-3079...

  • Page 2: General Guidelines

    It is recommended that these instructions be kept in a safe and handy place for future reference. This equipment consists of a HADEWE control unit (the main body of the machine) and a handpiece. The control unit consists of the built-in vacuum and electronic controls for the handpiece.

  • Page 3: Safety Information

    (towards the back). WARNING: NEVER EXCEED THE MAXIMUM RPM OF THE BURR / ROTATOOL The burr must be approved for use at the revolutionary speed (max rpm) of the HADEWE equipment being used (see manufacturer’s instructions). Your HELIUS-40 is capable of operating at a speed range of 7000 to 40,000rpm as shown on the digital display.
  • Page 4 Getting to Know the HELIUS-40______________________________________ FRONT VIEW 1. Decrease suction power 2. Increase suction power 3. Reduce speed of rotation 4. Increase speed of rotation 5. Digital display of speed and suction level 6. Change direction of rotation 7. LED light: ON during reverse rotation 8.

  • Page 5: Standard Operating Procedures

    2. Avoid placing liquids on top or near the equipment, as these can enter the motor and damage the electronics of the equipment. 3. Switch OFF the HADEWE control unit at the back of the base unit (13), the power button should stick out.
  • Page 6 4. Before stopping the machine to change a tool, decrease the speed back to 7000rpm. Optional Foot Switch (Art. 0970) Only use the original HADEWE foot switch, to avoid any damage to the equipment. 1. Insert the plug of the foot switch into the socket on the right side of the machine (10).

  • Page 7: Maintenance & Care

    Maintenance & Care_________________________________________________ Cleaning the HELIUS-40 The surface of the equipment should be cleaned between each patient and at the end of the day for optimal infection control. 1. After each treatment turn OFF the machine (13). 2. Remove the rotating tool (burr, Rotatool, carrier, etc.) 3.
  • Page 8 Maintenance & Care_________________________________________________ Monthly Cleaning and Maintenance Every 200 operating hours a number of important maintenance procedures should be done to ensure the long term performance of this equipment 1. Exchange the Control Unit filter (Art. 3752). a. Turn the Control Unit OFF using button at back of equipment (13).
  • Page 9 Maintenance & Care________________________________________________ Cleaning the Clamping Chuck The seals on the handpiece should ensure that very little dust enters into the handpiece. Nevertheless, you should clean the chuck on a regular basis (once a month) or more often if any of the following happen: •...
  • Page 10 Maintenance & Care_________________________________________________ Helpful Advice Never clean the handpiece while the motor is running or with a pressurized air device. Dirt could be forced into the bearings causing damage. Never immerse the handpiece in liquids including lubricant. Clean the surface with a damp cloth but not with any sprays.

  • Page 11: Troubleshooting

    Maintenance & Care_________________________________________________ Troubleshooting Problem Probable Cause Solution Try using a different tool to check if this Use of bent tools/burrs corrects problem Handpiece vibrates, is very noisy Maximum allowed speed was Check tool manufacturer’s recommended exceeded for the tool speed and decrease speed on control unit Handpiece is becoming very hot Too much pressure is being...

  • Page 12: Equipment Specifications

    Length: 160mm (6.3”) Handpiece diameter: 17.5mm – 22mm (.7” - .9”) Power supply: 5-27v/DC Speed range: 7000 – 40,000rpm Manufacturer Information Made in Germany by: HADEWE Service and Support in North America: Thomas Machinery Ltd. Tel: 519-824-2315 Fax: 519-824-9691 E-mail: info@rotatool.com...
