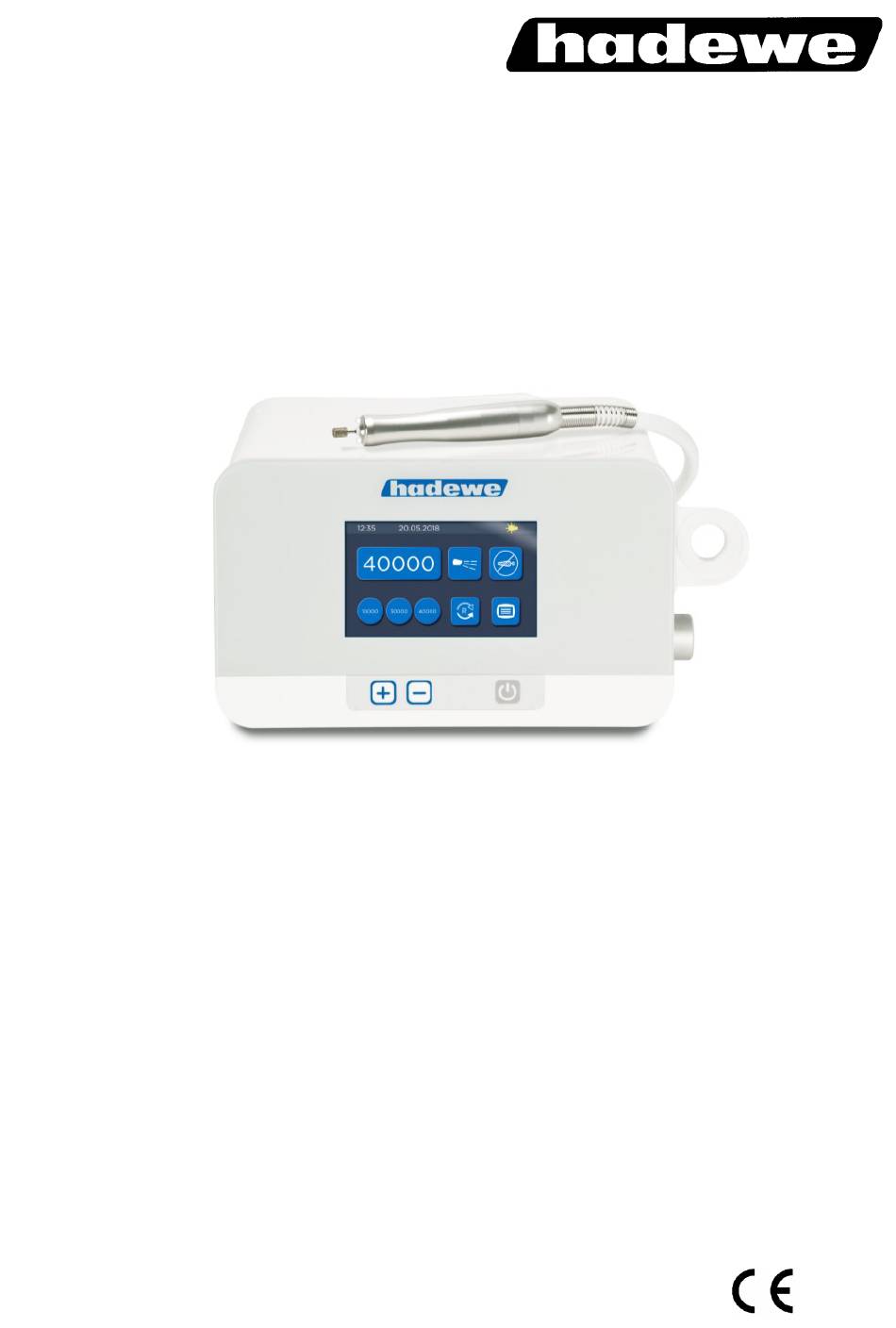

- Page 1 Manual Azuras CHROME art. 0982 FB 04-303 Rev. 1 Date: 30.01.2019...
-
Page 2: Table Of Contents
Directory Foreword Safety Instructions Cleaning & Disinfection Discover Device Before Use Area of Application Operation Usage Operating Steps Work Positioning Infilling the Spray Speed Spray Insert Bur Adjusting the Speed Memory Keys Foot Switch Select Menu Help Menu Settings Menu Confirm Washer Change Turn Light ON/OFF Pictures &... -
Page 3: Foreword
This user manual includes a detailed description and explanation of how to use the Azuras CHROME unit. If you have any questions or suggestions, you can contact us by telephone or email. This user manual belongs with the Azuras CHROME unit. Keep it somewhere safe. If you give this product to someone else, please include this document as it includes important information on how to correctly use the product. -
Page 4: Safety Instructions
Safety Instructions The installation of the working area has to correspond to the relevant regulations. Set up the unit in such a way, that the air slits are not blocked and the extracted air can escape well. This device shall only be used by persons who are familiar with feature and function of the unit. - Page 5 Safety Instructions Prevent any liquids from entering into the control unit, since this could damage the electronic elements. Clean the outside of the box only with a damped cloth. Make sure, that you have unplugged the unit before. Only when pulling the mains cable, you can ensure that the device will be completely disconnected from mains.
- Page 6 Only use distilled water plus a sterilizing additive, e.g. hadewe AquaHy (art. no. 8555). If you use other brands, pay attention to their manuals if you can use them for this purpose.
- Page 7 Safety Instructions Empty the unit if it is not in use for a longer period of time, e.g. before vacations. Clean out the tank. Set the spray function on maximum. Now start the spray function, and the water will spray for approx. 3 min. The fluid will be blown complete spray system...
- Page 8 Safety Instructions Switch off the unit immediately if the bur comes off during the treatment itself, • the motor blocks during the treatment. • The light on the handpiece is for lighting the area being treated. Do not look directly into the light.
- Page 9 Safety Instructions When the device is brought out of standby mode, it will run with the rotation speed used last. Take care to not start the mill at an overly high rotation speed. Select the required rotation speed before changing the milling tool. In case the touch display shows a damage or does not work properly the device may not be used any longer.
-
Page 10: Cleaning & Disinfection
Cleaning & Disinfection The device is designed to be compatible with rotating instruments which do not penetrate the skin or mucosal or inadvertently may still cause injuries. For this application please adhere to the cleaning and disinfection instructions provided below. After every treatment please carry out the following steps: •... -
Page 11: Discover Device
Discover Device 10 11 12 main power switch speed display USB port turn OFF / ON spray increase speed maintenance required reduce speed USB stick plugged in (green press briefly: switch unit on light) press again briefly: turn on the light (yellow when switched on) handpiece turn off handpiece &... -
Page 12: Before Use
Before Use Please read through the instructions Operation carefully before using the unit and The working area must conform to the carefully note the safety advice. conditions described. Set up the unit in Always keep this manual accessible such a way, that the air slits are not to any users of the drill. - Page 13 Before Use If you have a foot switch, insert its proposal will automatically be set to plug into the port on the right of the zero. device which displays this symbol To use the handpiece and spray function press the button (5) on the front of the unit.
-
Page 14: Usage
Usage In the following section the order in spray amount, you can start with which you should use the device is working. described. Additionally, individual steps will be explained in Frequently used speed can be detail. Read the complete manual saved. -
Page 15: Work Positioning
Usage Work Positioning The following images are examples of how to work on various parts of the foot. Always make sure that the foot is firmly gripped and that you can work freely and without strain. - Page 16 Usage...
-
Page 17: Infilling The Spray Speed
Usage Infilling the Spray Liquid spray fluids often attack hoses make them Switch off the device. Pull out the porous. spray tank on its handle. Hold the cover of the tank in hand and unscrew the tank. Now fill it with Spray distilled water and anti-germ liquid, Turn on the spray function while... -
Page 18: Memory Keys
Select the required rotation speed before changing the milling tool. Foot Switch Operation of the foot switch Only use the original hadewe foot switch (art. no. 0970) to avoid any damages. Insert the plug of the foot... -
Page 19: Select Menu
Usage Select Menu Help Menu In the select menu, you can use the Manual: Here is a short form of the following functions: manual. This does not replace the original manual in paper form, as Pictures/Videos: viewing pictures or the latter contains more detailed videos from your USB stick instructions and safety instructions. -
Page 20: Settings Menu
Usage Settings Menu Confirm Washer Change Every 50 hours of operation you will get the message to "Please change washer!". After the washer change, the following must be entered into the instrument. On the start screen, click the icon for the select menu: Time: set the system time Date: set the system date Language: set the language for the... -
Page 21: Pictures & Videos
Usage Pictures & Videos The image and video viewer can be used to view images in JPG format and videos in EMF format from the USB stick. Preferably, use the supplied USB stick (4 GB, art. no. 6354). USB sticks from other manufacturers are mostly compatible. - Page 22 <Date>, the file list is sorted in descending order by date. Available video formats The EMF format can be viewed. At http://www.hadewe.net/video-library/ provide a program ready to convert your own videos from other formats to EMF format. Open the file to begin installation. Follow the instructions on the monitor.
- Page 23 Clicking Convert starts the conversion. The video file [*.emf] is written in the destination folder. Video library http://www.hadewe.net/video-library/ you can download videos and pictures on the subject of foot care for your device. Download this on the USB flash drive in order to consider the devices.
-
Page 24: Messages
Messages RECOMMENDED MAINTENANCE → After prolonged use, replacement of wearing parts such as ball bearings is recommended. The control unit evaluates the period since the last maintenance and the actual operating time and, if necessary, displays a maintenance recommendation. If maintenance is required, this symbol will appear. -
Page 25: Maintenance & Care
Remove the washer with tool (art. page 20). no. 6475). Cleaning the Chuck Cleaning the chuck is not intended for Azuras CHROME. Put on the tool between the LEDs. If you set the tool on the LED, they may break. -
Page 26: Water Filter
Maintenance & Care Water Filter Cleaning Function Even smallest parts of dirt could Use the cleaning function if the block the nozzle, which sits in the nozzle is blocked. Turn the unit off top. Avoiding such blockages, there using button (5). is a water filter installed in the cap of the tank. -
Page 27: Maintenance Overview
5. As soon as the last line "Please 1. Download the firmware from restart device" is displayed, the http://www.hadewe.net/video-library update is complete and you can Save the file on a USB stick. The switch the device off using the main file must be located in the root power switch (1). -
Page 28: Handling Instructions
Working with high pressure materials used will not improve the outcome hadewe prevent a formation of your work, since the of rust. In cases in which a motor will even be slowed down. A rust infestation was found within the... -
Page 29: Troubleshooting
The sound level varies according to hadewe Bur Shaft Tester (art. no. the surroundings of the unit. If you 4990) to see if it is bent. set up the unit directly in front of a... -
Page 30: Technical Details
Technical Details 0982 Azuras CHROME Ambient Conditions total weight: 3,2 kg The device is intended for use in dimension: W290xH145xD180 mm dry closed rooms. input: 100 - 240V~, 50/60Hz power consumption: Operation: 1A(100V) - 0,45A(240V) Temp.: +10°C to +26°C fuse primary: Rel. - Page 31 2014/30/EU directive EMC 2014/35/EU low voltage directive USB port hadewe GmbH – Grambartstraße 10 – date of manufacture, 30165 Hannover – Germany name and address of the manufacture Safety Check A safety check must be done in...
- Page 32 GmbH Grambartstraße 10 30165 Hannover Germany info@hadewe.de www.hadewe.de...
