Product Features
• Internal factory-installed thermal expansion
valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge
• Commissioning and diagnostics via on board Bluetooth
with the CoolCloud™ phone and tablet application
• Auto configuration of the airflow
and tonnage in communicating mode
• Provides constant CFM over a wide range of static
pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for
efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump
and cooling applications
• All-aluminum evaporator coil
• AHRI certified; ETL listed
• UL 60335 2-40 Compliant
SS-GAMVT
Multi-Position, Variable-Speed,
• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch
H₂O when tested in accordance with ASHRAE
standard 193
Technology
™
• Cabinet air leakage less than 1.4% at 0.5 inch
H₂O when tested in accordance with ASHRAE
standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain
pan with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW - 25 kW electric heater
kits available
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California
or
Québec. The duration of warranty coverage in Texas and Florida differs in some cases.
www.goodmanmfg.com

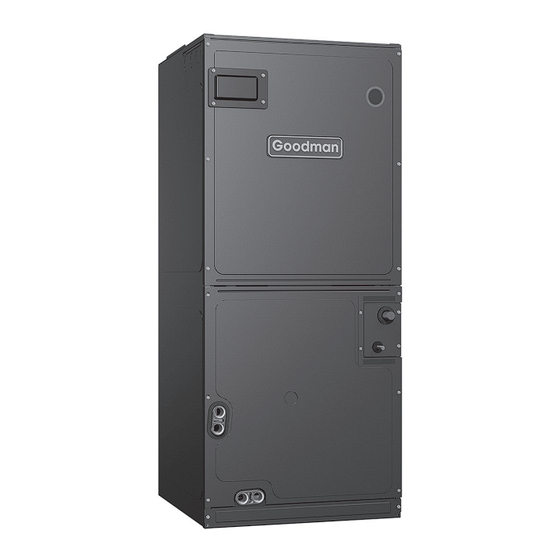

AMVT Series
ECM-Based Air Handler
with Internal TXV
ComfortBridge™ Compatible
Contents
Air Handler Nomenclature .................... 2
Heater Kit Nomenclature ...................... 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Data ........................................... 5
Heat Kit Data .......................................... 6
Wiring Diagram ...................................... 8
Accessories ............................................ 9
1½ to 5 Tons
10/23
Supersedes 12/22
Advertisement
Related Manuals for Goodman AMVT Series
Summary of Contents for Goodman AMVT Series
-
Page 1: Table Of Contents
AMVT Series Multi-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortBridge™ Compatible 1½ to 5 Tons Contents Air Handler Nomenclature ....2 Heater Kit Nomenclature ...... 2 Product Specifications ......3 Dimensions ..........4 Airflow Data ........... 5 Heat Kit Data .......... 6 Wiring Diagram ........ -
Page 2: Air Handler Nomenclature
Nomenclature 11,12 Minor Revision Brand A - Corporate Air Handler D - Daikin Air Handler Major Revision Application C - Ceiling Mounted Factory Installed Electric Heat KW M - Multi-Positional 00 -No Electric Heat W - Wall Mounted F - Fit Compatible Multi-Positional H - Horizontal Discharge Compatible Refrigerant Multi-Positional... -
Page 3: Product Specifications
Product Specifications AMVT AMVT AMVT AMVT AMVT AMVT AMVT AMVT 24BP14* 30BP14* 36BP14* 36CP14* 42CP14* 48CP14* 48DP14* 60DP14* Nominal Ratings 24,000 30,000 36,000 36,000 42,000 48,000 48,000 60,000 Cooling (Btu/h) Blower Diameter 10" 10" 10" 10" 10" 10" 10" 11" Width 6"... -
Page 4: Dimensions
Dimensions Model A" B" C" D" E" F" G" H" J" K" AMVT24BP14* 16⁵⁄ 17⁹⁄ 15¼ 12½ ⁄ 13⅝ AMVT30BP14* 53⁷⁄ 16⁵⁄ 17⁹⁄ ⁄ ⁄ 12½ 12¾ 13⅝ AMVT36BP14* 53⁷⁄ 16⁵⁄ 17⁹⁄ ⁄ ⁄ 12½ 12¾ 13⅝ AMVT36CP14* ⁄ 21⅛ ⁄... -
Page 5: Airflow Data
Airflow Data Outdoor Tonnage Model Low/High Number AMVT24BP1400 High AMVT30BP1400 High 1,000 AMVT36BP1400 High 1,000 1,200 AMVT36CP1400 High 1,000 1,200 AMVT42CP1400 High 1,200 1,400 1,072 AMVT48CP1400 High 1,400 1,600 1,072 AMVT48DP1400 High 1,600 1,072 1,340 AMVT60DP1400 High 1,600 2,000 Notes 1. -
Page 6: Heat Kit Data
Heat Kit Data Circuit 1 (208V/240V) Circuit 2 (208V/240V) Single-Point Kit (208V/240V) Heater Kit Model Heater Amps MCA¹ MOP² Heater Amps MCA¹ MOP² MCA¹ MOP² AMVT24BU1400BA 4.9/4.9 15/15 HKTSN03X1 10.8/12.5 18.4/20.5 20/25 HKTS*05X1 17.3/20.0 26.5/29.9 30/30 HKTSN06X1 21.7/25.0 32.0/36.1 35/40 HKTS*08X1 28.9/33.3 41.0/46.5... - Page 7 Heat Kit Data (cont.) Circuit 1 (208V/240V) Circuit 2 (208V/240V) Single-Point Kit (208V/240V) Heater Kit Model Heater Amps MCA¹ MOP² Heater Amps MCA¹ MOP² MCA¹ MOP² AMVT60DU1400BA 8.6/8.6 15/15 HKTS*05X1 17.3/20.0 30.2/33.6 35/35 HKTSN06X1 21.7/25.0 35.8/39.9 40/40 HKTS*08X1 28.9/33.3 44.8/50.2 45/60 HKTS*10X1 34.7/40.0...
-
Page 8: Wiring Diagram
Air Handler Wiring Diagram AMVT**P1400** (1.5T-5T) SEE NOTE 9 24V THERMOSTAT CONNECTIONS SEE NOTE 9 24 V THERMOSTAT CONNECTIONS 4 CIRCUIT MOTOR CONNECTOR www.goodmanmfg.com SS-GAMVT... -
Page 9: Accessories
Accessories Downflow Kits DFKE-02 DFKE-03 AMVT24BP1400** AMVT48CP1400** AMVT30BP1400** AMVT48DP1400** AMVT36BP1400** AMVT60DP1400** AMVT36CP1400** AMVT42CP1400** High Humidity Kit HHK0004 HHK0005 HHK0006 HHK0007 AMVT24BP1400** AMVT36CP1400** AMVT30BP1400** AMVT42CP1400** AMVT48DP1400** AMVT60DP1400** AMVT36BP1400** AMVT48CP1400** CONDENSATE MANAGEMENT KIT CMK0018 CMK0019 CMK0020 AMVT24BP1400** AMVT30BP1400** AMVT48CP1400** AMVT36CP1400** AMVT36BP1400** AMVT48DP1400** AMVT42CP1400** AMVT60DP1400** Filters... - Page 10 Notes www.goodmanmfg.com SS-GAMVT...
- Page 11 Notes SS-GAMVT www.goodmanmfg.com...
- Page 12 Notes Our continuing commitment to quality products may mean a change in specifications without notice. ©2023 • Houston, Texas • Printed in the USA www.goodmanmfg.com SS-GAMVT...
