Goodman AHVE Series Manual

Product Features
• Electronic Expansion Valve (EEV) for
cooling and heat pump applications.
• 7mm evaporator coil tube size
• Variable-speed ECM blower motor
• Compatible with Amana® brand smart thermostat
• Provides constant CFM over a wide range of static
pressure conditions independent of duct system
• CFM indicator
• Thermostat provides adjustable low-
CFM for efficient fan-only operation
• All-aluminum evaporator coil
• Fault recall of six most recent faults
• Improved humidity and comfort control
• AHRI certified; ETL listed
• Coil mounting track for quick repositioning
• Rigid SmartFrame™ cabinet
• UL 60335 2-40 Compliant

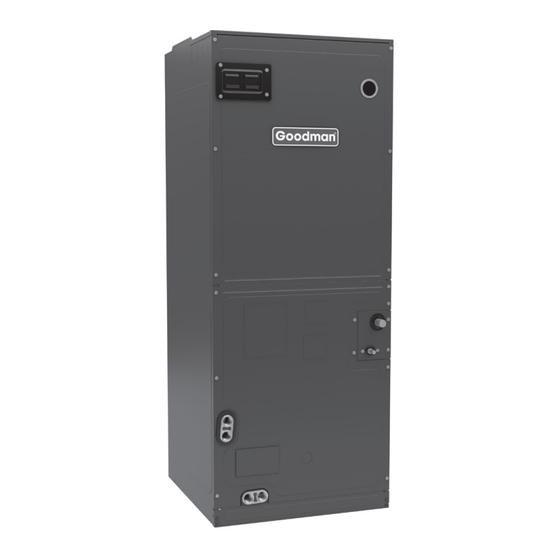

SS-GAHVE* (115V)
Multi-Position, Variable-Speed,
ECM-Based Air Handler with In-
ternal EEV, Communicating For
Cabinet Features
• Cabinet air leakage less than 2.0% at 1.0 inch H₂O when
tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 1.4% at 0.5 inch H₂O when
tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain pan
with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
* Complete warranty details available from your local dealer or at www.amana-hac.com To receive the
10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online
registration is not required in California or Québec.
www.goodmanmfg.com
AHVE* (115V)
S-Series matchups
1½ to 5 Tons
Contents
Nomenclature ....................................... 2
Product Specifications .......................... 3
Dimensions ........................................... 4
Wiring Diagram ..................................... 5
Accessories ........................................... 6
12/23
