Goodman AWST Series Manual

Product Features
• AWST Models: Equipped with
a fully adjustable TXV
• Direct-drive, multi-speed motors allows
air volume variation for heating/cooling
• Sequence-controlled, rust-resistant
nickel chromium heating elements
of 3, 5, 8, and 10 kW
• Aluminum tubing coils on all models
• Cabinet air leakage less than 2.0% at
1.0 inch H₂O when tested in accor-
dance with ASHRAE standard 193
SS-GAWST
• Cabinet air leakage less than 1.4% at 0.5 inch
H₂O when tested in accordance with ASHRAE
standard 193
• Factory-installed pull-type disconnect
• Thermoplastic drain pan with bottom
primary and secondary drain connections
• Built-in filter rack (filter included)
• Large chassis (2½- and 3-ton units) –
front return only
• Small chassis (1½- and 2-ton units) –
front or bottom return
• Wall-hanging bracket provided
• AHRI Certified; ETL Listed
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts
Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not
required in California or Quebec. The duration of warranty coverages in Texas differs in some cases.
www.goodmanmfg.com

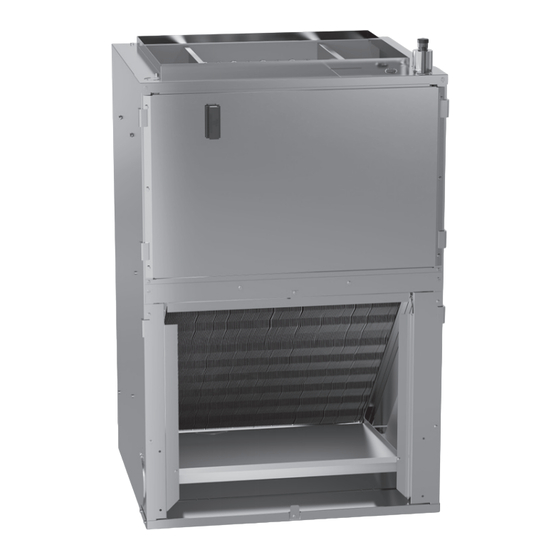

AWST Series
Wall-Mount Air Handler
1- to 3 Tons
1/2
Contents
Nomenclature .........................................2
Accessories .............................................2
Product Specifications ............................3
Dimensions .............................................7
Airflow Data ............................................9
Wiring Diagram .....................................11
10/23
Supersedes 08/22
