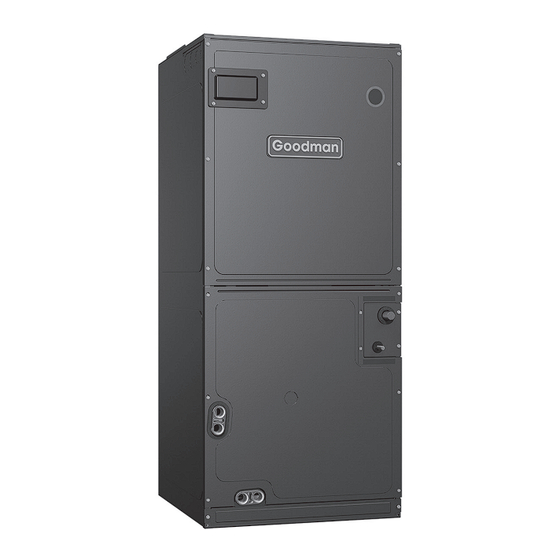

Goodman AMVT42CP1400 Manual

Product Features
• Internal factory-installed thermal expansion
valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge
• Commissioning and diagnostics via on board Bluetooth
with the CoolCloud™ phone and tablet application
• Auto configuration of the airflow
and tonnage in communicating mode
• Provides constant CFM over a wide range of static
pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for
efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump
and cooling applications
• All-aluminum evaporator coil
• AHRI certified; ETL listed
• UL 60335 2-40 Compliant
SS-GAMVT
Multi-Position, Variable-Speed,
• Rigid SmartFrame™ cabinet
• Cabinet air leakage less than 2.0% at 1.0 inch
H₂O when tested in accordance with ASHRAE
standard 193
Technology
™
• Cabinet air leakage less than 1.4% at 0.5 inch
H₂O when tested in accordance with ASHRAE
standard 193
• Horizontal or vertical configuration capabilities
• 21" depth for easier attic access
• DecaBDE-free thermoplastic drain
pan with secondary drain connections
• Screw-less sides and back helps to reduce
condensation when installed in humid locations
• Foil-faced insulation covers the internal
casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Glue-less cabinet insulation retention
• Tool-less filter access
• Field Installed 3 kW - 25 kW electric heater
kits available
* Complete warranty details available from your local dealer or at www.goodmanmfg.com. To receive the 10-Year Parts Limited
Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California
or Québec. The duration of warranty coverage in Texas and Florida differs in some cases.
www.goodmanmfg.com
AMVT Series
ECM-Based Air Handler
with Internal TXV
ComfortBridge™ Compatible
Contents
Air Handler Nomenclature .................... 2
Heater Kit Nomenclature ...................... 2
Product Specifications ........................... 3
Dimensions ............................................ 4
Airflow Data ........................................... 5
Heat Kit Data .......................................... 6
Wiring Diagram ...................................... 8
Accessories ............................................ 9
1½ to 5 Tons
10/23
Supersedes 12/22
