- Page 1 Safety instructions VEGAPULS 6X Nonincendive Four-wire Modbus Document ID: 1022892...
-
Page 2: Table Of Contents
Certificate of Conformity CSA 22 CA 80127301 (Document ID: 66229) • SIL Safety Manual (Document ID: 66494) • Further related documentation is available by entering the serial number of the device in the search field on "www.vega.com" Editing status: 2024-02-05 VEGAPULS 6X... -
Page 3: Scope

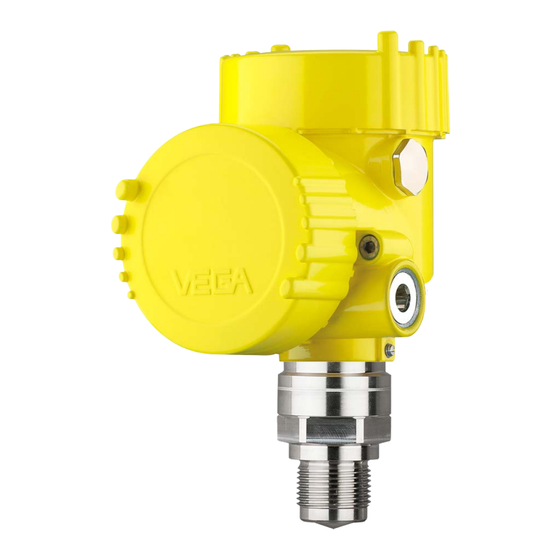

Scope These safety instructions apply to the radar sensors VEGAPULS 6X of type series: • PS6X(*).a-b-c-de-f-g-hi-j-k-l-m-*A-p-q-r-s-t-u With the electronics versions: • W - Four-wire Modbus The VEGAPULS 6X are approved acc. to c-CSA-us: CSA 22 CA 80127301 (certificate number on the type label) The classification as well as the respective standards are stated in the Certificate of Conformity. - Page 4 Antenna version with horn antenna (ø 40 mm) with horn antenna (ø 48 mm) with horn antenna (ø 75 mm) Additional equipment without with rinsing air connection with purging connection with reflux valve Antenna system DD-lacquered Device Norsok lacquered Material / Seal / Process temperature PEEK / FKM (SHS FPM 70C3 GLT) / -40 … +150 °C PEEK / FKM (SHS FPM 70C3 GLT) / -40 …...
- Page 5 Material / Seal / Process temperature Ceramic / FFKM (Kalrez 6375) / -20 … +250 °C Ceramic / FFKM (Perlast G75B) / -15 … +250 °C Ceramic / EPDM / -40 … +150 °C PEEK / PEEK / -40 … +150 °C PEEK / FKM (COG Vi780) / -40 … +150 °C PEEK / EPDM (Freudenberg 291) / -20 …...
-
Page 6: Application Area
Functional safety SIL (IEC 61508) with IT Security (IEC 62443-4-2) without with Overfill protection without with Food/pharmaceutical certificate without with Ship approval without with Secondary Line of Defense without with Application area Division - The VEGAPULS 6X are suitable for applications Division 2 Application area of VEGAPULS 6X (electronics version W): Type code Explosion Type of protection marking group Electronics version "W" - four-wire Modbus PS6X(*).2*W*********W*A****** Groups A, B, C, Cl l, Div 2, Gp ABCD T6…T1; D, F, G Cl II, Div 2 Gp FG, T*°C;... -
Page 7: Specific Conditions Of Use ("X" Identification)
Specific conditions of use ("X" identification) The following list describes the special operating conditions of VEGAPULS 6X. • In the application the following applies to the radar sensors VEGAPULS 6X in the versions with Aluminium/Titanium: – Installation must be carried out in such a way that the generation of sparks as a result of impact and friction processes between Aluminium/Titanium and steel is excluded. - Page 8 Process pressure Horn antenna for high temperature -1 … +160 bar PVDF version with thread -1 … +3 bar Cable glands, threaded openings Type Thread Cable diameter [mm] Torques [Nm] Hummel EXIOS A2F 1.608.2003.50 M20 x 1.5 6 … 12 mm Hummel EXIOS A2F 1.608.1203.70 ½ NPT 6 …...
-
Page 9: Operation
• Modifications on the instrument can influence the explosion protection and hence the safety • Modifications must only be carried out by employees authorized by VEGA • Note the relation between process temperature on the sensor/antenna and the permissible ambient temperature on the electronics housing. For permissible temperatures, see the respec- tive temperature tables. -
Page 10: Electrostatic Charging (Esd)
Electrostatic charging (ESD) In case of instrument versions with electrostatically chargeable plastic parts, the danger of electro- static charging and discharging must be taken into account! The following parts can charge and discharge: • Lacquered housing version or alternative special lacquering • Plastic housing, plastic housing parts •... - Page 11 • Air with an oxygen content of 21 % (v/v) Additional measures are required for operation of the VEGAPULS 6X outside these conditions. The operation of the VEGAPULS 6X outside the above conditions is the sole responsibility of the operator. The thermal measurements for determining the following temperature tables were carried out for process temperatures above +150 °C with insulation.
-
Page 12: Thermal Data - Gas
9.2 Thermal data - Gas VEGAPULS 6X with plastic horn antenna for process temperatures up to max. +80 °C PS6X(*).2*W**B*AT/AU/AV************ Aluminium/stainless steel housing, version A, H, D, S, V, W T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window T6 … T1 -40 … +80 °C -60 … +75 °C -50 … +75 °C VEGAPULS 6X with lens antenna for process temperatures up to max. +150 °C PS6X(*).2*W**C************** Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 …... - Page 13 T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +95 °C -60 … +72 °C -50 … +72 °C -60 … +130 °C -60 … +67 °C -50 … +67 °C -60 … +150 °C -60 … +65 °C -50 …...
- Page 14 T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +150 °C -60 … +61 °C -50 … +61 °C T2 … T1 -60 … +250 °C -60 … +54 °C -50 … +54 °C VEGAPULS 6X with flange, with plastic plating for process temperatures up to max. +150 °C PS6X(*).2*W**F************** Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the...
- Page 15 T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window T3 … T1 -60 … +195 °C -60 … +58 °C -50 … +58 °C Stainless steel housing, version V, W T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 … +75 °C -50 …...
- Page 16 VEGAPULS 6X with thread for process temperatures up to max. +150 °C PS6X(*).2*W**T************** Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 … +75 °C -50 … +75 °C -60 … +95 °C -60 … +70 °C -50 … +70 °C -60 … +130 °C -60 … +59 °C -50 …...
- Page 17 T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +130 °C -60 … +63 °C -50 … +63 °C T3 … T1 -60 … +150 °C -60 … +54 °C -50 … +54 °C VEGAPULS 6X with thread for process temperatures up to max. +250 °C PS6X(*).2*W**T************** Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb)
- Page 18 T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window T4 … T1 -60 … +80 °C -60 … +75 °C -50 … +75 °C Stainless steel housing, version V, W T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 … +74 °C -50 …...
- Page 19 VEGAPULS 6X with hygiene LA, LB for process temperatures up to max. +150 °C PS6X(*).2*WLAH*A1/A9************ PS6X(*).2*WLBH*A1/A9************ Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -xx … +80 °C -60 … +74 °C -50 … +74 °C -xx … +95 °C -60 … +73 °C -50 … +73 °C -xx … +130 °C -60 …...
- Page 20 Stainless steel housing, version V, W T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 … +73 °C -50 … +73 °C -60 … +95 °C -60 … +63 °C -50 … +63 °C -60 … +130 °C -60 … +41 °C -50 …...
- Page 21 VEGAPULS 6X with horn antenna for process temperatures up to max. +440 °C PS6X(*).2*W**L/N/D*AN************ Aluminium housing, version A, H, D, S T-class Permissible process tem- Permissible ambient temperature range on the electronics perature range on the in zone 1 (EPL Gb) antenna in zone 0 (EPL Ga) without inspection window with inspection window -60 … +80 °C -60 … +75 °C -50 … +75 °C -60 … +95 °C -60 … +72 °C -50 … +72 °C -60 … +130 °C -60 … +67 °C -50 …...
-
Page 22: Thermal Data - Dust
-50 °C (with PLICSCOM) or -60 °C (without PLICSCOM). For process temperatures lower than the maximum values given in the above tables, higher ambient temperatures on the housing may be permissible. For details, contact VEGA. The application conditions during operation without hazardous atmospheres can be found in the manufacturer information in the operating instructions manual. - Page 23 Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range of the electronics perature on the antenna in in Zone 21 on the housing zone 20 electronics housing Stainless steel -40 … +76 °C -40 … +65 °C Ambient temperature +100 °C V, W +35 K VEGAPULS 6X with G1½, 1½ NPT, PVDF antenna PS6X(*).2*W**T*AM************ Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range...
- Page 24 • AW PTFE / PTFE / -60 … +150 °C • AY PTFE (8 mm) / PTFE / -60 … +150 °C • A2 PFA (8 mm) / PFA / -60 … +150 °C VEGAPULS 6X with flange with plastic plating or with integrated antenna system (threaded connection) or with lens antenna for process temperatures up to max. +195 °C PS6X(*).2*W**F*AX/AZ/A3/A4/A5*********** PS6X(*).2*W**T*AB************ PS6X(*).2*W**C*AB************ Housing Permissible process Permissible ambient Surface temperature...
- Page 25 Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range of the electronics perature on the antenna in in Zone 21 on the housing zone 20 electronics housing Stainless steel -xx … +95 °C -40 … +50 °C Ambient temperature +97 °C V, W +35 K -xx … +130 °C -40 … +57 °C Ambient temperature +132 °C +35 K...
- Page 26 • AF PEEK / FFKM (Kalrez 6375) / -20 … +250 °C • AH PEEK / FFKM (Perlast G75B) / -15 … +250 °C • AK PEEK / FFKM (Perlast G74S) / -15 … +250 °C VEGAPULS 6X flange with horn antenna for process temperatures up to max. +150 °C PS6X(*).2*W**G/K/L/N/D*AP/AS************ Housing Permissible process Permissible ambient Surface temperature Max. surface tem-...
- Page 27 Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range of the electronics perature on the antenna in in Zone 21 on the housing zone 20 electronics housing Stainless steel -xx … +95 °C -40 … +47 °C Ambient temperature +97 °C V, W +35 K -xx … +130 °C -40 … +57 °C Ambient temperature +132 °C +35 K...
- Page 28 VEGAPULS 6X flange with horn antenna for process temperatures up to max. +250 °C PS6X(*).2*W**G/K/L/N/D*AQ/AR************ Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range of the electronics perature on the antenna in in Zone 21 on the housing zone 20 electronics housing Aluminium -xx … +95 °C -40 … +51 °C Ambient temperature +97 °C A, D, H, S +35 K -xx … +130 °C -40 …...
- Page 29 Housing Permissible process Permissible ambient Surface temperature Max. surface tem- (electronics) temperature range temperature range of the electronics perature on the antenna in in Zone 21 on the housing zone 20 electronics housing Aluminium -196 / -60 / -10 / -35 / Ambient temperature +97 °C -40 … +95 °C -40 … +54 °C A, D, H, S +35 K -196 / -60 / -10 / -35 /...
- Page 30 Notes VEGAPULS 6X...
- Page 31 Notes VEGAPULS 6X...
- Page 32 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2024 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
