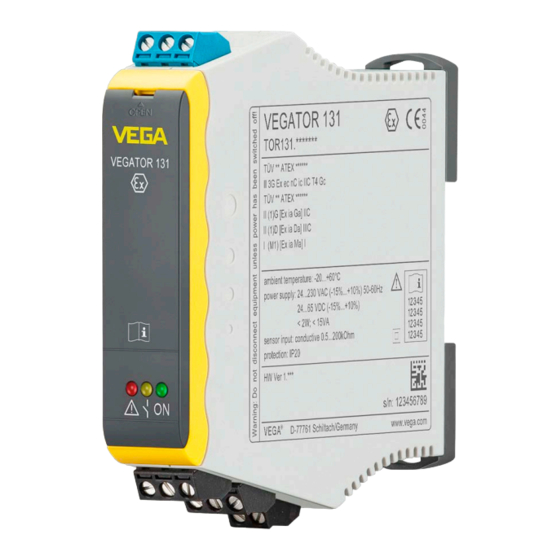

Vega VEGATOR 131 Operating Instructions Manual
Single-channel controller for point level detection with conductive sensors
Hide thumbs
Also See for VEGATOR 131:
- Operating instructions manual (28 pages) ,
- Operating instructions manual (28 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vega VEGATOR 131
Summary of Contents for Vega VEGATOR 131

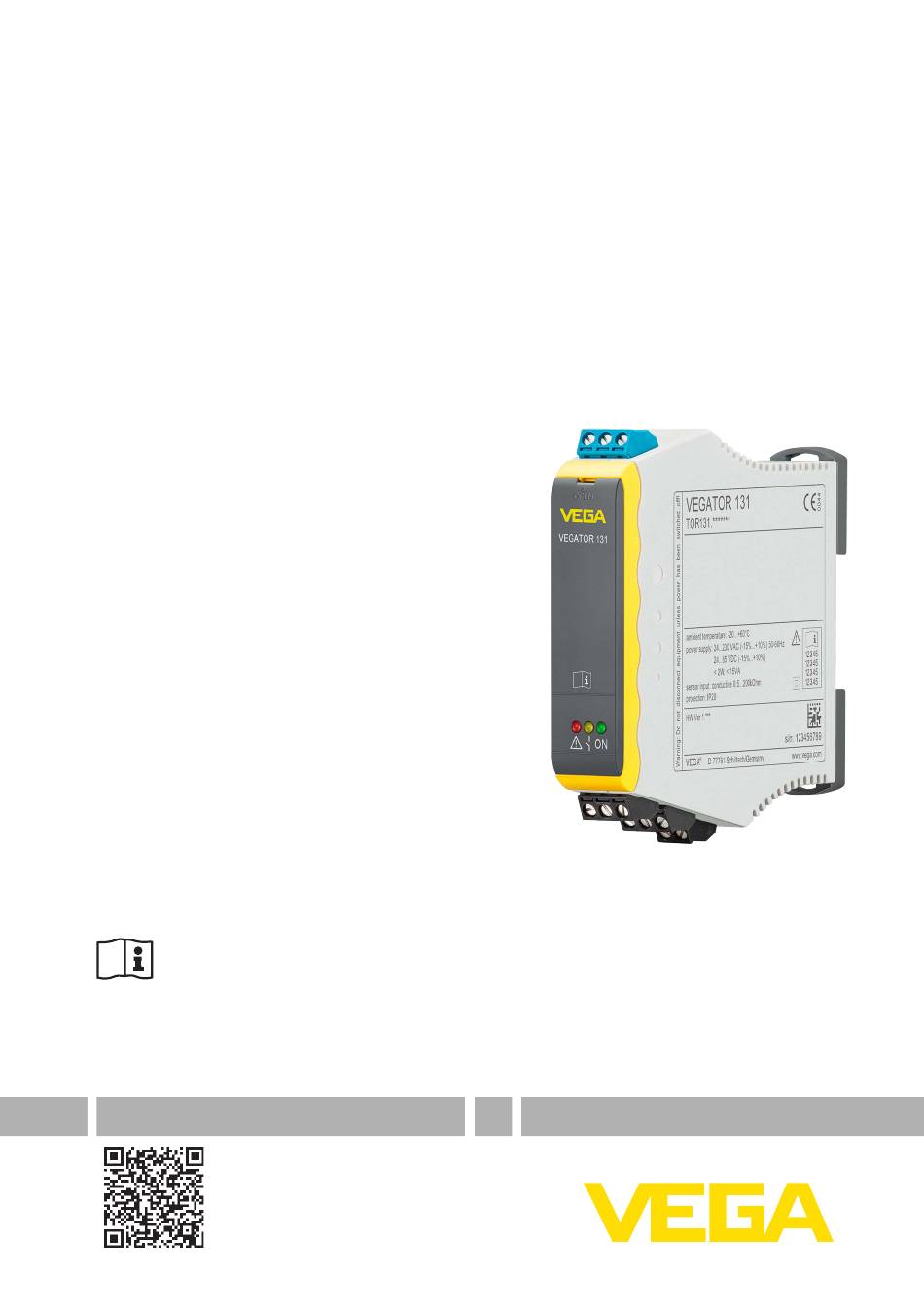

- Page 1 Operating Instructions Single-channel controller for point level detection with conductive sensors VEGATOR 131 Document ID: 46836...
-
Page 2: Table Of Contents
9 Certificates and approvals ....................22 Approvals for Ex areas ....................22 Conformity ........................22 Environment management system ................. 22 10 Supplement ..........................23 10.1 Technical data ........................ 23 10.2 Dimensions ........................25 10.3 Industrial property rights ....................26 VEGATOR 131 •... - Page 3 Contents 10.4 Trademark ........................26 Supplementary documentation Information: Supplementary documents appropriate to the ordered version come with the delivery. You can find them listed in chapter "Product descrip- tion". Editing status: 2024-02-05 VEGATOR 131 •...
-
Page 4: About This Document
Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work. -
Page 5: For Your Safety
During work on and with the device, the required personal protective equipment must always be worn. Appropriate use VEGATOR 131 is a universal controller for connection of conductive sensors. You can find detailed information about the area of application in chapter "Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions. -
Page 6: Safety Instructions For Ex Areas
Canadian Electrical Code (CEC Part I) (Canada). Safety instructions for Ex areas For applications in hazardous areas (Ex), only devices with corre- sponding Ex approval may be used. Observe the Ex-specific safety instructions. These are an integral part of the device documentation and are enclosed with every device with Ex approval. VEGATOR 131 •... -
Page 7: Product Description
Open the VEGA Tools app and enter the serial number under "Documentation". Principle of operation Application area The VEGATOR 131 is a single channel controller for level detection conductive sensors of series EL. Via the integrated relay simple con- trol tasks can be solved. Typical applications are monitoring functions such as overfill or dry run protection, Optionally an additional second relay can be ordered. -
Page 8: Adjustment
Not exposed to corrosive media • Protected against solar radiation • Avoiding mechanical shock and vibration • Storage and transport Storage and transport temperature see chapter "Supplement - temperature Technical data - Ambient conditions" • Relative moisture 20 … 85 % VEGATOR 131 •... -
Page 9: Mounting
Mounting General instructions Mounting options VEGATOR 131 is designed for carrier rail mounting (top hat rail 35 x 7.5 according to DIN EN 50022/60715). Due to its protection rating of IP20, the instrument is suitable for mounting in switching cabinets. It can be mounted horizontally and vertically. -
Page 10: Connecting To Power Supply
Voltage supply The data for power supply are specified in chapter "Technical data". Connection cable The voltage supply of VEGATOR 131 is connected with standard cable according to the national installation standards. The sensors are connected with standard two-wire cable without shielding. If electromagnetic interference is expected which is above the test values of EN 61326 for industrial areas, shielded cable should be used. -
Page 11: Connection Procedure
3. When using several instruments on one sensor (Primary/Second- ary operation), connect terminal 3 of all instruments together 4. Connect switched-off power supply to terminal 16/17 5. Connect relay to terminal 10/11/12 6. With option second relay: Connect terminal 13/14/15 The electrical connection is finished. VEGATOR 131 •... -
Page 12: Wiring Plan
/ 1 2 3 OPEN 10 11 12 13 14 15 16 17 Fig. 1: Wiring plan VEGATOR 131 Sensor circuit (terminal 1 + 2) and Primary/Secondary connection (terminal Relay output Fail safe relay/second relay output (optional) Voltage supply Sensor When using a single-rod electrode, terminal 1 is connected to the metallic vessel and terminal 2 to the electrode. -
Page 13: Setup
– Operating control lamp – Mains voltage on, instrument is operating • – Fault indicator – Fault on the sensor circuit due to sensor failure or line break – The relay deenergises in case of failure • Yellow VEGATOR 131 •... - Page 14 DIL switch block The DIL switch block is located behind the front cover. The individual switches are assigned as follows: Fig. 3: DIL switch VEGATOR 131 Mode (min./max. adjustment) 2 Line monitoring Off/On Switch-on delay 2 seconds Switch-on delay 6 seconds...
- Page 15 Function relay 2 (op- A second relay can be ordered as an option for VEGATOR 131. The tional) function of the second relay is determined via this DIL switch. It can be configured as fail safe relay or as second level relay. When config-...
-
Page 16: Fail Safe Relay (Optional)
(without fault signal). In case of fault, the relay is switched off (safe currentless state). The fail-safe relay switches to the safe state under the following conditions: • Line break between sensor and VEGATOR 131 (only if line break monitoring is fitted) • Internal device diagnosis recognises an error •... -
Page 17: Proof Test
Switching point monitoring (overflow protection): Fill the ves- sel up to the set switching point – When the switching point is reached, the respective relay must deenergize • Switching point monitoring (dry run protection): Empty the vessel down to the set switching point VEGATOR 131 •... -
Page 18: Function Table "Point Level
LED yel- LED red Relay Fail safe (fault) relay (op- (output) tional) Uncovered Covered Dry run protection, point level (min.) Sensor Controller Level Electrode LED yel- LED red Relay Fail safe (fault) relay (op- (output) tional) Covered Uncovered VEGATOR 131 •... -
Page 19: Diagnostics And Servicing
Should these measures not be successful, please call in urgent cases 24 hour service hotline the VEGA service hotline under the phone no. +49 1805 858550. The hotline is also available outside normal working hours, seven days a week around the clock. -
Page 20: How To Proceed If A Repair Is Necessary
Check if the conductivity of your product is at uct too low least 7.5 µS/cm • Welded contacts - for Exchange VEGATOR 131. If necessary, integrate example after a short- a fuse into the contact circuit circuit Switching function wrong... -
Page 21: Dismount
If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGATOR 131 •... -
Page 22: Certificates And Approvals
DIN EN ISO 14001. Help us to meet these requirements and observe the environmental instructions in the chapters "Packaging, transport and storage", "Dis- posal" of this instructions manual. VEGATOR 131 •... -
Page 23: Supplement
24 … 65 V (-15 %, +10 %) Max. power consumption 2 W (8 VA) Sensor input Quantity 1 x for connection of a conductive electrode Input type Active (sensor power supply by VEGATOR 131) Measured value transmission Alternating voltage Response resistor 500 Ω … 200 kΩ, adjustable Hysteresis 100 Ω … 100 kΩ... - Page 24 Ʋ Reference voltage 253 V AC If inductive loads or stronger currents are switched through, the gold plating on the relay contact surface will be permanently damaged. The contact is then no longer suitable for switching low-level signal circuits. VEGATOR 131 •...
-
Page 25: Dimensions
For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. 10.2 Dimensions... -
Page 26: Industrial Property Rights
Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com. - Page 27 Fail safe relay WRA 15 Fault – Fault signal 19 Fault rectification 19 Grounding 10 LEDs 13 Limit level 15 Line monitoring 14 Mode 14 Overflow protection 14 Potential equalisation 10 Potentiometer 15 Primary/Secondary Device 15 Protection rating 9 QR code 7 Repair 20 VEGATOR 131 •...
- Page 28 Notes VEGATOR 131 •...
- Page 29 Notes VEGATOR 131 •...
- Page 30 Notes VEGATOR 131 •...
- Page 31 Notes VEGATOR 131 •...
- Page 32 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2024 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
