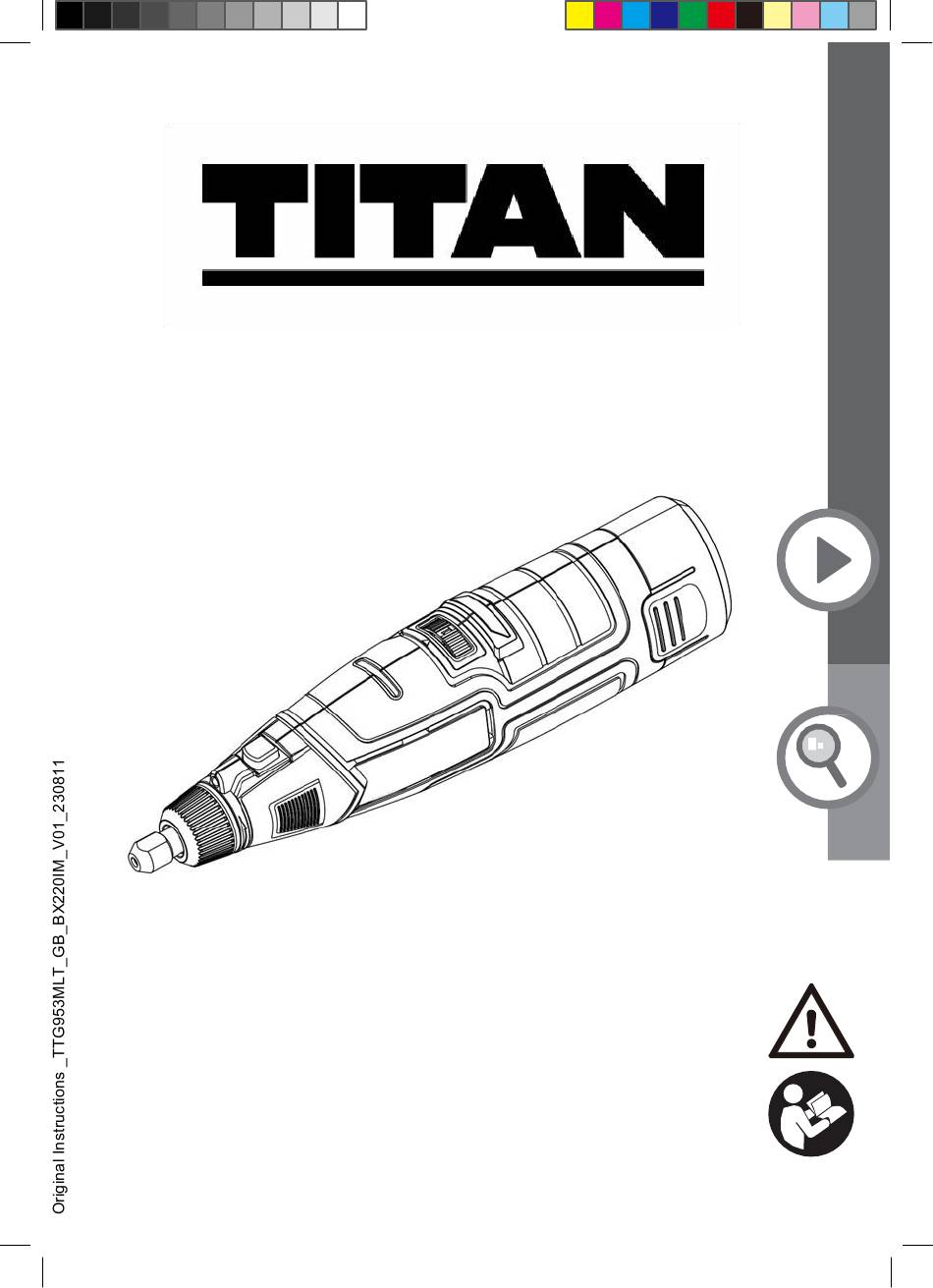

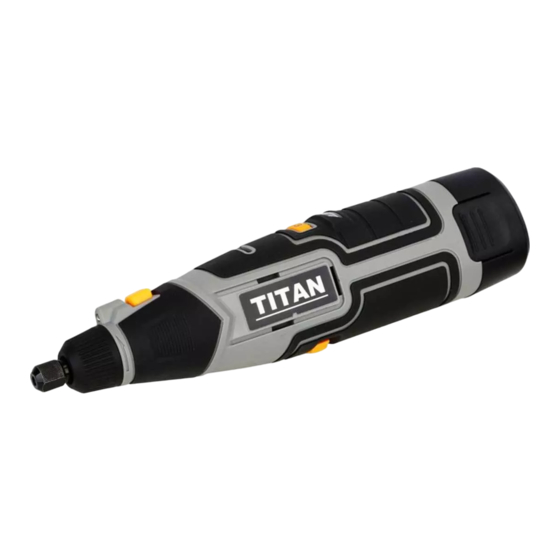

- Page 1 TTG953MLT WARNING: Read the instructions before using the product! MNL_TTG953MLT_GB_V1_230811.indd 1 04/13/23 10:37 AM...
- Page 2 Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. Getting started... Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Declarations of conformity...
-
Page 3: Safety Warnings
Safety information TTG953MLT Safety warnings General power tool safety warnings WARNING! Read all safety warnings, instructions, power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 4 Safety information TTG953MLT >Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. >Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
- Page 5 Safety information TTG953MLT > Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. > Do not overreach. Keep proper footing and balance at all times.
- Page 6 Safety information TTG953MLT >Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Page 7 Safety information TTG953MLT >When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
- Page 8 Safety information TTG953MLT Safety warnings for cordless rotary tools Safety warnings common for grinding, sanding, wire brushing, polishing, carving or abrasive cutting-off operations: > This power tool is intended to function as a grinder, sander, wire brush, polisher, carving or cut-off tool.
- Page 9 Safety information TTG953MLT > Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels for chips and cracks, sanding drum for cracks, tear or excess wear, wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect for damage or install an undamaged accessory.
- Page 10 Safety information TTG953MLT > Use clamps to support workpiece whenever practical. Never hold a small workpiece in one hand and the tool in the other hand while in use. Clamping a small workpiece allows you to use your hand(s) to control the tool. Round material such as...
- Page 11 Safety information TTG953MLT Kickback and related warnings Kickback is a sudden reaction to a pinched or snagged rotating accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation.
- Page 12 Safety information TTG953MLT Safety warnings specific for grinding and abrasive cutting-off operations > Use only wheel types that are recommended for your power tool and only for recommended applications. For example do not grind with the side of a cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter.
- Page 13 Safety information TTG953MLT > Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully re-enter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece.
- Page 14 Safety information TTG953MLT Additional safety warnings for charger > This charger can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the charger in a safe way and understand the hazards involved.
- Page 15 Safety information TTG953MLT > If gas or smoke is emitted during charging disconnect the charger from the power supply and move to a well ventilated area. > Always disconnect the charger when the charging is complete. > Do not charge a damaged battery pack.
- Page 16 Safety information TTG953MLT > Do not expose battery to water , or allow the battery to get wet. > If you intend to store a battery for a period without use then store battery at room temperature (19 ℃ to 25 ℃) , charged to about 30 –50% of capacity.
- Page 17 Safety information TTG953MLT To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day. These limits are not a large amount of dust: when compared to a penny it is tiny –...
- Page 18 Safety information TTG953MLT •Arsenic and chromium from chemically treated timber. Your risk from these exposures varies, depending upon how often you do this type of work. To reduce your exposure to these chemicals: •Work in a well-ventilated area. •Work with approved safety equipment, such as those dust masks that are specially designed to filter microscopic particles.
- Page 19 Safety information TTG953MLT Warning: Identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
- Page 20 Safety information TTG953MLT >Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property. >Switch off and disconnect from the power supply if there are malfunctions. Have the product checked by a qualified professional and repaired, if necessary, before you operate it again.
- Page 21 Safety information TTG953MLT Symbols On the product, the rating label and within these instructions you will find among others the following symbols and abbreviations. Familiarize yourself with them to reduce hazards like personal injuries and damage to property. Volt, (alternating voltage) °C...
- Page 22 Safety information TTG953MLT Symbols WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. Crossed out dust bin. Batteries and battery packs should not be disposed of with household waste.
-
Page 23: Your Product
TTG953MLT Your product Your product 9. Collet 1. Speed adjuster 10. Charger 2. Battery indicator lights 11. Charging indicator light (Green) 3. Battery release button x2 12. Charging indicator light (Red) 4. Battery pack 13. Spanner 5. Tensioning nut 14. Vents 6. - Page 24 Technical specifications TTG953MLT Rotary tool : 12 V > Rated voltage > Rated speed n 5000 - 25000/min Ф 3.2mm(1/8”) > Collet clamping capacity > Max. accessory diameter : Ф 25 mm > Weight : Approx. 0.5 kg (including battery pack) Battery pack >...
-
Page 25: You Will Need
Your product / Before you start TTG953MLT Rating Label Explanation TTG953MLT = MODEL NUMBER TT = TITAN(Brand) G=12V Li-Ion 953=Serial no. MLT=Rotary tool Unpacking > Unpack all parts and lay them on a flat, stable surface. > Remove all packing materials and shipping devices, if applicable. - Page 26 Before you start TTG953MLT Setup WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product!
- Page 27 Your product / Before you start TTG953MLT Installing > Insert the collet (9) into the shaft (28) and then screw the tensioning nut (5) onto the shaft (28). Press the shaft lock button (7) down if necessary while rotating the tensioning nut (5) (Fig.3&4) .
- Page 28 Before you start TTG953MLT NOTE: The accessory should not be mounted more than 10 mm from the tensioning nut. Exceeding this distance could cause vibration or a broken spindle. Below figure for detail dimension relations. = Max. 10mm = Max. 40mm = Min.
-
Page 29: Battery Pack
Your product / Before you start TTG953MLT Battery pack Release / Attach > Press the battery release button (3) on both side of the battery pack (4) and slide the battery pack from the product (Fig. 9). > Align the battery pack (4) to the bottom of the handle (30) and slide the battery pack in to attach it. -
Page 30: Battery Indicator Lights
Before you start TTG953MLT > Insert the battery pack (4) in the charger (10) (Fig. 11). Connect the charger to the power supply. The indicator lights(11/12) on the charger show the status as described in below table. Green light (11) - Page 31 TTG953MLT more detail... Product functions Operation Care and maintenance Trouble shooting Recycling and disposal Guarantee Declarations of conformity MNL_TTG953MLT_GB_V1_230811.indd 31 04/13/23 10:37 AM...
-
Page 32: Intended Use
Product functions TTG953MLT Intended use The rotary tool is intended for grinding, cutting, sanding, polishing and wire brushing of wood, plastic and metal. It is ideally suited for working on hard to reach areas. Please refer to the instructions supplied by the accessory manufacturer. - Page 33 Product functions TTG953MLT Approx. speed Dial number (RPM) 5,000 9,000 13,000 17,000 21,000 25,000 Fig.14 The following are recommendations only and not binding. When carrying out practical work, try it out on test pieces to see which settings are ideal for the material you are working on.
- Page 34 TTG953MLT Product functions Accessory WARNING! Always use the correct accessory according to the intended use! Observe the technical requirements of this product (see section "Technical specifications” ) when purchasing and using accessories! Some accessories are very sharp and become hot during use!
- Page 35 Product functions TTG953MLT Accessory Picture Description Aluminum oxide grinding wheel Aluminum is used for sharpening lawn oxide grinding mower blades, screwdriver tips, wheel knives, scissors, chisels and other cutting tools. Use to remove flash from metal castings, deburring any metal after cutting, smoothing welded joints, grinding off rivets and removing rust.
- Page 36 Product functions TTG953MLT Accessory Picture Description Steel Steel wire brush for rust or Wire Brush corrosion removing, polishing of metals. Radial Radial nylon brush for cleaning, polishing of silver, jewellery. nylon brush WARNING! For steel wire brush use: do not have people in the direction when polishing.
-
Page 37: General Operation
Product functions / operation TTG953MLT Application examples/selecting a suitable tool Function Accessories Usage (min–max) mm, see page 28 Carving, cutting and Milling HSS cutter slotting in wood and 15–25 plastics. Engraving Engraving cutter 15–30 Labelling, handicraft Polishing precious metals Felt wheel 15–30... - Page 38 TTG953MLT Operation WARNING! Keep apply light pressure on the tool. Excessive pressure on the tool will only cause a poor finish and overloading of the motor. WARNING! Avoid bouncing and snagging the accessory, especially when working corners, sharp edges etc. This can cause loss of control and kickback.
-
Page 39: After Use
Operation / Care and maintenance TTG953MLT NOTICE: Do not cover vents (14) when working , or it may cause over- heating and damage to the tool. NOTE: If the tool is operated continuously until the battery has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery. -
Page 40: General Cleaning
Care and maintenance TTG953MLT > Keep the product clean. Remove debris from it after each use and before storage. > Regular and proper cleaning will help ensure safe use and prolong the life of the product. > Inspect the product before each use for worn and damaged parts. Do not operate it if you find broken and worn parts. - Page 41 Care and maintenance TTG953MLT As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows. The wire, which is coloured blue, must be connected to the terminal, which is marked with N or coloured black.
-
Page 42: Troubleshooting
Care and maintenance / Troubleshooting TTG953MLT Transportation > Switch the product off and remove the battery pack. > Attach transportation guards, if applicable. > Always carry the product by its handle (15). > Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles. -
Page 43: Recycling And Disposal
Troubleshooting / Recycling and disposal TTG953MLT Troubleshooting Problem Possible cause Solution 1. Product overloaded 4. Product suddenly 1. Remove the product stops from the workpiece and switch it on again 2. Remove and charge 2. Battery pack battery pack discharged 3. - Page 44 This product - TITAN 12V Cordless rotary tool has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
- Page 45 Declarations of conformity TTG953MLT (UK) DECLARATION OF CONFORMITY Product • Cordless Rotary Tool • TTG953MLT • Serial number: from 000001 to 999999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 1 Paddington Square London W2 1GG United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 46 • 12V Cordless rotary tool / Petit outil rotatif 12V / Małych narzędzi wysokoobrotowych 12V / Mică unealtă rotativă 12V / Herramienta rotativa pequeña a batería 12V/ Ferramenta pequena rotativa a bateria 12V • TTG953MLT • SN: 000001-999999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
- Page 47 2006/42/EC as amended Machinery Directive 2014/35/EU Directive Electrical Safety: Low-voltage electrical equipment 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive Directive 2006/42/CE relative aux machines 2014/35/UE Directive Sécurité...
- Page 48 Mică unealtă rotativă / +A15:2021 Herramienta rotativa EN IEC 60335-2-29 :2021 + A1: 2021 pequeña / Ferramenta pequena rotativa EN 62233:2008 EN IEC 55014-1:2021 TTG953MLT : EN IEC 55014-2:2021 EN 62841-1:2015+AC:2015 EN IEC 61000-3-2:2019+A1:2021 +A11:2022 EN 61000-3-3:2013+A1:2019 EN 60745-2-23:2013 EN IEC 55014-1:2021...
- Page 49 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK Manufacturer: Kingfisher International Products Limited, 1 Paddington Square,London,W2 1GG United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com www.screwfix.com www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products MNL_TTG953MLT_GB_V1_230811.indd 4 9 04/13/23 10:37 AM...
