Installation and Operating Instructions

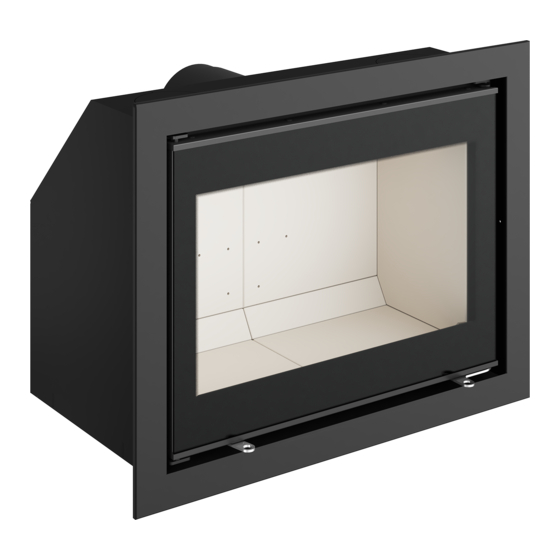

MASONRY INSERT
INSERT-800
Save this manual and keep it in a safe place that it is easy to refer to it.
The Spartherm wood insert have been tested and certified by CSA based on the
following standards: UL 127 / ULCS628. EPA : U.S.ENVIRONMENTAL PROTECTION
AGENCY Certified to comply with 2020 emissionstandards using crib wood
wood.
Appliance type : Solid Fuel Room Heater.
U.S. Test Standard: US EPA 40 CFR Part 60, Subpart 60.536
Spartherm Feuerungstechnik GmbH
Maschweg 38 · 49324 Melle
Phone +49 5422 94 41-0
www.spartherm.com
Advertisement
Table of Contents
Related Manuals for Spartherm INSERT-800
Summary of Contents for Spartherm INSERT-800
- Page 1 Installation and Operating Instructions MASONRY INSERT The Spartherm wood insert have been tested and certified by CSA based on the following standards: UL 127 / ULCS628. EPA : U.S.ENVIRONMENTAL PROTECTION INSERT-800 AGENCY Certified to comply with 2020 emissionstandards using crib wood wood.
- Page 2 INTRODUCTION AND UNIT DESCRIPTION MANUAL. the combustion oft the wood insert or increase the Safe Wood-Burning Practices SPARTHERM INSERT-800 . possibility of smoke leakage. ‘‘U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to • This appliance is designed to burn natural wood When using your wood burning appliance, follow these...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. Installation overview 6. Operation 6.1 Fire extinguishers / smoke detectors 2. Introduction 6.2 Fuel 2.1 Example of identification plate 6.3 Lighting a fire 2.2 Dimensions 6.3.1 Flash fire 2.3 Specification 6.3.2 Extended fire 2.4 General instructions 6.3.3 Smoking 2.5 General Information 7. -
Page 4: Installation Overview
1. INSTALLATION OVERVIEW SPECIFICATIONS MASONRY INSERT-800 Spartherm L 800 Insert Insert-800 Weight of Insert 286 lbs Insert exterior: Height/width/depth/ h 24 3/16‘‘‘ (inches) w 30 13/16‘‘ d 18 11/16‘‘ Recommended amount of wood when fueling (lbs/kg) wood: 2-3 2,3 kg/hr logs of wood of app. -
Page 5: Introduction
It is IMPORTANT to use dry wood that has a moisture con- The Spartherm masonry insert have been tested and cer- • Young children should be carefully supervised when • If the appliance is not properly installed, a house tent of less than 18%. -
Page 6: Example Of Identification Plate
U.S. Enviroment Protection Agency: Certified to comply with 2020 Particulate emission standards using crib wood: emission rate 1.3 g/hr Particulate emission standards using crib wood: emission rate 1.3 g/hr Model: Spartherm Cassette 800 Insert Model: Spartherm Cassette 800 Insert Date of Manufacture... -
Page 7: Dimensions
2.2 DIMENSIONS Insert-800 18 11/16" (474 mm) 30 3/16" (766 mm) 24 3/16" (614 mm) 30 13/16" (782 mm) 6" (153 mm) Example shown: 800... -
Page 8: Specification
After extended periods of non-operation such as following burning appliance should be designed with the volume a vacation or a warm weather season, the appliance may least amount of restriction possible to enable the Insert-800 1.56 cuft 19,931.BTU/h 20.406. BTU/h 6"... -
Page 9: Combustion Air
To connect the separate combustion air directly to the unit you need to have the right separate combustion air connector Ø 5”. Fix the connector directly to the unit. It can be oriented to the left side, right side or to the back. Spartherm 800 insert combustion air intake. Grills The combustion air ducts will be protected at the outside by a grill. -
Page 10: Installation Planning
3. INSTALLATION PLANNING CLOSURE VALVE PLEASE NOTE: COMBUSTION AIR INTAKE REQUIREMENTS. COMPROMISES DURING INSTALLATION. DO NOT BLOCK OR RESTRICT AIR, GRILLE OR LOUVRE OPENINGS. DO It is recommended that the 5” Combustion air intake duct NOT ADD A HOOD. KEEP HAND TOOLS IN GOOD CONDI- If you decide to connect separate combustion air it is Clean all ashes out of the inside of the existing wood is installed in acorrect manner. -
Page 11: Placement
2- ". 4. INSTALLATION Spartherm L800 Insert Distance to furniture The recommend minimum distance from stove to furni- Clearance Requirements ture is 48 inches. Note that some furniture is more easily 4.1 HEARTH EXTENSION A−A... -
Page 12: 800 Insert
4.1.1 800 INSERT 4.2 DISTANCE COMBUSTIBLE MANTLE 4.3 CHIMNEY LINER INSTALLATION This wood insert is designed and approved for installation with the following brands of chimney liner measuring 6" and 7" (152 and 178mm) in diameter. 4.3.1 LISTED CHIMNEYS This appliance must be installed with a listed 6 and 7" chimney liner system approved under the following standards: The chimney liner must conform to the Class 3 require-... -
Page 13: Examples Of Typical Installations
4.3.2 EX AMPLES OF T YPICAL INSTALLATIONS This appliance must be installed with a listed 6" (150 mm) or 7" (178 mm) chimney system approved. under the following standards: The chimney liner must conform to the Class 3 requirements of CAN/ULC-S635, Standard for Lining Systems for Existing Masonry or rain cap Factory-Built Chimneys and Vents, or CAN/ULC-S640,... -
Page 14: Masonry
4.4 MASONRY n Canada: Install only flexible or solid chimney liner from the top of the chimney to the insert flue collar. Attach a stainless steel liner connector or elbow to the liner and 4.4.1 T YPICAL EXISTING MASONRY insert onto the flue collar. Fasten with three screws. Secure the top of the liner to the chimney cap using a WARNING liner support and chimney flashing. -
Page 15: Convection
5. FINISHING 4.5 CONVECTION Circulation of convection air 5.1 BRICKS AND BAFFLES INSTALLATION The convection air enters into the wood insert via the inlet at the bottom of the wood insert. The hot air for convection comes out of the wood insert via the front outlet. WARNING OPERATION OF THE APPLIANCE WITHOUT THE BAFFLES CAN RESULT IN EXCESSIVE TEMPERATURES THAT COULD... - Page 16 Masonry Insert 800 1066037 1066040 1017407 1066039 1017407 1017463 1017406 1017463 1017406 assembly article designation art. no. quantity price group sequence individual bricks base brick, front 1017406 side wall brick 1017463 base brick, rear 1017407 rear wall brick, left 1066037 rear wall brick, right 1066039 baffle plate...
-
Page 17: Door Removal / Installation
5.2 DOOR REMOVAL / INSTALLATION WARNING BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND / OR CHIMNEY FIRE. DO NOT STRIKE OR SLAM DOOR. NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT. -
Page 18: Operation
WARNING isfactory burn.) Remember it is more efficient to burn medium sized wood, briskly, and refuel frequently than to Spartherm L 800 insert has a PRE-SET COMBUSTION AIR WARNING load the appliance with large logs that result in a smoul- SETTING. - Page 19 The Spartherm 800 insert has a pre-set combustion air DOOR ASSEMBLY - SPARE PARTS. system. ROBAX 4MM CERAMIC GLASS. USE ONLY AS PER MANUFACTURERS STANDARD AND SPARE PARTS. WARNING 1 door profile 2 glass strip, top 3 glass strip, bottom...
-
Page 20: Fire Extinguishers / Smoke Detectors
6.1 FIRE EXTINGUISHERS / SMOKE and burn at a medium low setting. The whiteness of the Cut the wood so that it will fit horizontally, front to back, 6.3 LIGHTING A FIRE bricks and the cleanliness of the glass are good indicators making for easier loading and less of a likelihood that the DETECTORS Lighting the fire in your masonry inserts is very easy if you... -
Page 21: Flash Fire
Contact local authorities for further infor- have to be cleaned at least once a year or as often as Insert-800 2,3 kg/hr When ignited this creosote makes an extremely hot fire. -
Page 22: Chimney Cleaning
7.6 CARE OF GLASS consistently without hot fires may result in significant cre- Description of part All Spartherm inserts are supplied with Robax glass in the osote accumulations in the chimney. Finish If the glass is not kept clean permanent discolouration door. -
Page 23: Troubleshooting
Appliance emits • Paint curing. See “GENERAL INSTRUCTIONS” odour. section. Spartherm Feuerungstechnik GmbH gives a 5-year war- Stove doesn’t • Wood is too wet. ranty on: burn hot • Insufficient draft? Add more pipe. enough. -
Page 24: Requirement Of Effectiveness For The Warranty
We particularly advise you to have your wood insert/ If such proof is not produced Spartherm Feuerungstechnik stove serviced regularly by a stove fitter. GmbH shall not be obliged to honour the warranty. -
Page 25: Service History
11. SERVICE HISTORY Appliance Service History This heater must be serviced annually depending on usage. Date Dealer Name Service Technician Name Service Performed Special Concerns... - Page 28 SPARTHERM THE GLOBAL BRAND FOR YOUR LIVING ROOM Your specialist dealer Spartherm Feuerungstechnik GmbH · Maschweg 38 · 49324 Melle Phone +49 5422 94 41-0 · www.spartherm.com...
