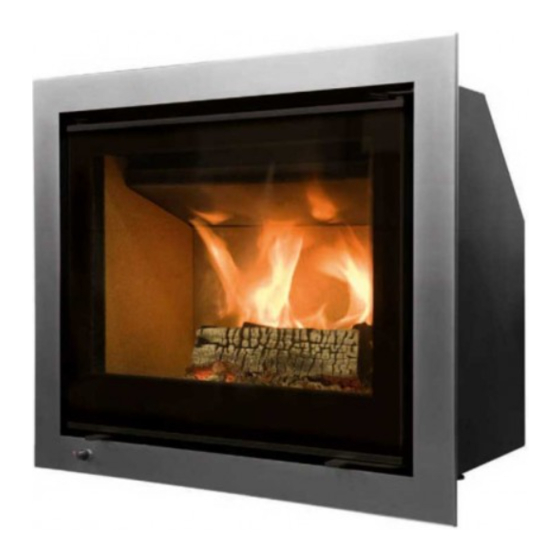

Spartherm INSERT-600 Installation And Operating Instructions Manual

Spartherm INSERT-600 Installation And Operating Instructions Manual

Masonry inserts

Advertisement

Quick Links

Installation and Operating Instructions
MASONRY INSERTS
INSERT-600
INSERT-700
Save this manual and keep it in a safe place that it is easy to refer to it.
The Spartherm wood insert have been tested and certified by CSA based on the
following standards: UL 127 / ULCS628. EPA : U.S.ENVIRONMENTAL PROTECTION
AGENCY Certified to comply with 2020 emissionstandards using cord
wood.
1
Spartherm Feuerungstechnik GmbH
Maschweg 38 · 49324 Melle
Phone +49 5422 94 41-0
Fax +49 5422 9441-14
www.spartherm.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INSERT-600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Spartherm INSERT-600

  • Page 1 Installation and Operating Instructions MASONRY INSERTS INSERT-600 The Spartherm wood insert have been tested and certified by CSA based on the following standards: UL 127 / ULCS628. EPA : U.S.ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 emissionstandards using cord INSERT-700 wood.
  • Page 2: Introduction And Unit Description

    WOOD.600 insert 1.67 g/hr 700 insert 1.14 g/hr • Make sure not to create negative pressure in the Safe Wood-Burning Practices SPARTHERM INSERT-600/700 RANGE. WARRANTY. installation room, e.g. by means of an exhaust fan PLEASE REFER TO WARRANTY CONDITIONS IN THE...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION AND UNIT DESCRIPTION CHIMNEY LINER INSTALLATION CLEANING THE GLASS CERAMIC SHEET U.S. ENVIRONMENTAL PROTECTION AGENCY Certified to comply with 2020 particulate emission standards SAFETY INFORMATION LISTED CHIMNEYS CARE OF PLATED PARTS using cordwood 600 insert 1.67 g/hr and 700 insert 1.14 g/hr, Method 28R SAFE WOOD-BURNING PRACTICES EXAMPLES OF TYPICAL INSTALLATIONS...
  • Page 4: Installation Overview

    SPECIFICATIONS MASONRY INSERT-600 / INSERT-700: 1. INSTALLATION OVERVIEW Spartherm Masonry Inserts Insert-600 Insert-700 Weight of Insert 149 lbs (67,5 kg) 275 lbs (124,5 kg) Insert exterior: Width/depth/height W 23“ D 16“ 1/8“ H21“ W 26 5/16“ D 17 5/16“ H23 (inches) 1/2“...
  • Page 5: Introduction

    The Spartherm masonry insert have been tested and away to avoid burns or clothing ignition. As with all plastic bags, these are not toys and certified by CSA based on the following standards: UL •...
  • Page 6: Examples Of Identification Plates

    Particulate emission standards using cord wood emission standards using cord wood Particulate emission standards using cord wood Model: Spartherm Cassette 600 Insert Model: Spartherm Cassette 600 Insert Model: Spartherm Cassette 700 Insert Model: Spartherm Cassette 700 Insert...
  • Page 7: Dimensions

    2.2 DIMENSIONS Insert-600 Insert-700 17 5/16” / 440mm 16 1/8” / 410mm 26 1/4” / 666mm 22 5/16 / 566mm 23 5/8” / 594mm 21 1/2” / 544mm 26 5/16” / 682mm 23” / 582mm 6” AVAILABLE FRAME FINISHES 60 MM - 2 3/8“...
  • Page 8: Specification

    (refer volume to point 4.3 ”chimney installation”) can also have After extended periods of non-operation such as Insert-600 0,95 ft 10 613 BTU/h 47 417 BTU/h 70.29 % 6"...
  • Page 9: Combustion Air

    To connect the separate combustion air directly to the unit you need to have the right separate combustion air connector Ø 5”. Fix the connector directly to the unit. It can be oriented to the left side, right side or to the back. Masonry Insert-600 and Insert-700 combustion air intake Grills The combustion air ducts will be protected at the outside by a grill.
  • Page 10: Closure Valve

    CLOSURE VALVE PLEASE NOTE: COMBUSTION AIR INTAKE REQUIREMENTS. Please contact your dealer who offers suitable parts OUTSIDE AIR INLET MUST REMAIN CLEAR OF LEAVES, for air inlet ducts (pipes and damper). DEBRIS ICE AND/OR SNOW OR ANY OTHER OBSTA- It is recommended that the 5” Combustion air intake CLES.
  • Page 11: Placement

    leave a gap of at least 2- ". 4. INSTALLATION Clearence requirements to cumbustible surfaces Distance to furniture Clearance Requirements The recommend minimum distance from stove to fur- 4.1 HEARTH EXTENSION niture is 48 inches. Note that some furniture is more A−A easily affected by heat and may need to be moved to greater distance.
  • Page 12: Distance To Combustible Mantle

    4.1.1 600 4.2 DISTANCE COMBUSTIBLE MANTLE 4.5 CHIMNEY LINER INSTALLATION This wood insert is designed and approved for installa- tion with the following brands of chimney liner measuring 6” and 7” (152 and 178mm) in diameter. 4.5.1 LISTED CHIMNEYS This appliance must be installed with a listed 6 and 7”...
  • Page 13: Examples Of Typical Installations

    4.5.4 EX AMPLES OF T YPICAL INSTALLATIONS This appliance must be installed with a listed 6“(150mm) or 7“ (178mm) chimney system approved. under the following standards: The chimney liner must conform to the Class 3 requirements of CAN/ rain cap ULC-S635, Standard for Lining Systems for Existing Masonry or Factory-Built Chimneys and Vents, or chimney...
  • Page 14: Masonry

    4.6 MASONRY n Canada: Install only flexible or solid chimney liner from the top of the chimney to the insert flue collar. 4.6.1 T YPICAL EXISTING MASONRY Attach a stainless steel liner connector or elbow to the liner and insert onto the flue collar. Fasten with three screws.
  • Page 15: Convection

    5. FINISHING 4.7 CONVECTION 5.1 BRICKS AND BAFFLES Circulation of convection air INSTALLATION The convection air enters into the wood insert via the inlet at the bottom of the wood insert. The hot air for convection comes out of the wood insert via the front outlet. WARNING OPERATION OF THE APPLIANCE WITHOUT THE BAF- Circulation of convection air...
  • Page 16 Masonry Insert 600 Masonry Insert 700 1019711 � 1019710 1019883 [fü l2:] l 0 l 7 462 [fil 1017462 l 017403 1019883 � � l 017405 1017405 � 1017403 l 017 459 l O 17 46 l l 017402 1017 404 1017 404 101746 l [§:]...
  • Page 17: Door Removal/Installation

    5.2 DOOR REMOVAL / INSTALLATION WARNING BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT MAY RESULT IN A HOUSE AND/OR CHIMNEY FIRE. DO NOT STRIKE OR SLAM DOOR. NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
  • Page 18: Operation

    GLOVES TO PREVENT INJURY. DO NOT LEAVE THE PLEASE USE THE GLOVE THAT IS SUPPLIED WHEN into the combustion chamber. The flames, however, are Spartherm Inserts are equipped with an air con- FIRE UNATTENDED WHEN THE DOOR IS UNLATCHED OPERATING THE INSERT! more efficient.
  • Page 19 Caution: A - Air supply open: DOOR ASSEMBLY - SPARE PARTS. Never close the air lever of the air control com- (when lighting the fire or pletely or before the fire has started to burn adding new wood). The ROBAX 4MM CERAMIC GLASS. efficiently as it will create smoke and the fire would be control lever is pushed USE ONLY AS PER MANUFACTURERS STANDARD AND SPARE PARTS.
  • Page 20: Fire Extinguishers/Smoke Detectors

    6.1 FIRE EXTINGUISHERS / SMOKE 6.3 LIGHTING A FIRE backside of the firebox or, if not present, to 50% of the Firewood should be split, stacked in a manner that air DETECTORS fireboxes backside height and burn at a medium low can get to all parts of it and covered in early spring to setting.
  • Page 21: Flash Fire

    Appliance Wood consumed per hour affect the extraction of flue gases from the wood mended amount . Insert-600 1,8 kg/hr insert. Check the combustion air supply (if required, If accumulation is excessive, disconnect the appliance Insert-700 2,1 kg/hr...
  • Page 22: Ash Removal Procedures

    7.1 ASH REMOVAL PROCEDURES .5 GLASS REPLACEMENT the heating season to determine if a creosote buildup information on how to handle a chimney fire. has occurred. If creosote has accumulated it should be • After the chimney fire is out, clean and inspect removed to reduce the risk of a chimney fire.
  • Page 23: Cleaning The Glass Ceramic Sheet

    WARNING Model & Serial Number of appliance Installation date of appliance Part number All Spartherm inserts are supplied with Robax glass Description of part in the door. Finish Robax is a ceramic glass. Do not use substitute glass and order replacement IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED.
  • Page 24: Exploded View

    • Not enough air? Ensure air control is fully open. Also ensure that the air opening is not obstructed. Spartherm Feuerungstechnik GmbH gives a 5-year Wood burns • Air control may need to be adjusted down. warranty on: too fast.
  • Page 25: Requirement Of Effectiveness For The Warranty

    We particu- If such proof is not produced Spartherm Feuerung- larly advise you to have your wood insert/ stechnik GmbH shall not be obliged to honour the stove serviced regularly by a stove fitter.
  • Page 26: For Your Information

    10.6 FOR YOUR INFORMATION...
  • Page 27: Service History

    11. SERVICE HISTORY Appliance Service History This heater must be serviced annually depending on usage. Date Dealer Name Service Technician Name Service Performed Special Concerns...
  • Page 28 SPARTHERM THE GLOBAL BRAND FOR YOUR LIVING ROOM Your specialist dealer Spartherm Feuerungstechnik GmbH · Maschweg 38 · 49324 Melle Phone +49 5422 94 41-0 · Fax +49 5422 9441-14 · www.spartherm.com...
