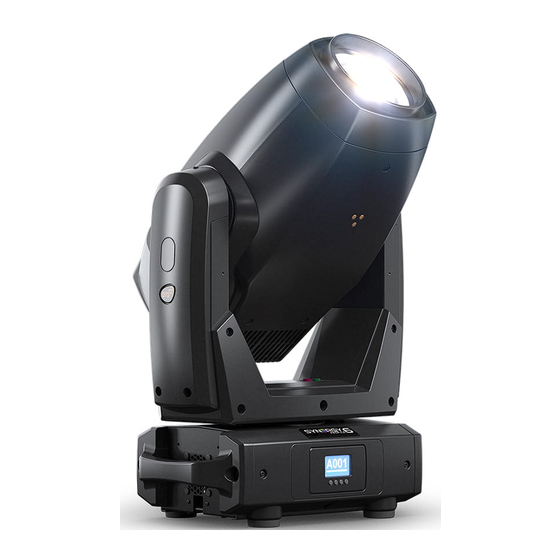

DTS SYNERGY 6 PROFILE Manual

Rdm-dmx
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RDM-DMX MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYNERGY 6 PROFILE and is the answer not in the manual?

Questions and answers

Related Manuals for DTS SYNERGY 6 PROFILE

Summary of Contents for DTS SYNERGY 6 PROFILE

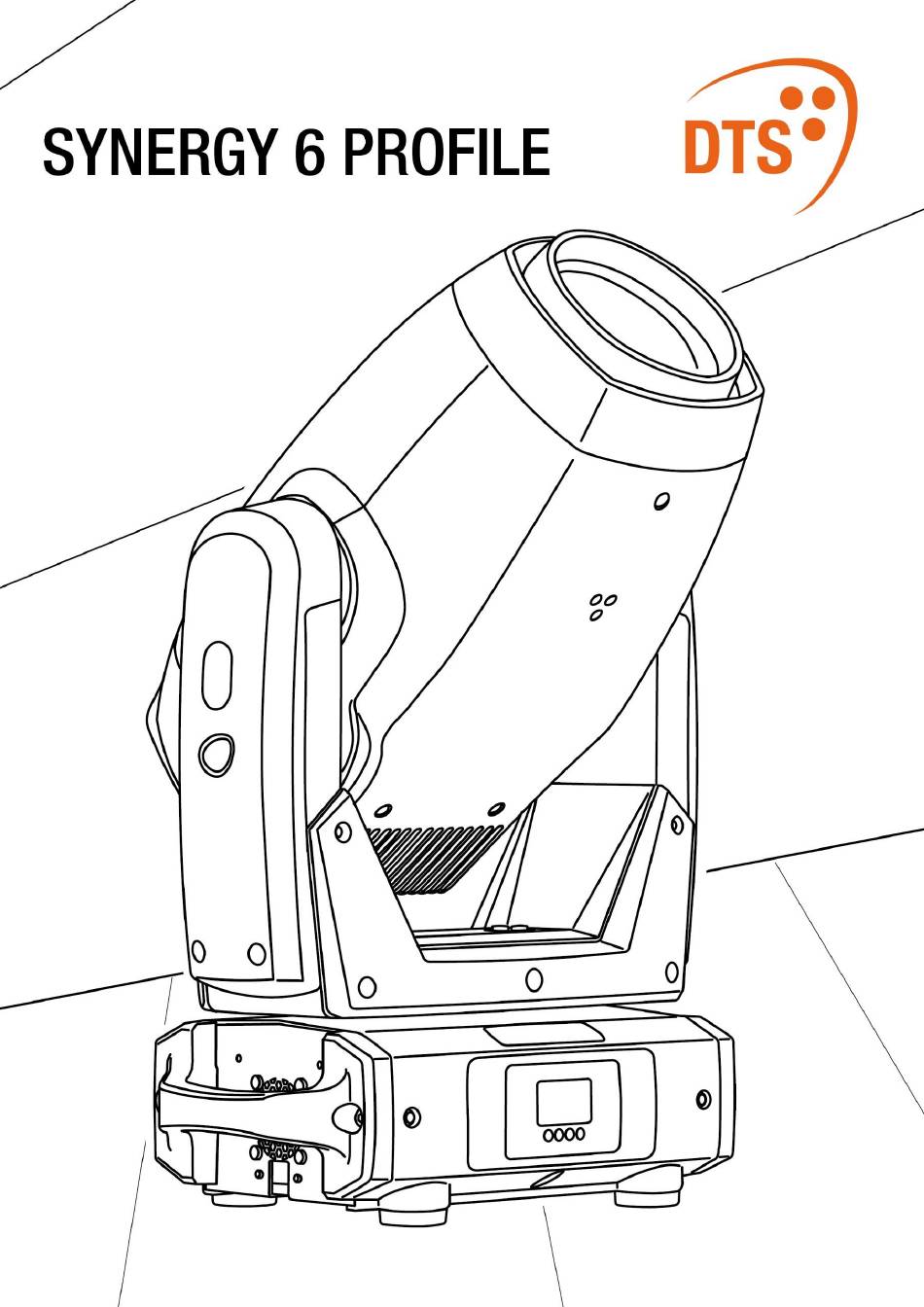

  • Page 1 RDM-DMX MANUAL...
  • Page 3 SYNERGY 6 PROFILE Release 1.00 For more information Language Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd All other trademarks, both marked and not marked, are the property of their respective owners. RDM – DMX – Manual Ver. 1.00...
  • Page 4 SYNERGY 6 PROFILE Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S.

  • Page 5: Table Of Contents

    SYNERGY 6 PROFILE Table of Contents DMX Signal Connection ..........................4 DMX Modes ............................5 Setting Up the DMX Address ....................... 5 Art-Net / sACN Signal Connection ....................... 5 Direct Ethernet Operation ........................5 Ethernet to RDM/DMX Operation ......................6 RDM Functions.............................

  • Page 6: Dmx Signal Connection

    SYNERGY 6 PROFILE DMX Signal Connection • The unit operates using the digital USITT DMX512 signal. • Connection between the light controller and the projector, or between projectors, must be carried out using a two-pair screened ø 0.5 mm cable, and a XLR 5 or 3 pins connector.

  • Page 7: Dmx Modes

    SYNERGY 6 PROFILE DMX Modes SYNERGY 6 PROFILE can be controlled with 44 DMX channels (Default) or 53 DMX channels. e.g., when using the unit in 44 DMX channels mode (Default), set the following addresses on the light desk: Projector 1 A001 If you want to select the next projector, just add “44”...

  • Page 8: Ethernet To Rdm/Dmx Operation

    SYNERGY 6 PROFILE DMX address: 1 DMX address: 45 DMX address: 89 IP address: 002.214.192.007 IP address: 002.214.192.008 IP address: 002.214.192.009 Universe: 1 Universe: 1 Universe: 1 Ethernet to RDM/DMX Operation For Ethernet to RDM/DMX operation, connect the light controller’s Art-Net / s-ACN output signal via Ethernet switch to the etherCON RJ45 input connector of the first unit only.

  • Page 9: Rdm Functions

    SYNERGY 6 PROFILE RDM Functions By using a RDM controller, it is possible to read/set DMX addresses, DMX modes and other parameters. SYNERGY 6 PROFILE accepts the following RDM commands: 0x001D RDM Device Model ID: RDM PID DESCRIPTION RDM PID VALUE Category –...
  • Page 10 SYNERGY 6 PROFILE RDM PID DESCRIPTION RDM PID VALUE OUTPUT_RESPONSE_TIME_DESCRIPTION 0x0346 MODULATION_FREQUENCY 0x0347 MODULATION_FREQUENCY_DESCRIPTION 0x0348 Category – Custom PID ETHERNET_TO_DMX 0x8000 INPUT_PRIORITY 0x8001 DISPLAY_STANDBY 0x8002 FURTHER RDM MESSAGES: CURVE CURVE DESCRIPTION LINEAR QUADRATIC (default) OUTPUT RESPONSE TIME OUTPUT_RESPONSE_TIME_DESCRIPTION SMOOTH OFF...
  • Page 11 SYNERGY 6 PROFILE 4.000 Hz 4.500 Hz 5.000 Hz RDM MANUFACTURER’S SPECIFIC PIDs: RDM CUSTOM PID DESCRIPTION Set parameter NETWORK – ETH TO DMX 0x8000_ETHERNET_TO_DMX 0 = OFF (default) 1 = ON Set parameter NETWORK – PRIORITY 0x8001_INPUT_PRIORITY 0 = DMX PORT (default) 1 = ETHERNET PORT Set parameter DISPLAY –...

  • Page 12: Rotating Framing System

    SYNERGY 6 PROFILE Rotating Framing System PAN DMX value = 128 TILT DMX value = 216 RDM – DMX – Manual Ver. 1.00 10 di 50...

  • Page 13: Display Functions

    SYNERGY 6 PROFILE Display Functions The SYNERGY 6 PROFILE display panel shows all the available control menus. By selecting the available functions on these menus, you will be able to change the fixture’s settings and behavior. Beware that changing these settings may vary the operating functions of the unit so that it may not respond correctly to the signal given to it.
  • Page 14 SYNERGY 6 PROFILE “Display Key-Lock” Function This function can be enabled/disabled by contemporary pressing ENTER + DOWN keys for 3 seconds. MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to disable Ethernet DISABLED operation (Default). Allows to select Art-Net as...
  • Page 15 SYNERGY 6 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Pan Speed control. 1 - 4 Default = 2 Tilt Speed control. TILT 1 - 4 Default = 2 Zoom Speed control. ZOOM 1 - 4 Default = 4 Blades Speed control.
  • Page 16 SYNERGY 6 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION 0 - 255 Default = 0 Default = 0 GEL FILTERS 0 - 255 Default = 0 GOBO 0 - 255 GOBO R-I MSB 0 - 255 Default = 0...
  • Page 17 SYNERGY 6 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to select the value of delay (in ms) for DIMMER channel reaction to DMX dimming command. SMOOTH OFF - 20 OFF = Instant response. 4 = 100 ms smooth response (Default).
  • Page 18 SYNERGY 6 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Lock the Pan to the desired PAN LOCK value. NO = Default. Lock the Tilt to the desired TILT LOCK value. NO = Default. Remove power to Pan motor.

  • Page 19: Error Messages

    SYNERGY 6 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION BLADE 3 ROT 0 - 255 Default = 128 Default = 0 BLADE 4 INS 0 - 255 Default = 128 BLADE 4 ROT 0 - 255 BLADE EFFECTS...
  • Page 20 SYNERGY 6 PROFILE ERROR SHOWN ON DISPLAY APPEARS WHEN -Pan&Tilt PCB bus driver fault -5 Motors PCB (4)* bus driver fault BUS 5 MOTORS CARD 4 -5 Motors PCB (4)* input voltage missing -Internal Bus wiring connection fault -Pan&Tilt PCB bus driver fault...

  • Page 21: Dmx Protocol

    SYNERGY 6 PROFILE DMX Protocol DMX Personality 1 - 44 CHANNELS MODE (DEFAULT) PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT reserved DIMMER msb DIMMER lsb SHUTTER COLOUR WHEEL COLOUR MODE CYAN MAGENTA YELLOW GEL FILTERS EMULATION GOBO...
  • Page 22 SYNERGY 6 PROFILE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT DMX value Function 000-009 Fast movement 010-025 Standard movement 026-127 Vector mode from fast to slow 128-247 Variable time reaction to dmx signal (fast to slow) 248-255...
  • Page 23 SYNERGY 6 PROFILE 185-219 Colour 5-6 220-255 Colour 6-0 PROPORTIONAL COLOUR (if channel 11 “COLOUR MODE” = DMX range value 128-191) DMX value Function 000-009 Open 010-255 Proportional colour Colour 0-1 Colour 1 center Colour 1-2 Colour 2 center Colour 2-3...
  • Page 24 SYNERGY 6 PROFILE GEL FILTERS EMULATION 051-055 106 PRIMARY RED 056-060 111 DARK PINK 061-065 113 MAGENTA 066-070 117 STEEL BLUE 071-075 118 LIGHT BLUE 076-080 122 FERN GREEN 081-085 126 MAUVE 086-090 132 MEDIUM BLUE 091-095 136 PALE LAVENDER...
  • Page 25 SYNERGY 6 PROFILE GOBO SHAKE DMX value Function 000-009 Stop 010-019 Gobo shake R-L speed 1 020-029 Gobo shake R-L speed 2 030-039 Gobo shake R-L speed 3 040-049 Gobo shake R-L speed 4 050-059 Gobo shake R-L speed 5...
  • Page 26 SYNERGY 6 PROFILE BLADE 3 INSERTION DMX value Function 000-255 Open to fully inserted BLADE 3 ROTATION DMX value Function 000-127 Position from -30° to 0° 0° position 129-255 Position from 0° to 30° BLADE 4 INSERTION DMX value Function...
  • Page 27 SYNERGY 6 PROFILE BLADES EFFECTS DMX value Function DMX value Function 082-083 Macro 37 184-185 Macro 88 084-085 Macro 38 186-187 Macro 89 086-087 Macro 39 188-255 reserved 088-089 Macro 40 090-091 Macro 41 092-093 Macro 42 094-095 Macro 43...
  • Page 28 SYNERGY 6 PROFILE DYNAMOVE MACROS DMX value Function Automatic channels (44 DMX channels mode) CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 22; CH 23; CH 24; CH 25; CH 26; CH 27; CH 28; CH 29; CH 33; CH 34; CH 35; CH 36; CH 37; CH 40;...
  • Page 29 SYNERGY 6 PROFILE DYNAMOVE MACROS DMX value Function Automatic channels (44 DMX channels mode) CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 33; CH 34; CH 35; CH 36; 088-089 Macro 40 CH 37; CH 40; CH 41; CH 42 CH 12;...
  • Page 30 SYNERGY 6 PROFILE PRISM MODE DMX value Function 000-009 No function 010-049 Prism 1 inserted after zoom lens 050-089 Prism 2 inserted after zoom lens 090-129 Prism 1+2 inserted after zoom lens 130-169 Prism 1 inserted between focus and zoom lenses...
  • Page 31 SYNERGY 6 PROFILE FIXTURE CONTROL DMX value Function 000-009 0 - No effect 1 – SMOOTH DIMMING OFF 010-024 025-026 2 - SMOOTH DIMMING 1 027-028 3 - SMOOTH DIMMING 2 029-030 4 - SMOOTH DIMMING 3 031-032 5 - SMOOTH DIMMING 4 (DEFAULT)
  • Page 32 SYNERGY 6 PROFILE FIXTURE CONTROL DMX value Function 195-204 75 - PAN REVERSE 205-214 76 - TILT NORMAL 215-224 77 - TILT REVERSE 225-227 78 - AUTOFOCUS ON 228-230 79 - RESERVED 231-234 80 - AUTOFOCUS OFF (DEFAULT) 235-237 81 - FAN MODE STANDARD (DEFAULT)

  • Page 33: Dmx Personality 2 - 53 Channels Mode

    SYNERGY 6 PROFILE DMX Personality 2 - 53 CHANNELS MODE PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT reserved DIMMER msb DIMMER lsb SHUTTER COLOUR WHEEL COLOUR MODE CYAN MAGENTA YELLOW GEL FILTERS EMULATION GOBO GOBO ROTATION/INDEX msb...
  • Page 34 SYNERGY 6 PROFILE FROST FOCUS msb FOCUS lsb ZOOM FIXTURE CONTROL RESET PAN msb PAN lsb TILT msb TILT lsb SPEED MOVEMENT DMX value Function 000-009 Fast movement 010-025 Standard movement 026-127 Vector mode from fast to slow 128-247 Variable time reaction to dmx signal (fast to slow)
  • Page 35 SYNERGY 6 PROFILE HALF COLOUR (if channel 1 “COLOUR MODE” = DMX range value 64-127) DMX value Function 000-009 Open 010-044 Colour 0-1 045-079 Colour 1-2 080-114 Colour 2-3 115-149 Colour 3-4 150-184 Colour 4-5 185-219 Colour 5-6 220-255 Colour 6-0 PROPORTIONAL COLOUR (if channel 11 “COLOUR MODE”...
  • Page 36 SYNERGY 6 PROFILE GEL FILTERS EMULATION 000-009 No function 010-020 19 FIRE 021-025 20 MEDIUM AMBER 026-030 25 SUNSET RED 031-035 68 SKY BLUE 036-040 101 YELLOW 041-045 104 DEEP AMBER 046-050 105 ORANGE 051-055 106 PRIMARY RED 056-060 111 DARK PINK...
  • Page 37 SYNERGY 6 PROFILE GOBO SHAKE DMX value Function 000-009 Stop 010-019 Gobo shake R-L speed 1 020-029 Gobo shake R-L speed 2 030-039 Gobo shake R-L speed 3 040-049 Gobo shake R-L speed 4 050-059 Gobo shake R-L speed 5...
  • Page 38 SYNERGY 6 PROFILE BLADE 2 INSERTION msb BLADE 2 INSERTION lsb DMX value Function MSB.LSB-MSB.LSB INT16-INT16 000/000-255/255 Open to fully inserted 00000-65535 BLADE 2 ROTATION msb BLADE 2 ROTATION lsb DMX value Function MSB.LSB-MSB.LSB INT16-INT16 000/000-127/255 Position from -30° to 0°...
  • Page 39 SYNERGY 6 PROFILE BLADES EFFECTS DMX value Function DMX value Function 000-009 No function 110-111 Macro 51 010-011 Macro 1 112-113 Macro 52 012-013 Macro 2 114-115 Macro 53 014-015 Macro 3 116-117 Macro 54 016-017 Macro 4 118-119 Macro 55...
  • Page 40 SYNERGY 6 PROFILE DYNAMOVE MACROS DMX value Function Automatic channels (53 DMX channels mode) CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 42; CH 43; CH 44; CH 45; 010-011 Macro 1 CH 46; CH 49; CH 50; CH 51 CH 12;...
  • Page 41 SYNERGY 6 PROFILE DYNAMOVE MACROS DMX value Function Automatic channels (53 DMX channels mode) CH 12; CH 13; CH 14; CH 15; CH 17; CH 18; CH 21; CH 22; CH 22; CH 23; CH 24; CH 25; CH 26; CH 27; CH 28; CH 29; CH 30; CH 31; CH 32; CH 33; CH 34;...
  • Page 42 SYNERGY 6 PROFILE DYNAMOVE MACROS DMX value Function Automatic channels (53 DMX channels mode) CH 10; CH 11; CH 17; CH 18; CH 19; CH 20; CH 42; CH 43; CH 44; CH 49; 102-103 Macro 47 CH 50; CH 51 CH 10;...
  • Page 43 SYNERGY 6 PROFILE PRISM MODE DMX value Function 000-009 No function 010-049 Prism 1 inserted after zoom lens 050-089 Prism 2 inserted after zoom lens 090-129 Prism 1+2 inserted after zoom lens 130-169 Prism 1 inserted between focus and zoom lenses...
  • Page 44 SYNERGY 6 PROFILE FIXTURE CONTROL DMX value Function 000-009 0 - No effect 1 – SMOOTH DIMMING OFF 010-024 025-026 2 - SMOOTH DIMMING 1 027-028 3 - SMOOTH DIMMING 2 029-030 4 - SMOOTH DIMMING 3 031-032 5 - SMOOTH DIMMING 4 (DEFAULT)
  • Page 45 SYNERGY 6 PROFILE FIXTURE CONTROL DMX value Function 195-204 75 - PAN REVERSE 205-214 76 - TILT NORMAL 215-224 77 - TILT REVERSE 225-227 78 - AUTOFOCUS ON 228-230 79 - RESERVED 231-234 80 - AUTOFOCUS OFF (DEFAULT) 235-237 81 - FAN MODE STANDARD (DEFAULT)

  • Page 46: Notes

    SYNERGY 6 PROFILE NOTES RDM – DMX – Manual Ver. 1.00 44 di 50...
