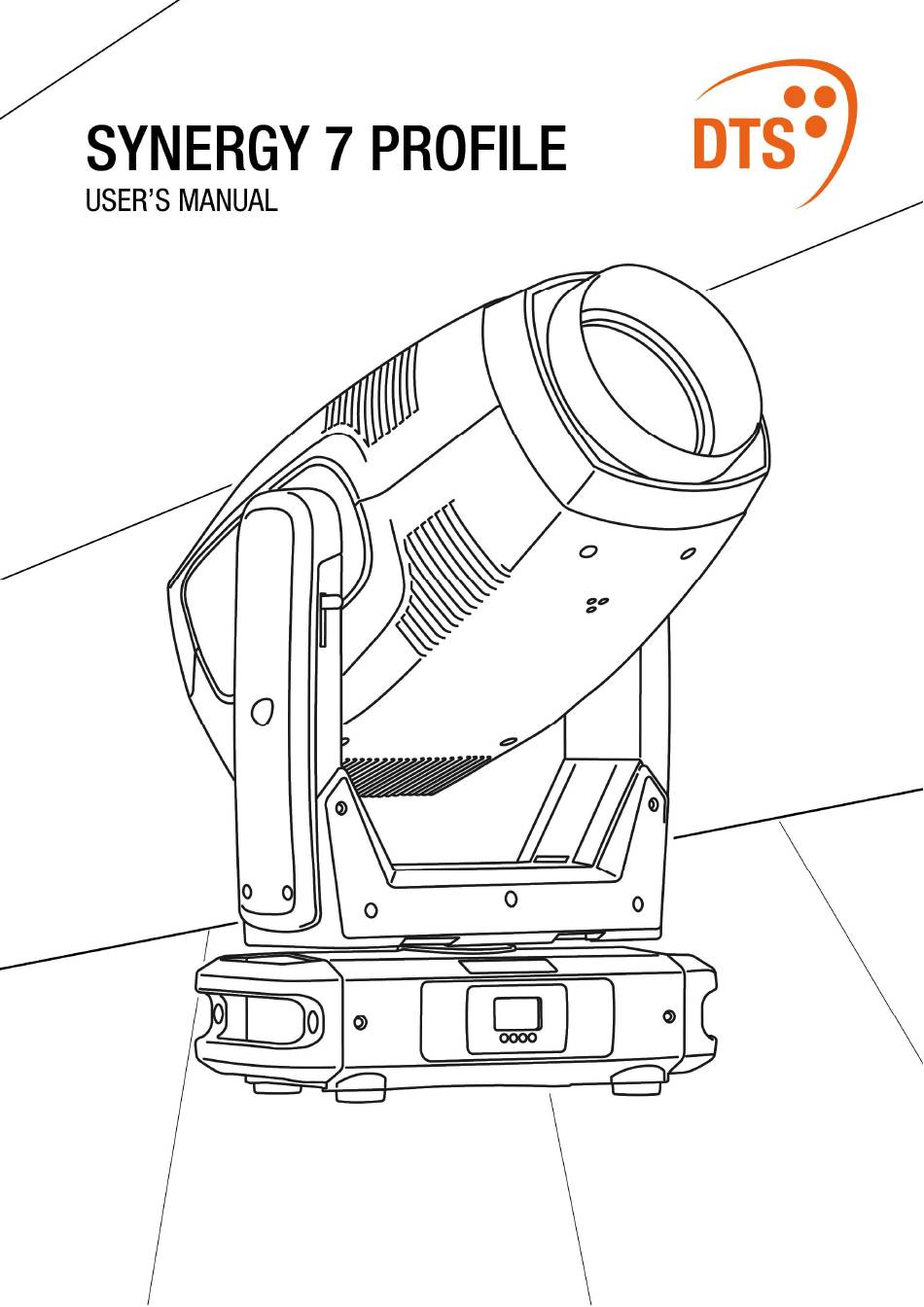

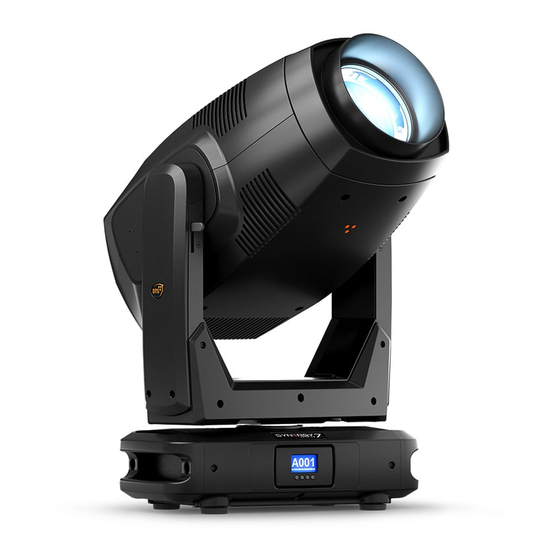

  • Page 3 SYNERGY 7 PROFILE Release 1.08 Code: 0517I360 For more information Language Art-Net™ Designed by and Copyright Artistic Licence Holdings Ltd All other trademarks, both marked and not marked, are the property of their respective owners. User Manual Ver. 1.08 1 di 39...
  • Page 4 SYNERGY 7 PROFILE Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S.

  • Page 5: Table Of Contents

    SYNERGY 7 PROFILE Table of Contents Symbols................................ 5 General Warning ............................6 Important Safety Information ........................6 Fire Prevention ............................. 6 Prevention of Electric Shock ........................ 6 Safety ..............................7 Level of Protection Against the Penetration of Solid and Liquid Objects ..........8 Waste Electrical and Electronic Equipment (WEEE) Directive: ............
  • Page 6 SYNERGY 7 PROFILE Rotating Framing System ........................... 19 Display Functions ............................20 Error Messages ............................27 Motors and LED Driver PCBs References ....................30 Opening the Housing ..........................31 Rotating Gobo Dimensions ........................32 Periodic Cleaning............................33 20.1 Lenses and Filters ..........................33 20.2...

  • Page 7: Symbols

    SYNERGY 7 PROFILE Symbols Symbol Meaning General risk. Electric shock risk Hot surface Suitable for indoor use only. Maximum operating ambient temperature. Minimum distance from illuminated objects. Do not stare at the operating light source. Photobiological safety risk group2 Never expose the front lens to sunlight or any strong artificial Light source from any angle to avoid damage of head internal parts.

  • Page 8: General Warning

    Class I appliance: connection must be made to a mains system fitted with an efficient earthing.  SYNERGY 7 PROFILE requires the assistance of specialized personnel for all servicing. Please always refer to an authorized DTS service center. User Manual Ver.

  • Page 9: Safety

    SYNERGY 7 PROFILE Safety  Risk Group 2 product according to IEC 62471. Do not look directly at the light output and do not stare at the light beam through optical instruments or any other device that may concentrate the light beam.

  • Page 10: Level Of Protection Against The Penetration Of Solid And Liquid Objects

    SYNERGY 7 PROFILE Level of Protection Against the Penetration of Solid and Liquid Objects  The projector is classified as an ordinary appliance and its protection level against the penetration of solid and liquid objects is IP20.  The projector contains electric and electronic components which should under no circumstances come into contact with oil, water, or any other liquid.

  • Page 11: Optical Group

    4-color wheel (white correction + UV)  5-color wheel (with double/continuous color generation) Iris  Linear 16-blade iris (15% ÷ 100%) Dynamic Effects  Dynamove FX Engine (DTS Patent)  Virtual Animation Wheel  2 customizable rotating 6-gobo wheel  Circular 24-facet rotating prism ...

  • Page 12: Pan & Tilt

     “Standard”, “Silent” and “Ultra-silent” operation modes  Noise level in “Ultra-silent” mode: 36dBA @ 1 m (normal operation, full power)  Internal operating system updatable via DTS firmware uploader dongle Pan & Tilt  Pan: 540°  Tilt: 260°...

  • Page 13: Dimensions

    SYNERGY 7 PROFILE 5.16 Dimensions User Manual Ver. 1.08 11 di 39...

  • Page 14: Pan / Tilt Lock

    SYNERGY 7 PROFILE Pan / Tilt Lock When moving or servicing the unit, you can lock the pan and tilt movements. To lock or release the pan and tilt, follow the instructions as seen below: Included Items  1x PowerCON TRUE1 female connector (code 0520P066) ...

  • Page 15: Installation

    The supporting structure from which the unit is hung should be capable of bearing the weight of the unit, as should any clamps used to hang it. The structure should also be sufficiently rigid as not to move or shake whilst the SYNERGY 7 PROFILE is moving.

  • Page 16: Safety Cable

    SYNERGY 7 PROFILE Safety Cable A safety cable must be securely fixed to SYNERGY 7 PROFILE and to the suspension truss in order to avoid the fixture accidentally falling, should the main fixing point fail. The safety cable used must be approved by a notified body according to IEC 60598-2-17 and must be capable of bearing at least 10 times the weight of the unit.

  • Page 17: Mains Connection

    SYNERGY 7 PROFILE 10 Mains Connection SYNERGY 7 PROFILE operates at 100-240 Vac 50/60 Hz. Prior to connecting the unit to the mains, ensure that your local mains electricity supply properties are compatible with those of the product. For connection purposes, ensure that your plug is capable of supporting 6,5 A at 230 Vac or 14 A at 100 Vac for each unit connected.

  • Page 18: Dmx Modes

    DMX line. 11.1 DMX Modes SYNERGY 7 PROFILE can be controlled with 52 DMX channels (Default) or 61 DMX channels. e.g., when using the unit in 52 DMX channels mode (Default), set the following addresses on the light desk: Projector 1...

  • Page 19: Direct Ethernet Operation

    SYNERGY 7 PROFILE 12.1 Direct Ethernet Operation For direct Ethernet operation, connect the light controller’s Art-Net / s-ACN output signal via Ethernet switch to each unit’s etherCON RJ45 IN connector. For each unit, scroll to “NETWORK” menu (refer to the paragraph “Display Function” for further details): ...

  • Page 20: Updating The Firmware

    The use of a DMX terminator is recommended. Please refer to page 16 for further information DMX terminators. 13 Updating the Firmware In order to update to the latest firmware release of the SYNERGY 7 PROFILE, you will need:  DTS firmware uploader dongle (code 03.LA.206).

  • Page 21: Rotating Framing System

    SYNERGY 7 PROFILE 14 Rotating Framing System User Manual Ver. 1.08 19 di 39...

  • Page 22: Display Functions

    SYNERGY 7 PROFILE 15 Display Functions The SYNERGY 7 PROFILE display panel shows all the available control menus. By selecting the available functions on these menus, you will be able to change the fixture’s settings and behavior. Beware that changing these settings may vary the operating functions of the unit so that it may not respond correctly to the signal given to it.
  • Page 23 SYNERGY 7 PROFILE “Display Key-Lock” Function This function can be enabled/disabled by contemporary pressing ENTER + DOWN keys for 3 seconds. MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Allows to disable Ethernet DISABLED operation (Default). Allows to select Art-Net as input...
  • Page 24 SYNERGY 7 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Zoom Speed control. ZOOM 1 - 4 Default = 4 Blades Speed control. Default = 4 BLADE 1 - 4 WARNING! Speed value must not be set while blades are SPEED moving during programming.
  • Page 25 SYNERGY 7 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Default = 0 GOBO 1 SHAKE 0 - 255 GOBO 2 0 - 255 Default = 0 Default = 0 GOBO 2 R-I MSB 0 - 255 GOBO 2 R-I LSB...
  • Page 26 SYNERGY 7 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION relatively to Automatic fans speed. OPERATING If LED temperature <40°C: fans MODE) OFF. If LED temperature >40°C: If OPERATING MODE = STANDARD, fans speed is increased within the values range set in STANDARD mode.
  • Page 27 SYNERGY 7 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION 10M-1: 10 Motors PCB (1)* temperature monitoring. 5M-2: 5 Motors PCB (2)* 10M-1: 042°C temperature monitoring. 5M-2: 045°C 5M-3: 5 Motors PCB (3)* TEMP. 2 5M-3: 045°C temperature monitoring.
  • Page 28 SYNERGY 7 PROFILE MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION 52 CH DMX To restore parameters default RESTORE DEF. settings. PERSONALITY Manual mode with functions PAN MSB 0 - 255 value selectable by user. Default = 128 Default = 128...

  • Page 29: Error Messages

    SYNERGY 7 PROFILE 16 Error Messages ERROR SHOWN ON DISPLAY APPEARS WHEN -Pan motor fault -Pan encoder fault -Pan motor driver on Pan&Tilt PCB fault -Wiring connection between Pan encoder and Pan&Tilt PCB fault -Pan locked -Pan motor fault PAN LOCKED -Pan encoder fault -Pan motor driver on Pan&Tilt PCB fault...
  • Page 30 SYNERGY 7 PROFILE ERROR SHOWN ON DISPLAY APPEARS WHEN -Pan&Tilt PCB bus driver fault -5 Motors PCB (5)* bus driver fault BUS 5 MOTORS CARD 5 -5 Motors PCB (5)* input voltage missing -Internal Bus wiring connection fault -Pan&Tilt PCB bus driver fault...
  • Page 31 SYNERGY 7 PROFILE ERROR SHOWN ON DISPLAY APPEARS WHEN -Profiler index motor fault PROFILER INDEX -Profiler index motor driver on 5 Motors PCB (3)* fault OR CARD 3 - RESET LINE 1 -Profiler index magnet missing -Profiler index hall sensor PCB fault...

  • Page 32: Motors And Led Driver Pcbs References

    SYNERGY 7 PROFILE 17 Motors and LED Driver PCBs References PCB Description Function Dip Switch 10M-1 or 10 MOTORS PCB (1) FOCUS, ZOOM, FROST 1, FROST 2, 1 = OFF MAGENTA 2, 6-FACET PRISM, 24-FACET 2 = OFF PRISM, PRISMS ROTATION.

  • Page 33: Opening The Housing

    SYNERGY 7 PROFILE 18 Opening the Housing It is possible to inspect the inside of the projector by removing the covers, as indicated below. WARNING! Remove mains power prior to accessing the projector’s internal components. 1) Using a flat bladed screwdriver, loose the four “¼-turn” screws that fix the head covers on both sides.

  • Page 34: Rotating Gobo Dimensions

    19 Rotating Gobo Dimensions Replacement / custom gobos should be made in dichroic glass. For gobos removing/replacing procedure, please refer to an authorized DTS service center. Gobo dimensions are as follows: ROTATING GOBO WHEEL 1: ø...

  • Page 35: Periodic Cleaning

    SYNERGY 7 PROFILE Coated side When an object is held up against the coated side of the glass gobo, there is no space between the object and its reflection. Uncoated side When an object is held up against the uncoated side of the glass gobo, a space can be seen between the object and its reflection.

  • Page 36: Mechanical Parts

    Periodically check all mechanical parts, gears, guides, belts, etc., for wear and tear. Replace them if necessary. Periodically check the lubrication of all components, particularly the parts subjected to high temperatures. If necessary, apply suitable lubricant (available from your DTS distributor) where needed. Check the tension of the belts and adjust them where necessary. 21.2 Electrical Components Check all electrical components for correct earthing and proper connection of all connectors.

  • Page 37: Rotating Gobo Wheel 1

    SYNERGY 7 PROFILE 22 Rotating Gobo Wheel 1 User Manual Ver. 1.08 35 di 39...

  • Page 38: Rotating Gobo Wheel 2

    SYNERGY 7 PROFILE 23 Rotating Gobo Wheel 2 User Manual Ver. 1.08 36 di 39...

  • Page 39: Filters Wheel

    SYNERGY 7 PROFILE 24 Filters Wheel User Manual Ver. 1.08 37 di 39...

  • Page 40: Color Wheel

    SYNERGY 7 PROFILE 25 Color Wheel User Manual Ver. 1.08 38 di 39...

  • Page 41: Notes

    SYNERGY 7 PROFILE NOTES User Manual Ver. 1.08 39 di 39...
