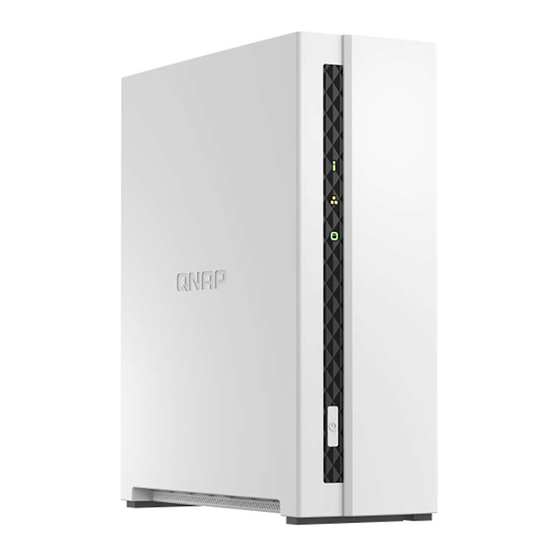

  • Page 1 TS-x33 TS-133 TS-233 User Guide Document Version: 4 04/12/2023...

  • Page 2: Table Of Contents

    TS-x33 User Guide Contents 1. Preface About This Guide................................3 Audience..................................3 Document Conventions.............................3 2. Product Overview About the TS-x33................................4 Hardware Specifications............................4 Package Contents..............................6 Components................................7 Front Panel................................7 Rear Panel................................8 Drive Numbering..............................10 Safety Information..............................10 Installation Requirements............................11 Setting Up the NAS..............................12 3.
  • Page 3 Link..............................53 Qfinder Pro................................53 QNAP ID..................................53 QTS.....................................53 8. Notices Limited Warranty..............................54 Disclaimer................................. 54 GNU Public License..............................54 CE Notice...................................62 UKCA Notice................................62 FCC Notice.................................62 VCCI Notice................................63 BSMI Notice................................63 SJ/T 11364-2006................................63...

  • Page 4: Preface

    TS-x33 User Guide 1. Preface About This Guide This guide provides information about the device and step-by-step instructions on installing the hardware. It also provides instructions on basic operations and troubleshooting information. Audience This document is intended for consumers and storage administrators. This guide assumes that the user has a basic understanding of storage and backup concepts.

  • Page 5: Product Overview

    Hardware Specifications Warning • If your QNAP product has hardware defects, return the product to QNAP or a QNAP- authorized service center for maintenance or replacement. Any attempt to repair or perform maintenance procedures on the product by you or an unauthorized third party invalidates the warranty.
  • Page 6 TS-x33 User Guide Component TS-133 TS-233 Drive compatibility 3.5-inch bays: • 3.5-inch SATA hard disk drives • 2.5-inch SATA hard disk drives • 2.5-inch SATA solid-state drives Hot-swapping Not Supported Supported Network Gigabit network 1 x GbE RJ45 interface Wake-on-LAN Yes (GbE RJ45) External I/O Ports &...

  • Page 7: Package Contents

    Relative humidity • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) Model specifications are subject to change without prior notice. To see the latest specifications, go to https://www.qnap.com. Package Contents Item Quantity TS-x33 AC power adapter Power cord Screws for 3.5-inch drives...

  • Page 8: Components

    TS-x33 User Guide Item Quantity Screws for 2.5-inch drives TS-133: 2 TS-233: 6 Ethernet cable 1 x CAT5e Quick Installation Guide (QIG) Components Front Panel TS-133 Component Component Status LED Drive LED LAN LED Power button Product Overview...

  • Page 9: Rear Panel

    TS-x33 User Guide TS-233 Component Component Status LED Drive 2 LED LAN LED Power button USB One Touch Copy LED USB One Touch Copy button Drive 1 LED USB 3.2 Gen 1 One Touch Copy Type-A port Rear Panel TS-133 Product Overview...
  • Page 10 TS-x33 User Guide Component Component System fan Gigabit Ethernet activity LED Reset button Power input USB 2.0 Type-A port Gigabit Ethernet port (RJ45) Gigabit Ethernet speed LED USB 3.2 Gen 1 Type-A port TS-233 Component Component System fan Gigabit Ethernet speed LED Reset button USB 2.0 Type-A ports Gigabit Ethernet RJ45 port...

  • Page 11: Drive Numbering

    TS-x33 User Guide Drive Numbering TS-133 TS-233 Safety Information The following instructions help ensure personal safety and environmental safety. Read these instructions carefully before performing any operation. General Instructions • The device should be stored in a secure location with restricted access, controlled through the use of a tool, lock and key, or any means of security.

  • Page 12: Installation Requirements

    TS-x33 User Guide • Only qualified, skilled, and authorized persons with knowledge of all restrictions, safety precautions, and installation and maintenance procedures should have physical access to the device. • To avoid potential injury or damage to components, ensure that the drives and other internal system components have cooled before touching them.

  • Page 13: Setting Up The Nas

    Category Item Hardware and peripherals • Storage drives For the list of compatible drive models, go to https:// www.qnap.com/compatibility. • Network cable Tools • Phillips #1 or #2 screwdriver • Flat head screwdriver • Anti-static wrist strap Setting Up the NAS...

  • Page 14: Installation And Configuration

    TS-x33 User Guide 3. Installation and Configuration This chapter provides specific hardware and firmware installation and configuration steps. Hardware Installation This section provides information on installing drives and connecting USB expansion units. Drive Installation The TS-x33 is compatible with 3.5-inch and 2.5-inch SATA hard drives, and 2.5-inch solid-state drives. Installing 3.5-inch Hard Drives on 3.5-inch Drive Trays (TS-133) Warning •...
  • Page 15 TS-x33 User Guide c. Slide the cover back. d. Lift the cover off the device. 5. Load the tray into the bay. a. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on the sides of the tray.
  • Page 16 TS-x33 User Guide b. Attach the screws. 6. Attach the case cover. a. Place the cover on the device. b. Slide the cover forward. Installation and Configuration...
  • Page 17 TS-x33 User Guide c. Attach the screw to the bottom of the device. d. Place the device in its normal upright position. Installation and Configuration...
  • Page 18 TS-x33 User Guide 7. Connect all cables and external attachments. 8. Power on the device. Installing 3.5-inch Hard Drives on 3.5-inch Drive Trays (TS-233) Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components. •...
  • Page 19 TS-x33 User Guide 2. Disconnect the power cord from the electrical outlet. 3. Disconnect all cables and external attachments. 4. Remove the case cover. a. Place the device on its left side. b. Remove the screw located on the bottom of the device. c.
  • Page 20 TS-x33 User Guide 5. Install a drive on the tray. a. Remove a drive tray by simultaneously pressing the latch and pulling the tray. b. Remove the fastening panels from the sides of the drive tray. Installation and Configuration...
  • Page 21 TS-x33 User Guide c. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. d. Attach the fastening panels to lock the drive to the tray. e.
  • Page 22 TS-x33 User Guide 6. Load the tray into the bay. a. Insert the tray into the bay. b. Push the handle. 7. Attach the case cover. a. Place the cover on the device. b. Slide the cover forward. Installation and Configuration...
  • Page 23 TS-x33 User Guide c. Attach the screw to the bottom of the device. d. Place the device in its normal upright position. Installation and Configuration...
  • Page 24 TS-x33 User Guide 8. Connect all cables and external attachments. 9. Power on the device. Installing 2.5-inch Hard Drives or Solid-State Drives on 3.5-inch Drive Trays (TS-133) Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components. •...
  • Page 25 TS-x33 User Guide b. Remove the screw located on the bottom of the device. c. Slide the cover back. d. Lift the cover off the device. 5. Load the tray into the bay. a. Place the drive on the tray so that the holes on the sides of the drive are aligned with the holes on the sides of the tray.
  • Page 26 TS-x33 User Guide 6. Attach the case cover. a. Place the cover on the device. b. Slide the cover forward. c. Attach the screws. Installation and Configuration...
  • Page 27 TS-x33 User Guide d. Place the device in its normal upright position. 7. Connect all cables and external attachments. 8. Power on the device. Installation and Configuration...
  • Page 28 TS-x33 User Guide Installing 2.5-inch Hard Drives or Solid-State Drives on 3.5-inch Drive Trays (TS-233) Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components. • Moving fan blades: Keep your hands and other body parts away from moving fan blades.
  • Page 29 TS-x33 User Guide d. Lift the cover off the device. 5. Install a drive on the tray. a. Remove a drive tray by simultaneously pressing the latch and pulling the tray. b. Remove the right fastening panel from the drive tray. Installation and Configuration...
  • Page 30 TS-x33 User Guide c. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. d. Attach the screws. 6. Load the tray into the bay. a.
  • Page 31 TS-x33 User Guide 7. Attach the case cover. a. Place the cover on the device. b. Slide the cover forward. c. Attach the screw to the bottom of the device. Installation and Configuration...

  • Page 32: Connecting Usb Expansion Units

    The TS-x33 supports USB expansion units. For details, see table below. To connect the device to USB expansion units, USB Type-A to USB Type-C cables are required. You can purchase storage expansion accessories from QNAP or an authorized reseller. Installation and Configuration...
  • Page 33 TS-x33 User Guide For details, go to https://shop.qnap.com/. For the list of compatible expansion units and the maximum number of applicable expansion units, go to http://www.qnap.com/go/compatibility-expansion. Expansion Unit Model Description Required Accessories TR-002 • Uses a USB 3.2 Gen 2 Type-C USB 3.2 Gen 2 Type-A to Type-C...

  • Page 34: Qts Installation

    TS-x33 User Guide TS-233 2. Power on the expansion units. 3. Verify that the expansion units are recognized by the NAS. a. Log on to QTS as administrator. b. Go to Main Menu > Storage & Snapshots > Overview > System . c.

  • Page 35: Installing Qts Using Qfinder Pro

    2. Connect the NAS to your local area network. 3. Run Qfinder Pro on a computer that is connected to the same local area network. Note To download Qfinder Pro, go to https://www.qnap.com/utilities. 4. Click Next. 5. Specify a firmware version using any of the following methods.
  • Page 36 The Set the date and time screen appears. 8. Specify the time zone, date, and time using any of the following methods: QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard.

  • Page 37: Installing Qts Using The Cloud Key

    TS-x33 User Guide 10. Configure the network settings using any of the following methods. Methods User Actions Obtain an IP address automatically (DHCP) Select Obtain an IP address automatically (DHCP) The system automatically detects and configures the IP address settings. Use static IP address a.
  • Page 38 TS-x33 User Guide 3. Go to the QNAP Cloud Installation page using one of the following methods: • On your computer, go to your respective region's site to download QTS: • China: https://install.qnap.com.cn • Global: https://install.qnap.com • Scan the QR code on the NAS using a mobile device.
  • Page 39 The Set the date and time screen appears. 11. Specify the time zone, date, and time using any of the following methods: QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard.
  • Page 40 TS-x33 User Guide 13. Configure the network settings using any of the following methods. Methods User Actions Obtain an IP address automatically (DHCP) Select Obtain an IP address automatically (DHCP) The system automatically detects and configures the IP address settings. Use static IP address a.

  • Page 41: Basic Operations

    Important • The default "admin" account is automatically enabled after the system reset. • To protect your device from brute force attacks, QNAP recommends disabling the default "admin" account after a system reset. To disable the account, change the default admin password, log out of QTS, and then log in to QTS with another admin account.

  • Page 42: Leds

    TS-x33 User Guide Operation User Action Result Basic system reset Press and hold the The following settings are reset to default: button for 3 seconds. • System administrator password: The default password is the first MAC address in uppercase letters without special characters.
  • Page 43 TS-x33 User Guide Status Description System Status Flashes green and red • A drive is being formatted. alternately every 0.5 • The device is being initialized. seconds • The operating system is being updated. • RAID rebuilding is in progress. •...

  • Page 44: Usb One Touch Copy Button

    This feature supports incremental backups. The NAS only copies files that were modified or added after the last backup. To configure the behavior of the button when an external device is connected to the button's USB port, install and use Hybrid Backup Sync on your QNAP operating system. For details, see the Hybrid Backup Sync documentation.
  • Page 45 TS-x33 User Guide Duration Frequency Description Long beep (1.5 seconds) 3 (every 5 minutes) • The system fan is not functioning. • The fan module has been removed. • The disk volume is about to reach its full capacity. • The disk volume has reached its full capacity. •...

  • Page 46: Nas Migration

    NAS Migration Requirements You can only migrate drives to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/go/nas-migration. Your device must meet the following requirements: • QTS NAS supports several types of NAS migration: •...

  • Page 47: Migrating A Nas

    1. Power off the source NAS and the destination NAS. 2. Remove the drives. Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. NAS Migration...

  • Page 48: Migrating Nas Data Using Hbs 3

    TS-x33 User Guide a. Remove the drives from the source NAS. b. Remove the drive trays from the destination NAS. 3. Install the drives. a. Install source NAS drives onto the destination NAS drive trays. b. Insert the drive trays into the destination NAS. 4.

  • Page 49: Creating A One-Way Sync Job

    TS-x33 User Guide Setting Description Password Specify a password that contains 1 to 16 characters from any of the following groups: • Letters: A to Z, a to z • Numbers: 0 to 9 • Special characters: . - _ ~ ! @ # $ % ^ & ( ) { } •...

  • Page 50: Importing Local Users Or Group Settings To The Destination Nas

    TS-x33 User Guide 10. Select the paired folders. Important • All subfolders and files in the selected folder are selected. • You can only sync up to 16 paired folders per job. a. Under the source, click A dialog box opens. b.
  • Page 51 TS-x33 User Guide d. Select Export user and user group settings. e. Click Next. The NAS user and user group settings are exported as a file and downloaded onto your computer. 3. Import user settings on the source NAS to the destination NAS. a.

  • Page 52: Troubleshooting

    TS-x33 User Guide 6. Troubleshooting This chapter describes basic troubleshooting information. Hot-Swapping Failed Drives The NAS supports hot-swapping drives when one member drive fails in RAID 1. 1. Log on to QTS. 2. Go to Main Menu > Storage & Snapshots > Storage > Disks/VJBOD . 3.

  • Page 53: Support And Other Resources

    TS-x33 User Guide Disk Volume RAID Recovery Support Maximum Number of Removed Drives RAID 0 RAID 1 Support and Other Resources QNAP provides the following resources: Resource Documentation https://download.qnap.com Compatibility List https://www.qnap.com/compatibility NAS Migration Compatibility https://www.qnap.com/go/nas-migration Expansion Unit Compatibility https://www.qnap.com/go/compatibility-expansion Service Portal https://service.qnap.com...

  • Page 54: Glossary

    Enables you to access QNAP devices over the internet without configuring complex port forwarding settings Qfinder Pro QNAP utility that lets you locate and access QNAP NAS devices in your local area network QNAP ID User account that enables you to use myQNAPcloud remote access and other QNAP services...

  • Page 55: Notices

    No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.
  • Page 56 TS-x33 User Guide the Free Software Foundation, use the GNU General Public License for most of our software; it applies also to any other work released this way by its authors. You can apply it to your programs, too. When we speak of free software, we are referring to freedom, not price. Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and charge for them if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs, and that you know you can do these things.
  • Page 57 TS-x33 User Guide tells the user that there is no warranty for the work (except to the extent that warranties are provided), that licensees may convey the work under this License, and how to view a copy of this License. If the interface presents a list of user commands or options, such as a menu, a prominent item in the list meets this criterion.
  • Page 58 TS-x33 User Guide You may convey verbatim copies of the Program's source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice; keep intact all notices stating that this License and any non-permissive terms added in accord with section 7 apply to the code;...
  • Page 59 TS-x33 User Guide at no further charge. You need not require recipients to copy the Corresponding Source along with the object code. If the place to copy the object code is a network server, the Corresponding Source may be on a different server (operated by you or a third party) that supports equivalent copying facilities, provided you maintain clear directions next to the object code saying where to find the Corresponding Source.
  • Page 60 TS-x33 User Guide Notwithstanding any other provision of this License, for material you add to a covered work, you may (if authorized by the copyright holders of that material) supplement the terms of this License with terms: a. Disclaiming warranty or limiting liability differently from the terms of sections 15 and 16 of this License;...
  • Page 61 TS-x33 User Guide 11. Automatic Licensing of Downstream Recipients. Each time you convey a covered work, the recipient automatically receives a license from the original licensors, to run, modify and propagate that work, subject to this License. You are not responsible for enforcing compliance by third parties with this License.
  • Page 62 TS-x33 User Guide Nothing in this License shall be construed as excluding or limiting any implied license or other defenses to infringement that may otherwise be available to you under applicable patent law. 13. No Surrender of Others' Freedom. If conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.

  • Page 63: Ce Notice

    TS-x33 User Guide If the disclaimer of warranty and limitation of liability provided above cannot be given local legal effect according to their terms, reviewing courts shall apply local law that most closely approximates an absolute waiver of all civil liability in connection with the Program, unless a warranty or assumption of liability accompanies a copy of the Program in return for a fee.

  • Page 64: Vcci Notice

    • Consult the dealer or an experienced radio/television technician for help. Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
  • Page 65 TS-x33 User Guide 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 Notices...
