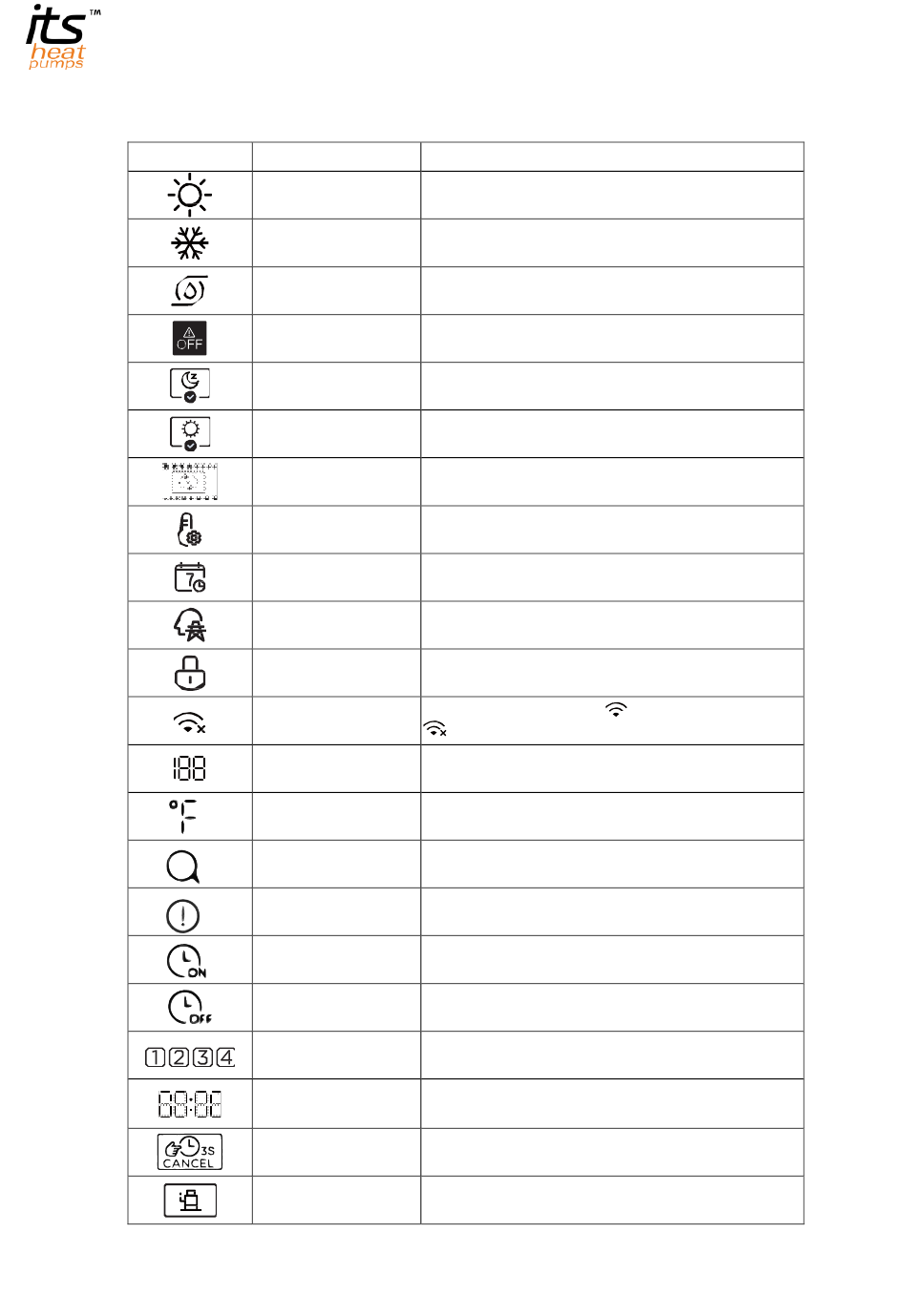

4.3 Display Icon descriptions

Symbols
Heating mode
Cooling mode
Pump mode
OFF Icon
Silence Function
Boost Function
Operating Icon
Setting Icon
Weekly Schedule Icon
Smart Grid Icon (Always OFF)
Lock Icon
WIFI Icon
Temp Icon
Temp Unit Icon
Query Icon
Alarm Icon
Timer-ON Icon
Timer-OFF Icon
Timer Icon
Clock Icon
Cancel Icon
Compressor Icon
Designation
Visible when in Heating Mode
Visible when in Cooling Mode
Visible when in Pump Only Mode
Visible when OFF (Manual & Timer OFF)
Flashing when Silent Mode activated
Flashing when Boost Mode activated
Visible when unit in Operation
Visible when adjusting settings
Visible when weekly-schedule is running from APP
Visible when Smart-Grid Function active
Flashing when Smart-Grid run time exceeded
Visible when keypad Locked
Visible when connected with WIFI
Flashing when searching network
Display current water Temperature or Setting adjustments
Selected temperature unit displayed °C or °F
Visible when querying
Flashing when Fault occurs
Visible when setting ON Timer
Visible when setting OFF Timer
Visible when set timer is active
Time display on main screen or
Display Error code when fault occurs or
Display parameters in settings
Visible when timer or buzzer can be deactivated
Visible when compressor is running
