WC003
V.12092023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lee WC003 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Manhattan Comfort Lee WC003

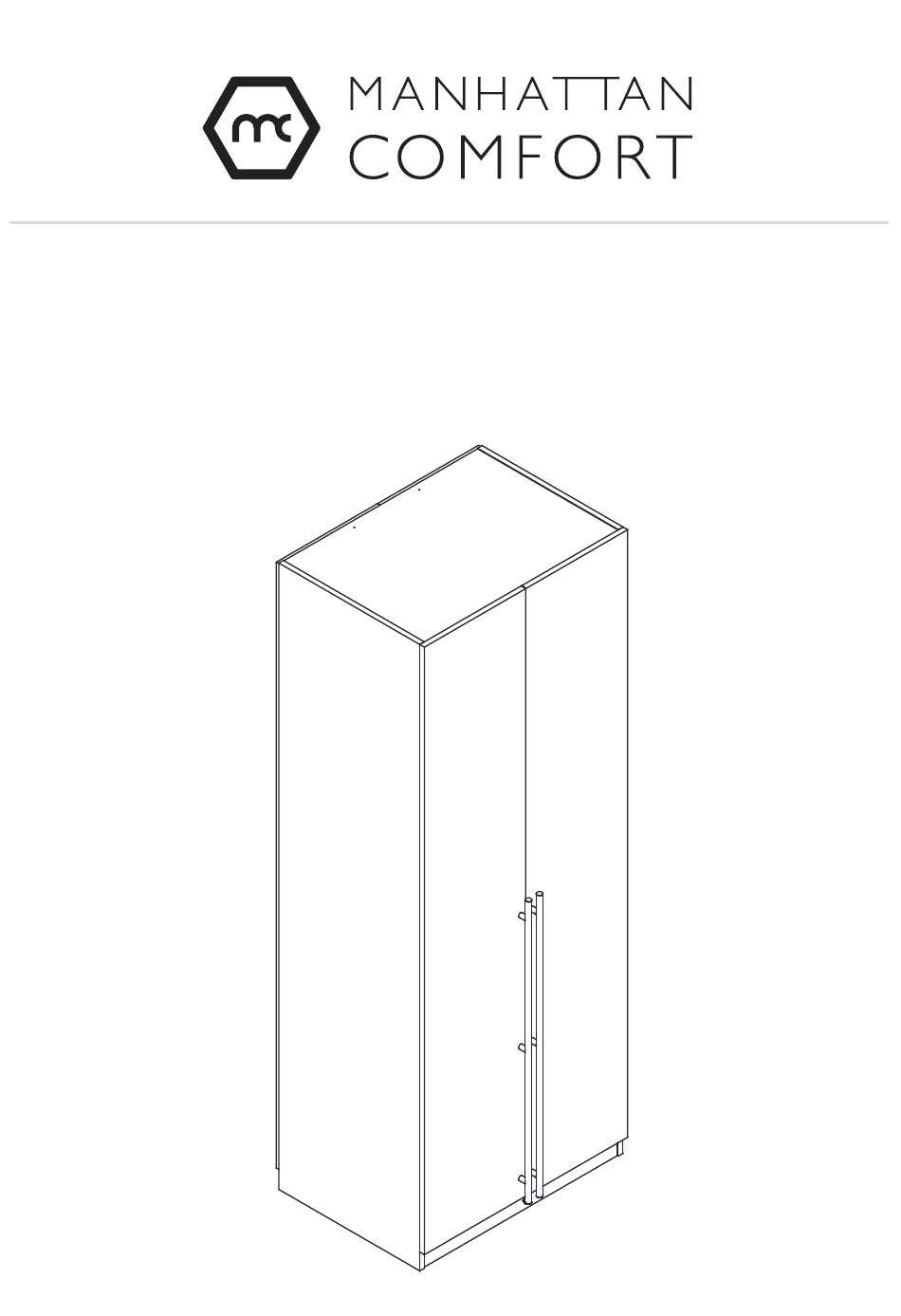

  • Page 1 WC003 V.12092023...
  • Page 2: For Best Results

    STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •...
  • Page 3: Included In This Package

    Included in this package: A. TOP (1) B. BOTTOM (1) C. LEFT END (1) D. RIGHT END (1) E. BACK (2) F. SHELF (3) G. SHELF (1) H. MOLDING (2) J. LEFT DOOR (1) K. RIGHT DOOR (1) R. HANGER ROD (1) S.
  • Page 4: Hardware Identification

    Hardware Identifi cation Page 4 WC003...
  • Page 5: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
  • Page 6 Page 6 WC003...
  • Page 7 Step 1 Insert four WOOD DOWELS to the TOP (A). ◆ Attach the TOP (A) to the ENDS (C and D) ◆ Tighten four PLASTIC CAM LOCK. Page 7 WC003...
  • Page 8 Step 2 Attach the MIDDLE SHELF (G) and the BOTTOM (B) to the ENDS (C and D) by placing the plastic ◆ connection into the slots and toward down. Page 8 WC003...
  • Page 9 Step 3 Insert six WOOD DOWELS to the MOLDING (H). ◆ Attach the MOLDING (H) to the ENDS (C and D), Slide the PLASTIC CONNECTIONS to the grooves. ◆ Page 9 WC003...
  • Page 10 Step 4 ◆ Attach two BACKS (E) by four WOOD DOWELS. Page 10 WC003...
  • Page 11 Step 5 Fasten the BACK (E) to the TOP (A), ENDS (C and D), MIDDLE SHELF (G) and the BOTTOM (B). ◆ Use twenty-eight BOLTS (2). You should start each BOLT a few turns before completely tightening any of them. ◆...
  • Page 12 Step 6 ◆ Fasten the SHOE RAIL (S) to the SHELF (F), USE nine BOLTS (3). Page 12 WC003...
  • Page 13 Step 7 Insert the SELF PIN (6) into the hole locations of your choice in the ENDS (C and D). ◆ Set the ADJUSTABLE SHELVES (F) onto the SHELF PINS. Page 13 WC003...
  • Page 14 Step 8 ◆ Put the HANGER ROD (R) onto the slot on ENDS (C and D). Page 14 WC003...
  • Page 15 Step 9 Carefully stand your unit upright. ◆ Fasten the DOORS (J and K) to the ENDS (C and D). Note : The hinges should be hooked first from the top to the middle and lower hinge combinations in the "PRESS" order.
  • Page 16 Step 10 ◆ Fasten the DOOR PULL (5) to the DOORS (J and K), USE six BOLTS (1). Page 16 WC003...
  • Page 17 Step 11 Open the FURNITURE TIPPING RESTRAINT KIT (96) and fasten the SAFETY STRAP to the TOP (A). Use the SHORT SCREW through the hole in the strap and into the top surface of the TOP (1). ◆ Place your unit in its final location. NOTE: The following instructions show your unit being fastened to a wall stud.
  • Page 18 Step 12 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. 2nd- Drill a 3/8" hole on the mark. 3rd- While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE ◆...

This manual is also suitable for:

Lee 2-wc003-whLee 3-wc003-wh
