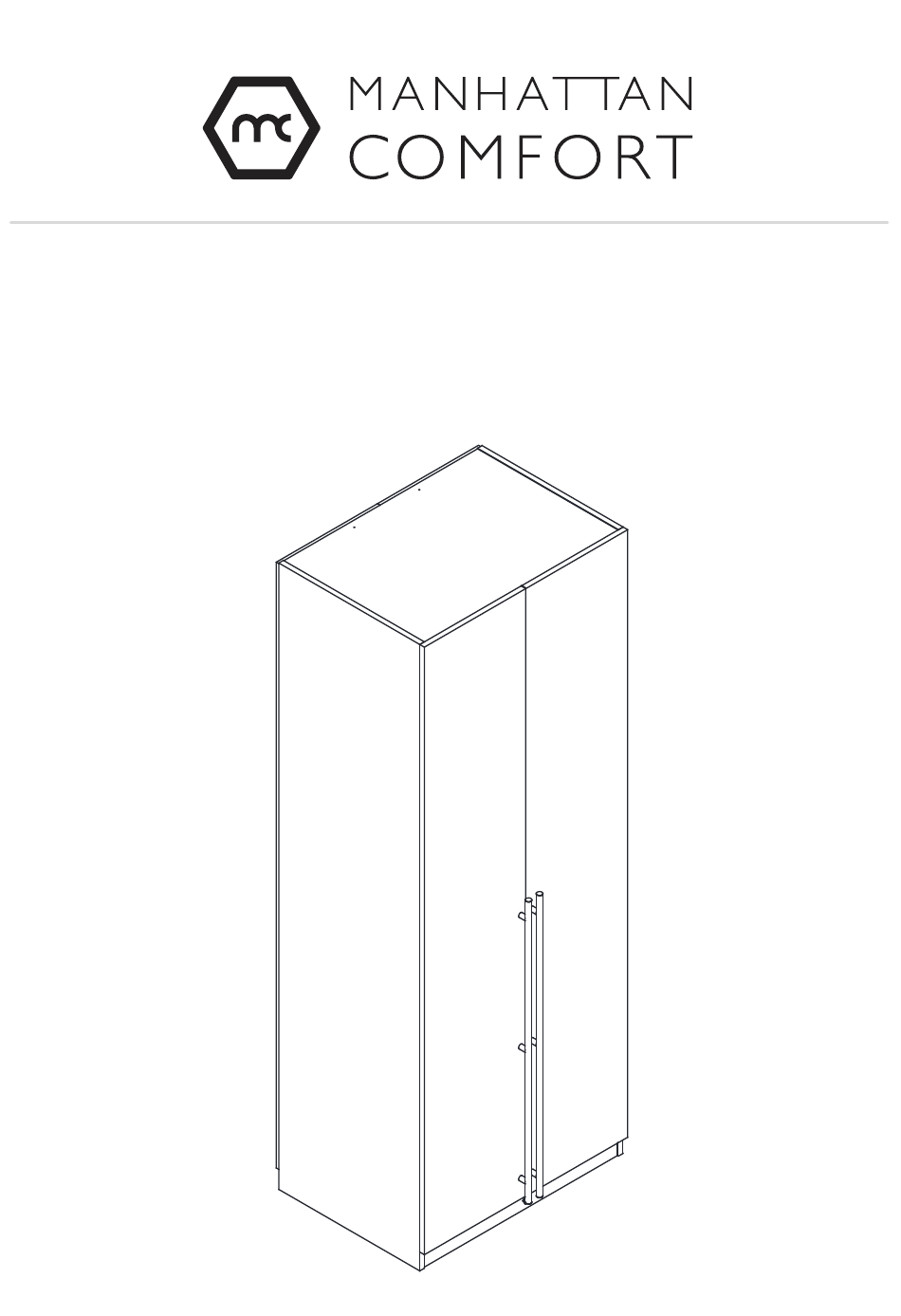

- Page 1 Assembly Guide WC002 V.12092023...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Included In This Package
Included in this package: A. TOP (1) B. BOTTOM (1) C. LEFT END (1) D. RIGHT END (1) E. BACK (2) G. MIDDLE SHELF (1) H. MOLDING (2) J. LEFT DOOR (1) K. RIGHT DOOR (1) L. DRAWER FRONT (2) M. -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 WC002... -
Page 5: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada. - Page 6 Page 6 WC002...
- Page 7 Step 1 Insert four WOOD DOWELS to the TOP (A). ◆ Attach the TOP (A) to the ENDS (C and D). ◆ Tighten four PLASTIC CAM LOCK. Page 7 WC002...
- Page 8 Step 2 Attach the MIDDLE SHLEF (G) and the BOTTOM (B) to the ENDS (C and D) by placing the plastic connection ◆ into the slots and toward the down. Page 8 WC002...
- Page 9 Step 3 ◆ Insert six WOOD DOWELS to the MOLDING (H). Attach the MOLDING (H) to the ENDS (C and D), slide the PLASTIC CONNECTIONS to the grooves. ◆ Page 9 WC002...
- Page 10 Step 4 ◆ Attach two BACKS (E) by the four WOOD DOWELS. Page 10 WC002...
- Page 11 Step 5 Fasten the BACK (E) to the TOP (A), ENDS (C and D), MIDDLE SHELF (G) and the BOTTOM (B). Use ◆ twenty-eight BOLTS (2). You should start each BOLT a few turns before completely tightening any of them. ◆...
- Page 12 Step 6 Attach the DRAWER SIDES (M and O) to the DRAWER FRONT(L), slide the PLASTIC CONNECTIONS to ◆ the grooves. Slide a DRAWER BOTTOM (Q) into the grooves. in the DRAWER SIDES (M and O) and DRAWER FRONT (L). ◆...
- Page 13 Step 7 ◆ Fasten the DRAWER BACK (P) to the DRAWER SIDES (M and O). Use eight BOLTS (2). Page 13 WC002...
- Page 14 Step 8 ◆ Fasten the DRAWER PULL (6) to the DRAWER FRONT(L). Use four BOLTS (3). Page 14 WC002...
- Page 15 Step 9 To insert the DRAWERS into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit until the drawer is fully inserted. The drawer will push in hard until it is ◆...
- Page 16 Step 10 ◆ Put the HANGER ROD (R) onto the slot on ENDS (C and D). Page 16 WC002...
- Page 17 Step 11 Carefully stand your unit upright. ◆ Fasten the DOORS (J and K) to the ENDS (C and D). Note : The hinges should be hooked first from the top to the middle and lower hinge combinations in the "PRESS" order.
- Page 18 Step 12 ◆ Fasten the DOOR PULLS (5) to the DOORS (J and K). Use six BOLTS (1). Page 18 WC002...
- Page 19 Step 13 Open the FURNITURE TIPPING RESTRAINT KIT (96) and fasten the SAFETY STRAP to the TOP (A). Use the SHORT SCREW through the hole in the strap and into the top surface of the TOP (1). ◆ Place your unit in its final location. NOTE: The following instructions show your unit being fastened to a wall stud.
- Page 20 Step 14 1st- With your pencil, strike a mark through the center of the hole in the SAFETY STRAP. 2nd- Drill a 3/8" hole on the mark. 3rd- While you squeeze the wings together, gently tap the WALL ANCHOR from the FURNITURE ◆...
