ELENSIO 200 - 250 - 200 H* - 250 H
Heat pump water heater
Troubleshooting: H06.44 and E06.50
JS
Checks in case of recurring faults

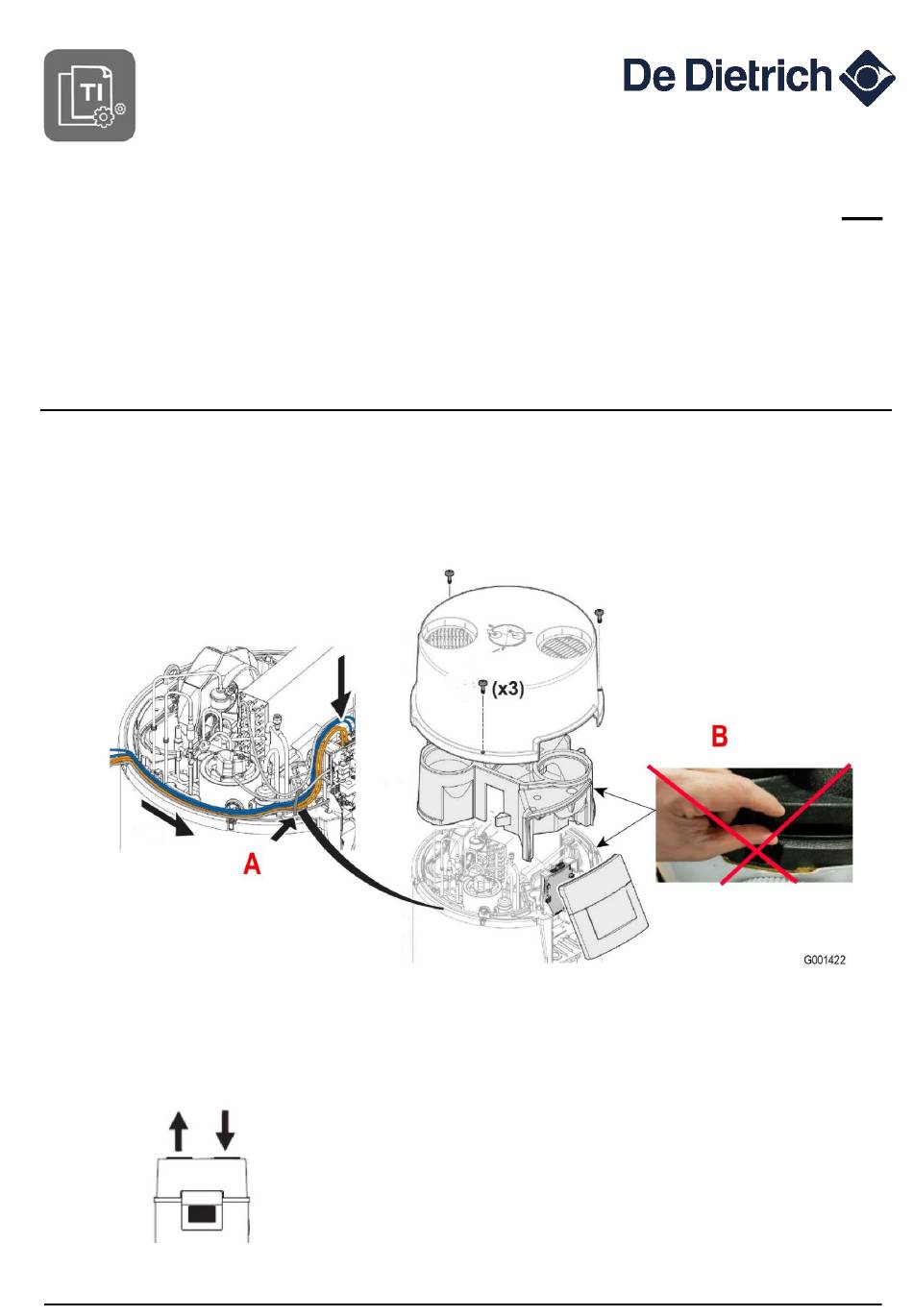

1. Check that the reassembly is correct
A : Cables in place and secured with cable ties
B : No gap between heater and intermediate cover after reassembly
2. Check the air duct connections
2.1 Comply with authorised connections: non-ducted / ducted / single-ducted
Without ducts (and without accessory ...) :
ATS-ITBDU-HP
N° IT2726-en
H06.44
and
Warning : Any addition of accessory(ies) to the
air inlet/outlet (elbow, duct...) will be considered
as a connection with duct.
1/5
E06.50:
*
Model depending on the country
EN
10/04/2024
IT2726-en
