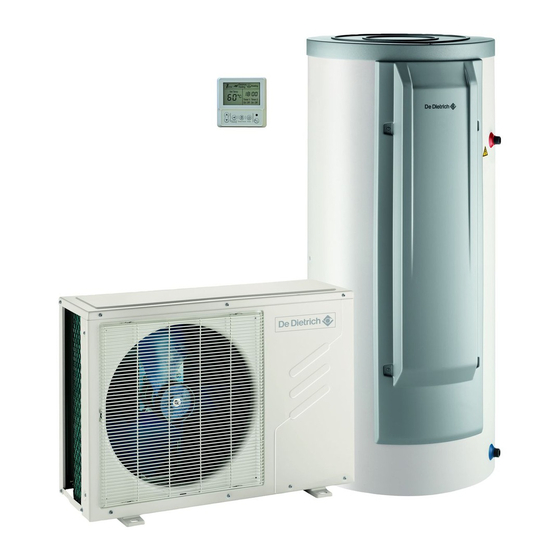

DeDietrich KALIKO TWH Split FS 200 E User Manual
  1. Manuals
  2. Brands
  3. DeDietrich Manuals
  4. Water Heater
  5. KALIKO TWH Split FS 200 E
  6. User manual

DeDietrich KALIKO TWH Split FS 200 E User Manual

Thermodynamic water heater
Hide thumbs Also See for KALIKO TWH Split FS 200 E:
Table of Contents

Advertisement

Quick Links

Download this manual
en
KALIKO SPLIT
Thermodynamic water heater
TWH Split FS 200 E
TWH Split FS 270 E
Serv. ref. SODU 2 M R1
S U S T A I N A B L E C O M F O R T ®
EASYLIFE
User Guide
KALIKO SPLIT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KALIKO TWH Split FS 200 E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DeDietrich KALIKO TWH Split FS 200 E

Summary of Contents for DeDietrich KALIKO TWH Split FS 200 E

  • Page 1 EASYLIFE KALIKO SPLIT User Guide Thermodynamic water heater KALIKO SPLIT TWH Split FS 200 E TWH Split FS 270 E Serv. ref. SODU 2 M R1 S U S T A I N A B L E C O M F O R T ®...
  • Page 2 Dear Customer, Thank you very much for buying this appliance. Please read through the manual carefully before using the product, and keep it in a safe place for later reference. In order to ensure continued safe and efficient operation we recommend that the product is serviced regularly. Our service and customer service organisation can assist with this.

  • Page 3: Table Of Contents

    Contents Contents Safety ................... . 5 General safety instructions .
  • Page 4 Contents Maintenance ..................29 Maintenance .

  • Page 5: Safety

    1 Safety Safety General safety instructions Danger This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 6: Recommendations

    1 Safety Important Only qualified professionals are authorised to assemble, connect, commission and service the installation. Recommendations Important The thermodynamic water heater is intended to be permanently connected to the domestic water mains network. Important Respect the minimum and maximum water inlet pressure to ensure correct operation of the domestic hot water tank: refer to the chapter Technical Specifications.
  • Page 7 1 Safety Caution Do not neglect to service the thermodynamic water heater. Contact a qualified professional or take out a maintenance contract for the obligatory annual servicing of the thermodynamic water heater. Failure to service the appliance voids the warranty. Caution Have the domestic hot water tank and heating system drained by a qualified professional if the...
  • Page 8 1 Safety Caution The electric part of the domestic hot water tank must always be connected to the protective earthing. Earthing must comply with the prevailing installation standards. Earth the appliance before making any electrical connections. For the type and calibre of the protective equipment, refer to the chapter Electrical Connections in the Installation and Service Manual.

  • Page 9: Specific Safety Instructions

    1 Safety Specific safety instructions Warning Refrigerant fluid and pipes: Only use R-134a refrigerant fluid to fill the system. Use tools and pipe components especially designed for use with R-134a refrigerant fluid. Use copper pipes deoxidised with phosphorus to carry the refrigerant fluid. Use beading to guarantee the tightness of the connections.

  • Page 10: Installer's Liability

    1 Safety 1.4.2 Installer's liability The installer is responsible for the installation and initial commissioning of the appliance. The installer must observe the following instructions: Read and follow the instructions given in the manuals provided with the appliance. Install the appliance in compliance with prevailing legislation and standards.

  • Page 11: Composition Of/Information On The Ingredients

    1 Safety This product is not classified as a "hazardous preparation" according to European Union regulations. 1.5.3 Composition of/Information on the ingredients Chemical nature: 1,1,1,2 - Tetrafluoroethane R-134a. Ingredients that may lead to hazardous situations: Tab.1 Fluid ingredients R-134a Substance name Concentra­...

  • Page 12: In The Event Of Accidental Spillage

    1 Safety Special intervention methods: Cool the volumes exposed to heat with water spray. Protection of the firemen: Full self-contained breathing apparatus. Complete body protection. 1.5.6 In the event of accidental spillage Individual precautions: Avoid contact with the skin and eyes. Do not intervene without appropriate protective equipment.

  • Page 13: Regulations

    1 Safety 1.5.9 Regulations Regulation (EU) No. 517/2014 of the European Parliament and of the Council of 16 April 2014 on fluorinated greenhouse gases and repealing Regulation (EC) No. 842/2006. Classified installations No. 1185. 7679542 - v03 - 29102018 TWH Split FS...

  • Page 14: About This Manual

    2 About this manual About this manual Website The user manual can also be found on our website. General This manual is intended for the end user of a TWH Split FS 200 E or TWH Split FS 270 E thermodynamic water heater comprising a SFS 200 E or SFS 270 E domestic hot water tank and an SODU 2 M outdoor unit with display.

  • Page 15: Technical Specifications

    3 Technical specifications Technical specifications Homologations 3.1.1 Certifications NF certification Specifications LCIE 103–15/B (July 2011) for NF Electricity Performance Marking This product complies with the requirements of the following NF Electricity Standards: EN 60335-1:2012 + A11:2014 EN 60335-2-21:2003 + A1:2005 + A2:2008 EN 60335-2-40:2003 + A11:2004 + A12:2005 + A1:2006 + A2:2009 + A13:2012 EN 62233:2008...
  • Page 16 3 Technical specifications Parameters Unit TWH Split FS 200 E TWH Split FS 270 E Daily fuel consumption ( fuel Emissions of nitrogen oxides ( mg/kWh Qfuel, Weekly fuel consumption with smart controls ( week smart Weekly electricity consumption with smart controls ( elec week smart...

  • Page 17: Description Of The Product

    4 Description of the product Description of the product General description The thermodynamic water heaters in the KALIKO SPLIT range have the following specifications: Floor-standing thermodynamic storage water heater, Heat pump extracting energy from the outside air, Control panel used to: display the domestic hot water temperature, adjust the timer program.

  • Page 18: Operating Principle For The Thermodynamic Water Heater With Outdoor Unit

    4 Description of the product 4.2.2 Operating principle for the thermodynamic water heater with outdoor unit Depending on the source of energy used to heat the water in the thermodynamic water heater (heat pump only, immersion heater only, or heat pump and immersion heater combined), the heating time for the thermodynamic water heater varies according to the room temperature.
  • Page 19 4 Description of the product Tab.3 T = Ambient temperature Source(s) of energy used At least one of the following 3 con­ Immersion heater ditions must be true: T < –15 °C Water temperature > variable temperature set point according to the outdoor temperature T >...

  • Page 20: Limit Temperatures Of The Thermodynamic Water Heater

    4 Description of the product Tab.5 T = Ambient temperature Source(s) of energy used T < –15 °C Immersion heater Water temperature > variable temperature set point according to the outdoor temperature T > +43 °C -15°C < T < 43°C Heat pump and immersion heater operate simultaneously if necessa­...

  • Page 21: Main Components

    4 Description of the product Main components 4.3.1 Domestic hot water tank Fig.6 Main components 1 Top cover 2 Top insulation 3 Sensor cable duct 4 230-V sensor cable duct 5 Condenser tube 6 Domestic hot water outlet 7 Magnesium anode 8 Sensor tube 9 Temperature sensor 10 Steatite immersion heater...

  • Page 22: Outdoor Unit

    4 Description of the product 4.3.2 Outdoor unit Fig.7 Main components 1 Evaporator 10 Filter-drier 2 Fan 11 Outside temperature sensor 3 Compressor 12 Electronic expansion valve 4 Compressor outlet temperature sensor 13 High pressure pressure switch 5 Display connection terminal block 14 4-way valve 6 Temperature sensor connector 15 Electrical connection terminal block...

  • Page 23: Control Panel Description

    4 Description of the product Control panel description 4.4.1 Description of the control panel keys Fig.8 1 Keys Selection Setting the values 2 On / off key for forced electrical back-up 3 Timer program access key 4 Confirm key key: Hybrid Mode Opt Mode Domestic hot water production...

  • Page 24: Operation

    5 Operation Operation Initial commissioning Fig.10 Initial commissioning must be performed by a qualified professional. Commissioning of the thermodynamic water heater should be carried out: When it is used for the first time; After a prolonged shut-down; After any event that may require complete re-installation. Commissioning of the thermodynamic water heater allows the user to review the various settings and checks to be made to start up the water Hybrid Mode...

  • Page 25: Settings

    6 Settings Settings List of parameters Tab.6 Operating modes Digit Associated Mode AUTO MODE = AUTOMATIC MODE HYBRID MODE = HYBRID MODE OPT.BACKUP = PEAK RATE/OFF-PEAK RATE OPTIMISATION MODE RESET METERS COOLING MODE Tab.7 Adjustable parameters Parameter Description Factory setting Hysteresis for starting heating.

  • Page 26: Setting The Time

    6 Settings 3. Confirm the selection by pressing the key. 6.2.2 Setting the time Fig.11 1. Press the key to set the time. The hours start flashing. 2. Set the hours and minutes by pressing the keys. 3. Confirm the hours and minutes by pressing the key.

  • Page 27: Activate Forced Electrical Back-Up

    6 Settings Domestic hot water setpoint according to the number of showers per day Tab.8 Domestic hot water setpoint Number of showers DHW setpoint for TWH DHW setpoint for TWH per day Split FS 200 E Split FS 270 E 50 °C 50 °C 50 °C...
  • Page 28 6 Settings 2. Scroll through the measured values with the keys. Tab.9 Code Description Factory setting / Unit Water temperature °C Outside air temperature °C Evaporation temperature °C Hysteresis for starting heating. 5°C Can be set from 3 to 20°C. Electric power consumption Differential live/neutral current Total energy consumption for the thermodynamic water heater...

  • Page 29: Maintenance

    7 Maintenance Maintenance Maintenance Caution Installation and maintenance of the appliance must be carried out by a certified professional in accordance with prevailing statutory texts and codes of practice. Important When the appliance is switched off, the fan continues to run by inertia for approximately one minute.

  • Page 30: Troubleshooting

    8 Troubleshooting Troubleshooting Resolving error codes Fig.16 If an error occurs, the control panel will display a key and a code The code is important for the correct and rapid diagnosis of the type of malfunction and for any technical assistance that may be needed. 1.

  • Page 31: Disposal/Recycling

    9 Disposal/recycling Disposal/recycling General Fig.17 Recycling Warning This appliance bears the recycling symbol pursuant to European Directive 2002/96/EC on Waste from Electrical and Electronic Equipment (WEEE). In correctly disposing of this appliance, you are helping to prevent any consequences harmful to the MW-3000179-03 environment or human health.

  • Page 32: 10 Appendix

    10 Appendix 10 Appendix 10.1 EC Declaration of Conformity The unit complies with the standard type described in the EC declaration of conformity. It has been manufactured and commissioned in accordance with European directives. The original declaration of conformity is available from the manufacturer. 10.2 ErP information Tab.12...
  • Page 33 10 Appendix 7679542 - v03 - 29102018 TWH Split FS...
  • Page 34 10 Appendix TWH Split FS 7679542 - v03 - 29102018...
  • Page 35 © Copyright All technical and technological information contained in these technical instructions, as well as any drawings and technical descriptions supplied, remain our property and shall not be multiplied without our prior consent in writing. Subject to alterations.
  • Page 36 57, rue de la Gare - F-67580 Mertzwiller SERVICE CONSOMMATEURS 03 88 80 27 00 0,15 € / min 0 825 120 520 03 88 80 27 99 www.dedietrich-thermique.fr 000 «БДP T » VAN MARCKE 129164, Россия, г. Москва Weggevoerdenlaan 5 Зубарев...
