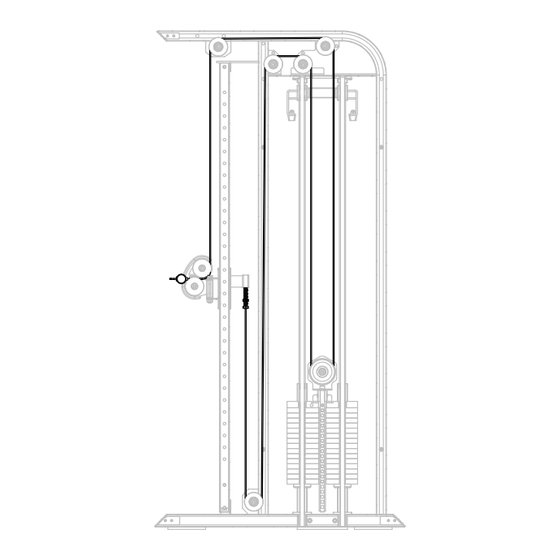

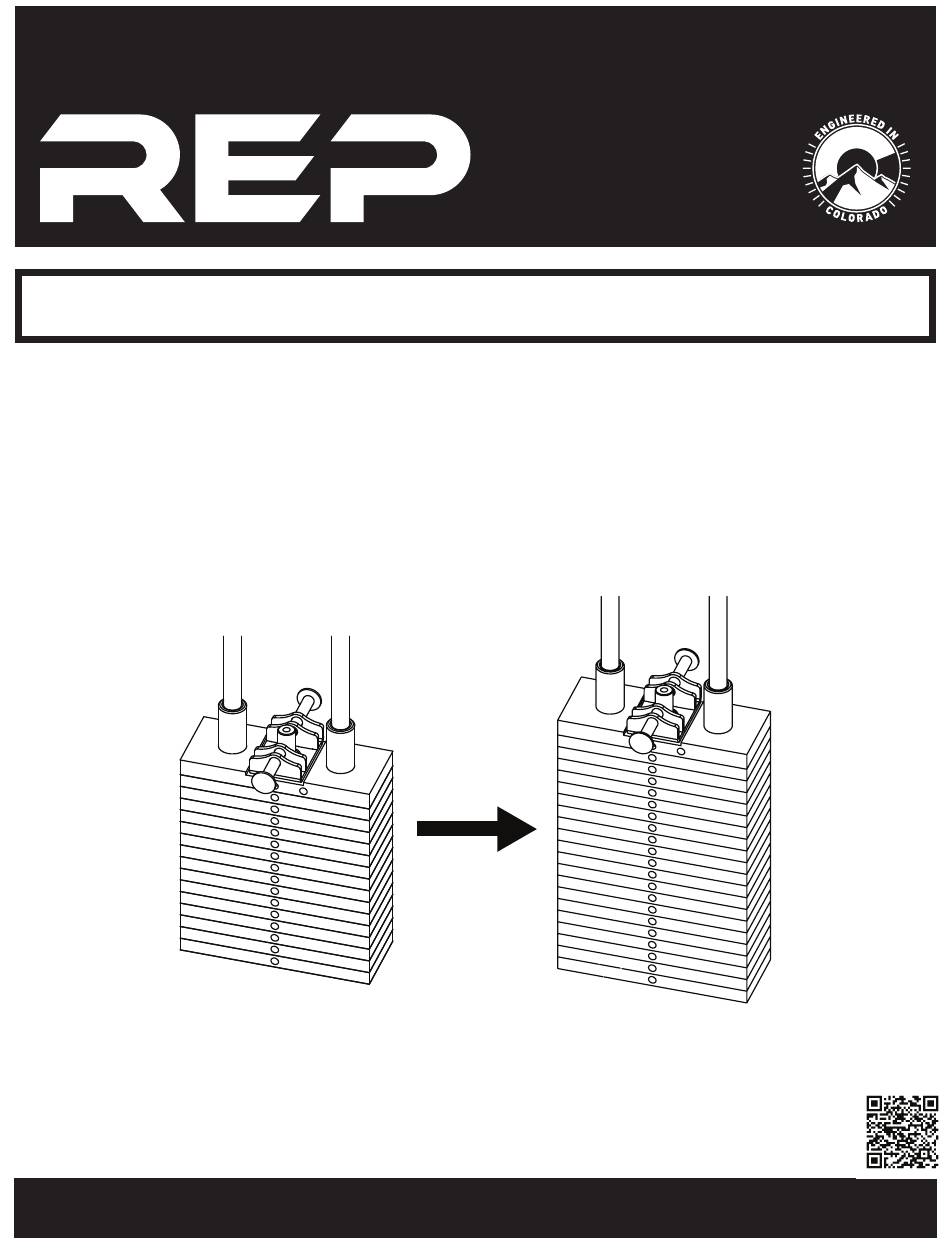

ASSEMBLY INSTRUCTIONS
FT-3500 WEIGHT STACK
UPGRADE
FT-3500-UPGRADE
85LB
110LB
STILL NEED HELP WITH ASSEMBLY?
VISIT OUR ASSEMBLY LIBRARY HERE:
HELP.REPFITNESS.COM
R E P F I T N E S S
45-0228-V1
W W W .
. C O M

Advertisement

loading
Need help?

Need help?

Do you have a question about the FT-3500 and is the answer not in the manual?

Questions and answers

Related Manuals for REP FT-3500

Summary of Contents for REP FT-3500

  • Page 1 ASSEMBLY INSTRUCTIONS FT-3500 WEIGHT STACK UPGRADE FT-3500-UPGRADE 85LB 110LB STILL NEED HELP WITH ASSEMBLY? VISIT OUR ASSEMBLY LIBRARY HERE: HELP.REPFITNESS.COM R E P F I T N E S S 45-0228-V1 W W W . . C O M...

  • Page 2: Parts List

    PARTS LIST 1X REQUIRED 17MM WRENCH 1X REQUIRED 2X REQUIRED 10MM 1X REQUIRED 25-0308 STEP 10 WEIGHT STACK STICKER SET STEP 17 IF YOU ARE MISSING ANY PARTS, OR OTHERWISE HAVE ANY WARRANTY ISSUES, PLEASE FILE A WARRANTY CLAIM ON OUR WEBSITE: R E P F I T N E S S W W W .
  • Page 3 IF YOU NEED TO REPLACE ANY PARTS OR HAVE QUESTIONS PLEASE CONTACT OUR CUSTOMER SUPPORT TEAM AT INFO@REPFITNESS.COM OR 720-420-1731. TIPPING PREVENTION REP FITNESS STRONGLY RECOMMENDS THAT YOU MOUNT YOUR FUNCTIONAL TRAINER INTO THE FLOOR TO PREVENT TIPPING. IF MOUNTING TO AN ELEVATED FLOOR, PLEASE MOUNT AT YOUR DISCRETION.
  • Page 4 DO NOT DISCARD ANY HARDWARE IF YOU PERFORM ANY ACTION NOT CALLED OUT IN THIS MANUAL PLEASE REFER TO THE ORIGINAL FT-3500 MANUAL TO ENSURE PROPER INSTALLATION. THE MANUAL CAN BE FOUND AT HELP.REPFITNESS.COM R E P F I T N E S S W W W .
  • Page 5 M8X1.25, L13, LOW PROFILE SOCKET HEAD CAP SCREW, BLACK 10-0695 M8 WASHER BLACK 10-0424 1X REQUIRED 15-1642 10-0424 10-0695 R E P F I T N E S S W W W . . C O M...
  • Page 6 REMOVE EXISTING STICKERS R E P F I T N E S S W W W . . C O M...
  • Page 7 17MM 2X REQUIRED 25-1511 10-0421 10-0445 10-0445 10-0475 R E P F I T N E S S W W W . . C O M...
  • Page 8 10MM 1X REQUIRED 10-0172 10-0015 25-1734 LOOSEN SET SCREWS IN PULLEY BRACKETS R E P F I T N E S S W W W . . C O M...
  • Page 9 10-0179 R E P F I T N E S S W W W . . C O M...
  • Page 10 R E P F I T N E S S W W W . . C O M...
  • Page 11 1X REQUIRED LOOSEN SET SCREW IN COLLARS (10-0294) R E P F I T N E S S W W W . . C O M...
  • Page 12 1X REQUIRED M8 WASHER 10-0424 M8X1.25 BUTTON HEAD HEX DRIVE 10-0775 R E P F I T N E S S W W W . . C O M...
  • Page 13 1X REQUIRED 10-0527 10-0294 25-1891 25-1064 25-0308 10-0225 25-0313 15-1625 R E P F I T N E S S W W W . . C O M...
  • Page 14 GUIDE RODS 15-1625 WEIGHT STACK SPACER RUBBER STOP SET SCREW RUBBER INSERT 25-0313 10-0225 COLLAR 10-0527 2.5LB ADD-ON 25-0313 IS NOT 10-0294 WEIGHT WEIGHT PLATE USED IN 110 LB 25-1891 25-0308 CONFIGURATION 110 LB - 10-0527 10-0294 1X REQUIRED HEADPLATE 25-1064 25-1891 25-1894...
  • Page 15 1X REQUIRED M8 WASHER 10-0424 M8X1.25 BUTTON HEAD HEX DRIVE 10-0775 R E P F I T N E S S W W W . . C O M...
  • Page 16 1X REQUIRED TIGHTEN SET SCREW IN COLLARS (10-0294) R E P F I T N E S S W W W . . C O M...
  • Page 17 R E P F I T N E S S W W W . . C O M...
  • Page 18 WEIGHT STACK PIN 10-0179 R E P F I T N E S S W W W . . C O M...
  • Page 19 M12X1.75, L30, 10MM SOCKET HEAD CAP SCREW, SILVER 1X REQUIRED 10-0172 M12 WASHER, SILVER 10-0015 HEADPLATE PULLEY BRACKET 25-1734 10-0172 10-0015 25-1734 LOOSEN SET SCREWS IN PULLEY BRACKETS 1X REQUIRED R E P F I T N E S S W W W .
  • Page 20 M10 WASHER, M10X1.50, NUT, BLACK NYLON INSERT, 10-0445 M10X1.50, L45, BLACK HEADPLATE PULLEY BLACK 10-0421 25-1511 10-0475 17MM 2X REQUIRED 25-1511 10-0421 10-0445 10-0445 10-0475 R E P F I T N E S S W W W . . C O M...
  • Page 21 INSERT WEIGHT SELECTOR PIN INTO ALL POSITIONS TO ENSURE CORRECT ALIGNMENT R E P F I T N E S S W W W . . C O M...
  • Page 22 TO INSTALL THE OTHER WEIGHT STACK REPEAT R E P F I T N E S S W W W . . C O M...
  • Page 23 CRITICAL STEPS 1. BOLTS: ENSURE ALL BOLTS HAVE BEEN PROPERLY TIGHTENED. 2. GROOVES: CONFIRM THE CABLES ARE SEATED WITHIN THE PULLEY GROOVES. 3. CABLE RUBBING: PULL CABLES TO CHECK FOR EXCESS RESISTANCE. IF IT SEEMS THE FRICTION IS TOO HIGH, MAKE SURE THE CABLES ARE NOT RUBBING ON ANY- THING.
  • Page 24 M8X1.25, L13, LOW PROFILE SOCKET HEAD CAP SCREW, BLACK 10-0695 M8 WASHER BLACK 10-0424 1X REQUIRED 15-1642 10-0695 10-0424 R E P F I T N E S S W W W . . C O M...
  • Page 25 WEIGHT STACK STICKER SETS 40-0102 R E P F I T N E S S W W W . . C O M...

  • Page 26: Maintenance

    MAINTENANCE 1. GUIDE RODS: CLEAN THE GUIDE RODS AND REAPPLY SILICONE SPRAY TO THE GUIDE RODS EVERY 3 MONTHS. 2. CABLE TENSION: OVER TIME THE CABLES WILL STRETCH AND TENSION WILL REDUCE. TO KEEP IDEAL PERFORMANCE TIGHTEN THE ADJUSTER BOLT ON THE TROLLEY.
  • Page 27 R E P F I T N E S S W W W . . C O M...
  • Page 28 R E P F I T N E S S W W W . . C O M...
