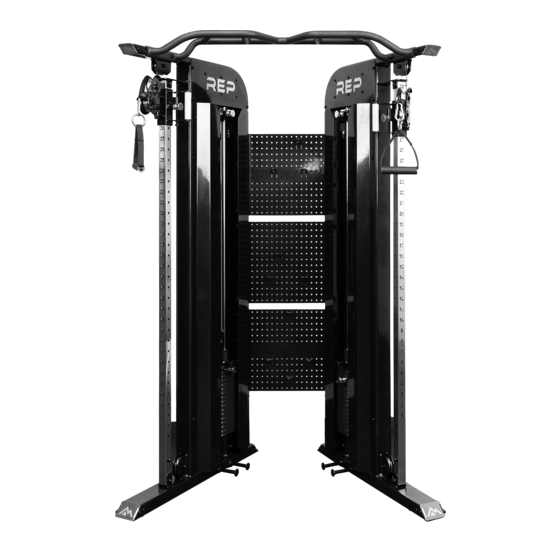

ASSEMBLY INSTRUCTIONS
FT-3500 CABLE REPLACEMENT
STILL NEED HELP WITH ASSEMBLY?
VISIT OUR ASSEMBLY LIBRARY HERE:
HELP.REPFITNESS.COM
R E P F I T N E S S
45-0236-V1
45-0236-V1
W W W .
. C O M

Advertisement

loading
Need help?

Need help?

Do you have a question about the FT-3500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REP FT-3500

Summary of Contents for REP FT-3500

  • Page 1 ASSEMBLY INSTRUCTIONS FT-3500 CABLE REPLACEMENT STILL NEED HELP WITH ASSEMBLY? VISIT OUR ASSEMBLY LIBRARY HERE: HELP.REPFITNESS.COM R E P F I T N E S S 45-0236-V1 45-0236-V1 W W W . . C O M...
  • Page 2 PARTS 17 MM WRENCH 19 MM WRENCH 6 MM 1X REQUIRED 2X REQUIRED 1X OPTIONAL CABLE 25-1736 STEP 5 IF YOU ARE MISSING ANY PARTS, OR OTHERWISE STOP HAVE ANY WARRANTY ISSUES, PLEASE FILE A WARRANTY CLAIM ON OUR WEBSITE: R E P F I T N E S S W W W .
  • Page 3 CUSTOMER SUPPORT TEAM AT INFO@REPFITNESS.COM OR 720-420-1731. TIPPING PREVENTION REP FITNESS STRONGLY RECOMMENDS THAT YOU MOUNT YOUR FUNCTIONAL TRAINER INTO THE FLOOR TO PREVENT TIPPING. PLEASE REFER TO THE ORIGINAL MANUAL FOR HOW TO MOUNT TO A CONCRETE FLOOR. IF MOUNTING TO AN ELEVATED FLOOR, PLEASE MOUNT AT YOUR DISCRETION.
  • Page 4 6 MM 1X REQUIRED REMOVE THE SHROUD ONLY OF THE SIDE WITH THE REPLACED CABLE. 15-1642 10-0424 10-0695 R E P F I T N E S S W W W . . C O M...
  • Page 5 6 MM 1X REQUIRED 10-0695 10-0424 25-1738 10-0695 10-0424 25-1737 R E P F I T N E S S W W W . . C O M...
  • Page 6 19 MM WRENCH 1X OPTIONAL UNTHREAD JAM NUT FIRST AND THEN THE BOLT ENTIRELY. R E P F I T N E S S W W W . . C O M...
  • Page 7 17 MM WRENCH 2X REQUIRED REMOVE ALL PULLEYS. R E P F I T N E S S W W W . . C O M...
  • Page 8 REMOVE THE CABLE IN THE DIRECTION SHOWN. R E P F I T N E S S W W W . . C O M...
  • Page 9 CABLE 25-1736 UNWIND REPLACEMENT CABLE LENGTH NOT TO SCALE. ENSURE CABLE HAS NO TWISTS, COILS, OR KINKS. R E P F I T N E S S W W W . . C O M...
  • Page 10 STOP THREAD THE ENTIRE CABLE THROUGH THE JOINTS BEFORE MOUNTING THE PULLEYS R E P F I T N E S S W W W . . C O M...
  • Page 11 17 MM WRENCH 2X REQUIRED INSTALL CABLE IN THE DIRECTION OF THE ARROW 25-0311 10-0445 10-0421 10-0445 10-0475 R E P F I T N E S S W W W . . C O M...
  • Page 12 17 MM WRENCH 2X REQUIRED 10-0445 10-0445 10-0475 10-0421 25-0311 NOTE: CABLE THREADS THROUGH THE TOP TUBE R E P F I T N E S S W W W . . C O M...
  • Page 13 17 MM WRENCH 2X REQUIRED NOTE: CABLE THREADS BETWEEN THE PULLEY AND STOPPER BARREL. 10-0445 10-0421 10-0445 10-0476 25-0311 R E P F I T N E S S W W W . . C O M...
  • Page 14 17 MM WRENCH 2X REQUIRED 25-1511 10-0445 10-0445 10-0475 10-0421 R E P F I T N E S S W W W . . C O M...
  • Page 15 17 MM WRENCH 2X REQUIRED 10-0445 25-0311 10-0421 10-0445 10-0476 PULLEY ENTERS THROUGH HERE NOTE: CABLE THREADS BETWEEN THE PULLEY AND STOPPER BARREL THEN WITHIN THE VERTICAL TUBE. R E P F I T N E S S W W W . .
  • Page 16 17 MM WRENCH 2X REQUIRED 25-0311 10-0445 10-0421 10-0476 10-0445 R E P F I T N E S S W W W . . C O M...
  • Page 17 17 MM WRENCH 2X REQUIRED 10-0445 25-0311 10-0421 10-0445 10-0475 R E P F I T N E S S W W W . . C O M...
  • Page 18 ENSURE CABLES ARE CORRECTLY SEATED IN PULLEY GROOVE R E P F I T N E S S W W W . . C O M...
  • Page 19 19 MM WRENCH 1X OPTIONAL TIGHTEN ADJUSTER BOLT UNTIL THE HEADPLATE BEGINS TO LIFT UP, THEN LOOSEN ADJUSTER BOLT A QUARTER TURN. TIP: LIFT THE HEADPLATE AND INSERT THE WEIGHT SELECTOR PIN IN THE SECOND PLATE, LEAVING AT LEAST TWO PLATES WORTH OF GAP BETWEEN THE HEADPLATE AND SECOND PLATE AS SHOWN.
  • Page 20 CRITICAL STEPS 1. BOLTS: ENSURE ALL BOLTS HAVE BEEN PROPERLY TIGHTENED. 2. GROOVES: CONFIRM THE CABLES ARE SEATED WITHIN THE PULLEY GROOVES. 3. CABLE RUBBING: PULL CABLES TO CHECK FOR EXCESS RESISTANCE. IF IT SEEMS THE FRICTION IS TOO HIGH, MAKE SURE THE CABLES ARE NOT RUBBING ON ANY- THING.
  • Page 21 6 MM 1X REQUIRED 10-0695 10-0424 25-1738 10-0695 10-0424 25-1737 R E P F I T N E S S W W W . . C O M...
  • Page 22 6 MM 1X REQUIRED 15-1642 10-0424 10-0695 R E P F I T N E S S W W W . . C O M...

  • Page 23: Maintenance

    MAINTENANCE GUIDE RODS: CLEAN THE GUIDE RODS AND REAPPLY SILICONE SPRAY TO THE GUIDE RODS EVERY 3 MONTHS. CABLE TENSION: OVER TIME THE CABLES WILL STRETCH AND TENSION WILL REDUCE. TO MAINTAIN IDEAL PERFORMANCE TIGHTEN THE ADJUSTER BOLT ON THE TROLLEY.
