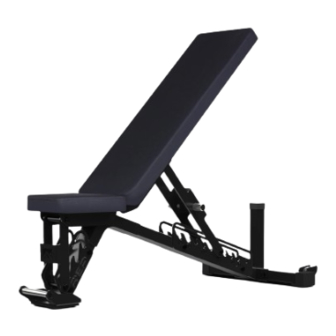

REP AB-5202 Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. REP Manuals
  4. Fitness Equipment
  5. AB-5202
  6. Assembly instructions manual

REP AB-5202 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
19MM WRENCH
6MM
1X INCLUDED
2X INCLUDED
45-0189-V2

Advertisement

loading
Need help?

Need help?

Do you have a question about the AB-5202 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REP AB-5202

Summary of Contents for REP AB-5202

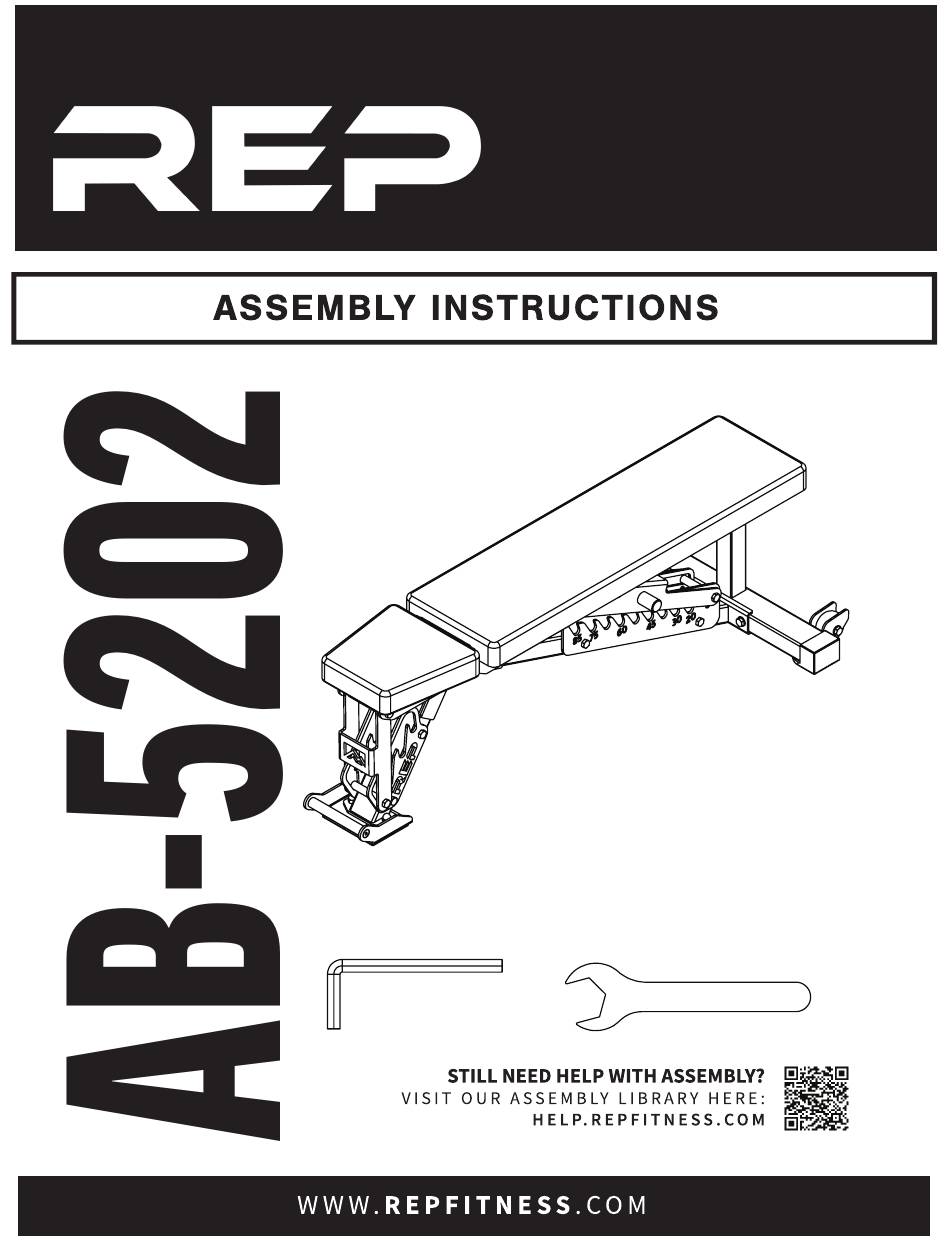

  • Page 1 19MM WRENCH 1X INCLUDED 2X INCLUDED 45-0189-V2...
  • Page 2 BOX 1 25-1647 STEP 5 25-1512 25-1698 STEP 2 25-1129 STEP 1 STEP 10 BOX 2 LEFT RIGHT 15-1598 15-1597 STEP 3 STEP 3 15-1098 STEP 7 15-1599 15-1099 STEP 7 STEP 7 25-1701 STEP 1B 25-1469 STEP 1A 20-0235 - NARROW 20-0250 - WIDE 20-0188 - NARROW 20-0251 - WIDE...
  • Page 3 HARDWARE LIST 10-0418 M12 WASHER, BLACK STEP 2 10-0419 M12X1.75, NUT, NYLON INSERT, BLACK STEPS 2, 3, 4, 7, 8 10-0439 ONE PRE-INSTALLED M12X1.75, L100 10-0443 10-0706 BOLT, BLACK M12X1.75, L105 L117 STEP 2 BOLT, BLACK STEP 4 STEPS 3, 7 10-0707 M12X1.75, L140 BOLT, BLACK...
  • Page 4 SAFETY ENSURE ALL HARDWARE IS PROPERLY TIGHTENED BEFORE USE. USE CAUTION WHEN STORING BENCH IN VERTICAL POSITION. IT MAY TIP IF STORED WITHOUT CARE. ONLY STORE BENCH WITH THE SEAT PAD AND BACK PAD IN THE 0° POSITION. DO NOT ADJUST SEAT PAD OR BENCH PAD POSITIONS WHILE IN STORAGE.
  • Page 6 19MM WRENCH 1X INCLUDED 25-1698 25-1469 25-1469 25-1698 10-0450 PRE-INSTALLED ON 25-1469...
  • Page 7 19MM WRENCH 1X INCLUDED 25-1698 25-1701 25-1701 25-1698 10-0450 PRE-INSTALLED ON 25-1701...
  • Page 9 10-0418 10-0419 M12 WASHER, M12X1.75, NUT, BLACK NYLON INSERT, BLACK 19MM WRENCH 25-1512 2X INCLUDED 10-0439 M12X1.75, L100 BOLT, BLACK 25-1512 10-0439 10-0418 10-0418 10-0419...
  • Page 10 19MM WRENCH 2X INCLUDED 15-1598 10-0443 15-1597 M12X1.75, L105 BOLT, BLACK 10-0419 M12X1.75, NUT, NYLON INSERT, BLACK 10-0419 15-1598 10-0443 15-1597...
  • Page 11 19MM WRENCH 10-0419 M12X1.75, NUT, 1X INCLUDED NYLON INSERT, BLACK 10-0706 L117 10-0707 M12X1.75, L140 BOLT, BLACK 10-0419 10-0707 10-0706...
  • Page 12 19MM WRENCH 1X INCLUDED 25-1647 10-0429 M12X1.75, NUT, CAP NUT, BLACK 10-0615 M12X1.75, CARRIAGE BOLT, BLACK 10-0429 25-1467 10-0615...
  • Page 13 10-0419 PRE-INSTALLED 10-0441 PRE-INSTALLED 10-0419 M12X1.75, NUT, NYLON INSERT, BLACK 10-0441 M12X1.75, L125 BOLT, BLACK...
  • Page 14 19MM WRENCH 2X INCLUDED 15-1099 15-1599 10-0443 15-1098 M12X1.75, L105 BOLT, BLACK 10-0419 M12X1.75, NUT, NYLON INSERT, BLACK 10-0419 15-1099 15-1098 15-1098 15-1599 10-0443...
  • Page 15 19MM WRENCH 10-0419 M12X1.75, NUT, 1X INCLUDED NYLON INSERT, BLACK 10-0437 L102 10-0441 M12X1.75, L125 BOLT, BLACK 10-0419 10-0441 10-0437...
  • Page 16 1X INCLUDED 10-0445 20-0235 - NARROW M10 WASHER, 20-0250 - WIDE BLACK 10-0449 M10X1.25, L25, BOLT, BUTTON HEAD, BLACK DO NOT FULLY TIGHTEN UNTIL 20-0235 - NARROW 20-0250 - WIDE 10-0445 10-0449...
  • Page 17 1X INCLUDED 25-1129 20-0188 - NARROW 20-0251 - WIDE 10-0445 M10 WASHER, BLACK 10-0449 M10X1.25, L25, BOLT, BUTTON HEAD, BLACK 20-0188 - NARROW 20-0251 - WIDE 25-1129 10-0445 10-0449...
  • Page 19 1X INCLUDED FULLY TIGHTEN...
  • Page 20 TROUBLESHOOTING IF EITHER PAD HAS TOO MUCH SIDE TO SIDE MOVEMENT TIGHTEN BOTH CENTRAL HINGE BOLTS UNTIL THERE ARE NO GAPS. 1X INCLUDED IF SIDE TO SIDE MOVEMENT STILL EXISTS, PROCEED TO...
  • Page 21 TROUBLESHOOTING 1X INCLUDED...
