Schematic Diagram - Linear Technology DC1792A Demo Manual

DEMO MANUAL DC1792A

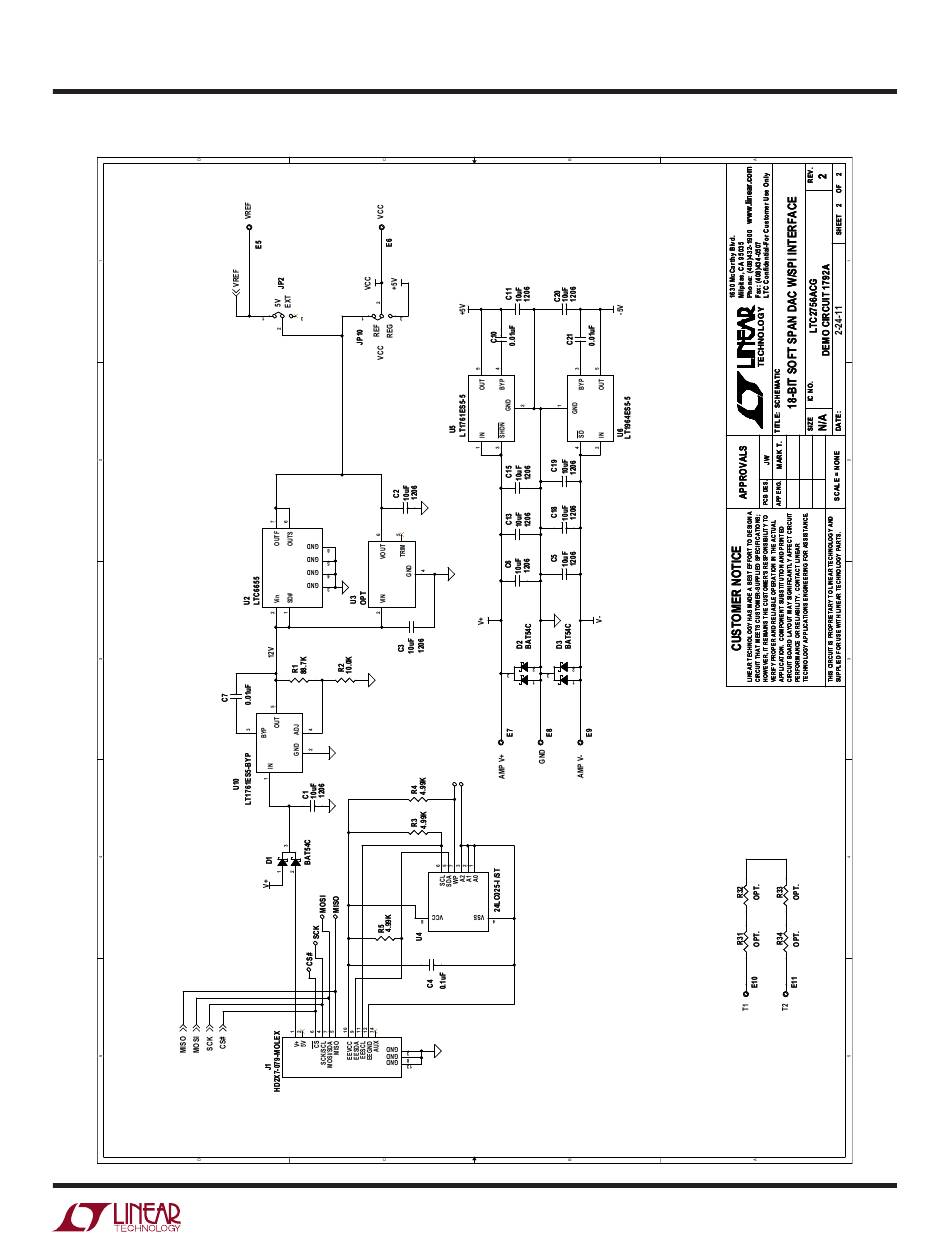

schematic Diagram

dc1792af
5
