Description

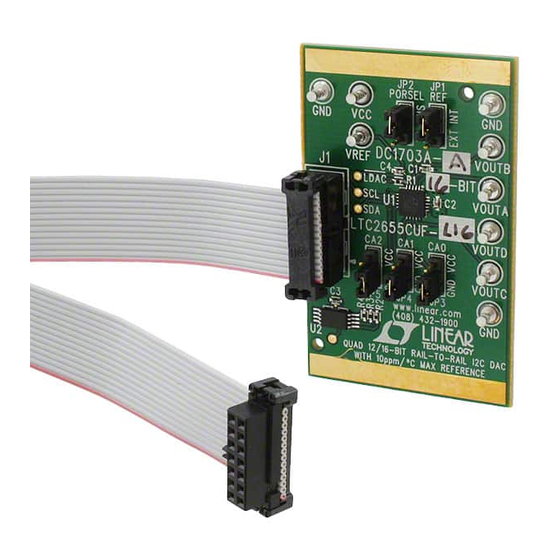

Demonstration circuit 1703A features the LTC
16-/12-bit DAC. The LTC2655 is a family of 16-/12- bit
rail-to-rail DACs with integrated 10ppm/°C maximum
reference. The LTC2655 advances performance standards
for output drive, crosstalk and load regulation in single
supply, voltage-output multiple DACs.
Arrow.com.
Downloaded from
2655 quad
®
To DC590

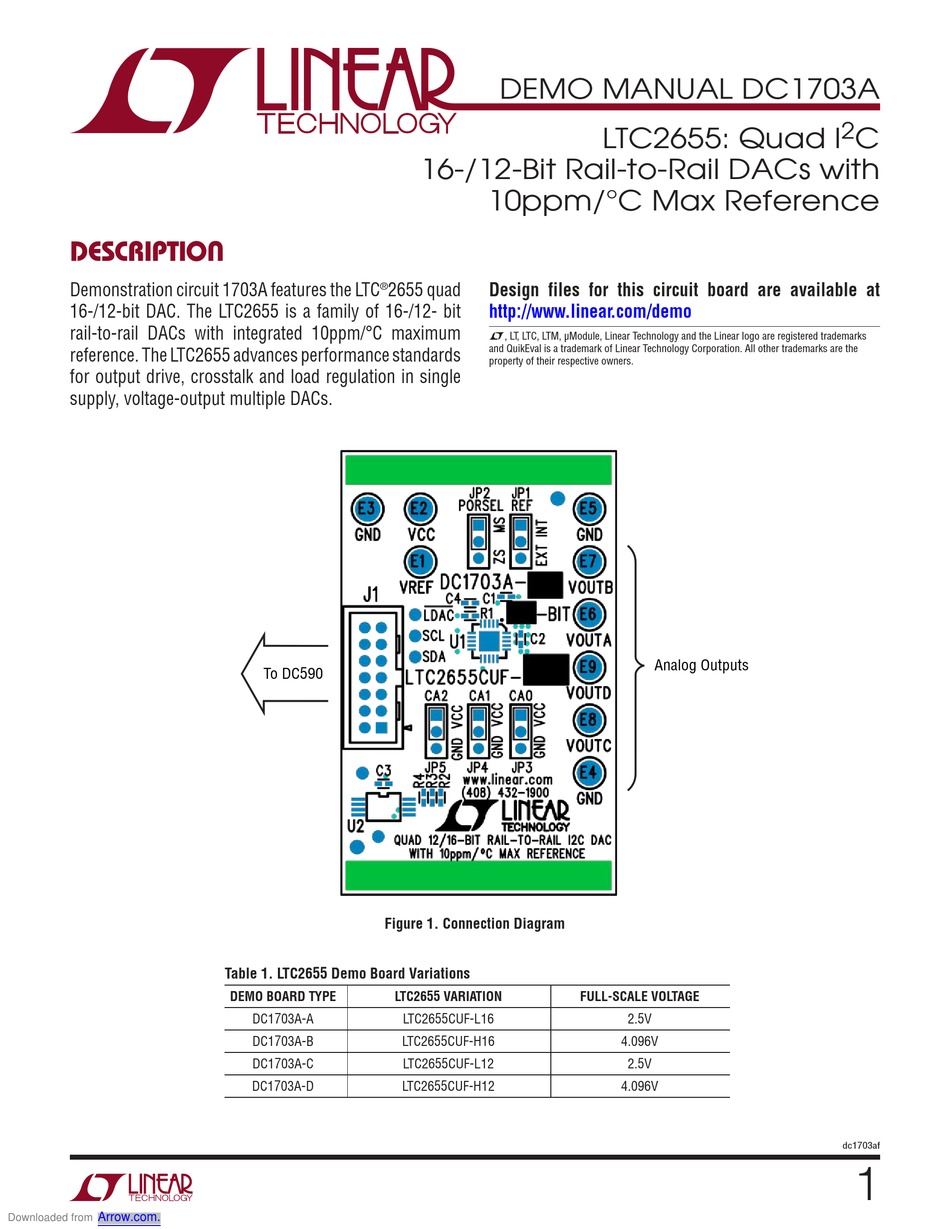

Figure 1. Connection Diagram
Table 1. LTC2655 Demo Board Variations
DEMO BOARD TYPE
LTC2655 VARIATION
DC1703A-A
LTC2655CUF-L16
DC1703A-B
LTC2655CUF-H16
DC1703A-C
LTC2655CUF-L12
DC1703A-D
LTC2655CUF-H12
DEMO MANUAL DC1703A
16-/12-Bit Rail-to-Rail DACs with
10ppm/°C Max Reference
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks
and QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
FULL-SCALE VOLTAGE
LTC2655: Quad I
Analog Outputs
2.5V
4.096V
2.5V
4.096V
2
C
dc1703af
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Linear Technology DC1703A
Summary of Contents for Linear Technology DC1703A
- Page 1 DACs with integrated 10ppm/°C maximum L, LT, LTC, LTM, µModule, Linear Technology and the Linear logo are registered trademarks and QuikEval is a trademark of Linear Technology Corporation. All other trademarks are the reference. The LTC2655 advances performance standards property of their respective owners.
-
Page 2: Quick Start Procedure
DEMO MANUAL DC1703A quick start proceDure Connect the DC1703A to a DC590 USB serial controller DC590 or download it from www.linear.com. The correct using the supplied 14 conductor ribbon cable. Connect control panel will be loaded automatically. In order to the DC590 to a host PC with a standard USB A/B cable. -
Page 3: Hardware Setup
QuikEval software. Grounding and Power Connections Analog Connections Power (V ): Normally the DC1703A is powered by the DAC Outputs: The 4 DAC outputs from the LTC2655 are DC590 controller. V can be supplied to this turret,... -
Page 4: Parts List
DEMO MANUAL DC1703A parts List ITEM REFERENCE PART DESCRIPTION MANUFACTURER, PART NUMBER C1, C2, C3 Capacitor, X7R, 0.1µF 16V, 0402 TDK, C1005X7R1C104K Capacitor, X7R, 0.047µF 16V, 0402 TDK, C1005X7R1C473K E1-E10 TP , Turret, 0.064" Mill-Max, 2308-2-00-80-00-00-07-0 JP1-JP5 Jumper, 3-Pin 1 Row 0.079CC Samtec, TMM-103-02-L-S Header, 2×7 Pin, 0.079CC... -
Page 5: Schematic Diagram
Information furnished by Linear Technology Corporation is believed to be accurate and reliable. However, no responsibility is assumed for its use. Linear Technology Corporation makes no representa- tion that the interconnection of its circuits as described herein will not infringe on existing patent rights. - Page 6 Linear Technology Corporation (LTC) provides the enclosed product(s) under the following AS IS conditions: This demonstration board (DEMO BOARD) kit being sold or provided by Linear Technology is intended for use for ENGINEERING DEVELOPMENT OR EVALUATION PURPOSES ONLY and is not provided by LTC for commercial use. As such, the DEMO BOARD herein may not be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations, including but not limited to product safety measures typically found in finished commercial goods.
