Description

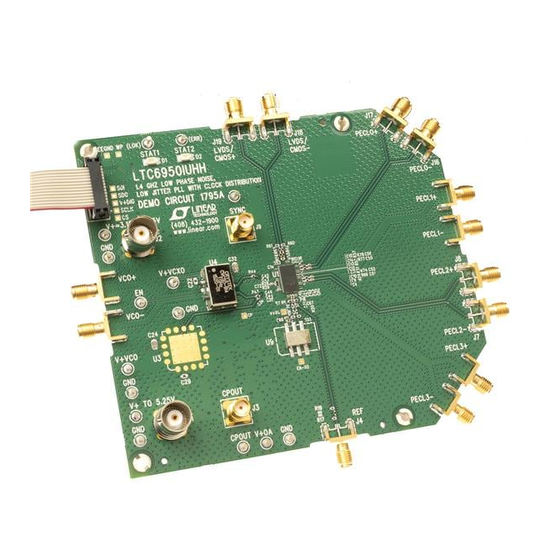

Demonstration circuit 1795A features the
1.4GHz low phase noise, low jitter PLL with clock dis-
tribution.
For ease of use, the DC1795A comes installed with a
100MHz reference and a 1GHz VCSO, voltage controlled
SAW oscillator with sine wave output. All differential
inputs and outputs have 0.5" spaced SMA connectors.
The DC1795A has four AC coupled LVPECL outputs with
50Ω transmission lines making them suitable to drive
50Ω impedance instruments. The LVDS/CMOS output is
DC coupled. The LTC6950's EZSync™ function is made
available via a turret and an SMA connector.
Ribbon
cable
connection
to DC590
3.3V DC Supply,
BNC & turret
5V U4 (VCXO) DC
Supply, turret
External VCO
Input, SMA
U3 (VCO) DC
Supply, turret
5V DC Supply,
BNC & turret
Arrow.com.
Downloaded from
1.4GHz Low Phase Noise, Low Jitter PLL
LTC
6950, a
®
LVDS/CMOS
DC-coupled
Stat Outputs,
Outputs, SMA
turrets
External VCO Charge
Pump Output, SMA
Active Loop Filter
and turret
Op-amp (U2) DC
Supply, turret
Figure 1. DC1795A Connections
DEMO MANUAL DC1795A
with Clock Distribution
For the evaluation of the LTC6950 with other VCOs and
references, the DC1795A can be modified to accommodate
different on-board or external components. It also allows
the user the option of a passive or active loop filter.
A DC590 USB serial controller board is used for SPI com-
munication with the LTC6950, controlled by the supplied
ClockWizard™ software.
Design files for this circuit board are available at
http://www.linear.com/demo/DC1795A
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and EZSync
and ClockWizard are trademarks of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
TM
EZSync
SYNC Input,
SMA & turret
Frequency Reference
Input, SMA
LTC6950
PECL0
AC Coupled
Outputs, SMA
PECL1
AC Coupled
Outputs, SMA
PECL2
AC Coupled
Outputs, SMA
PECL3
AC Coupled
Outputs, SMA
dc1795af
1
