Schematic Diagram - Linear Technology DC1161B Demo Manual

DEMO MANUAL DC1161B

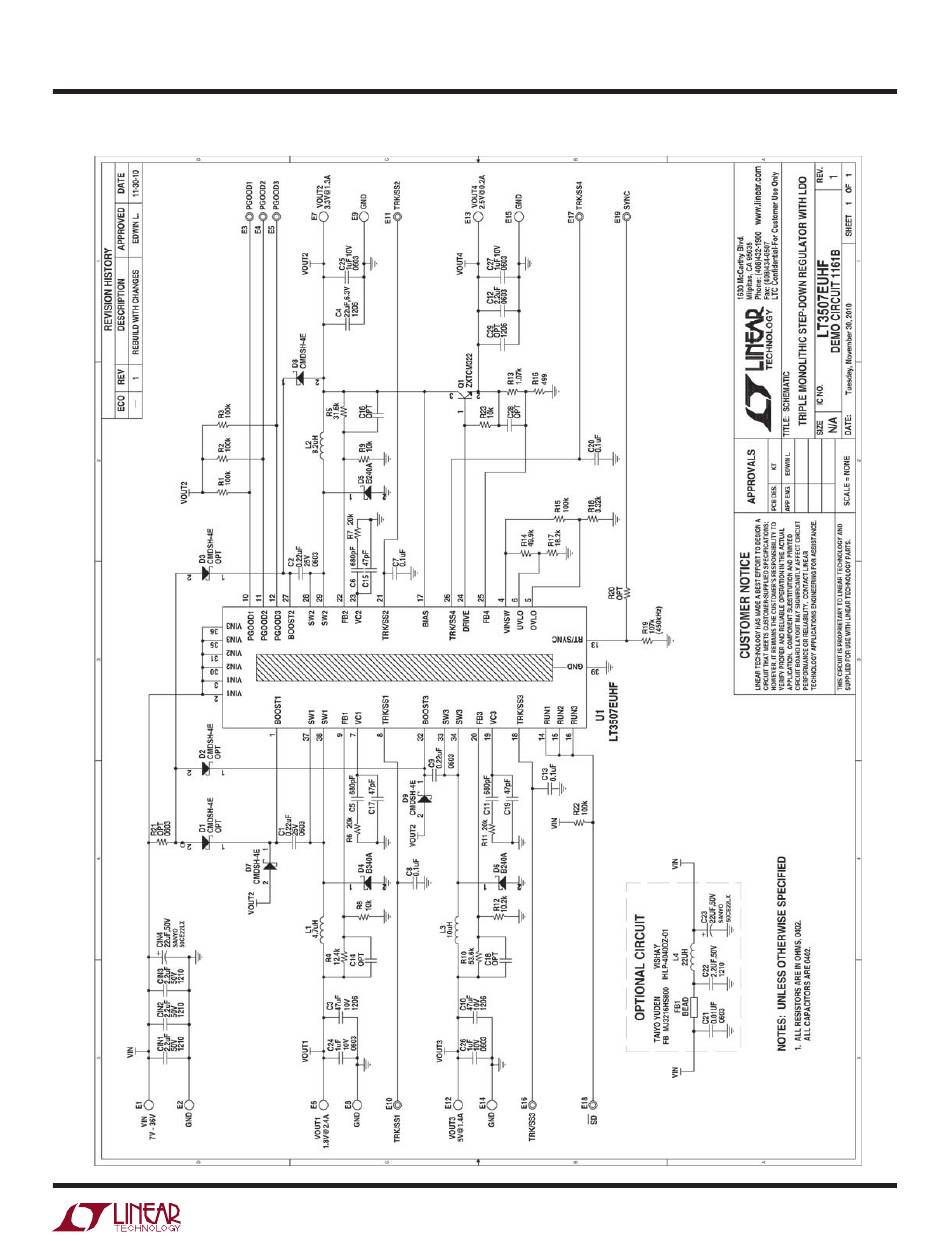

SCHEMATIC DIAGRAM

dc1161bf
