DESCRIPTION

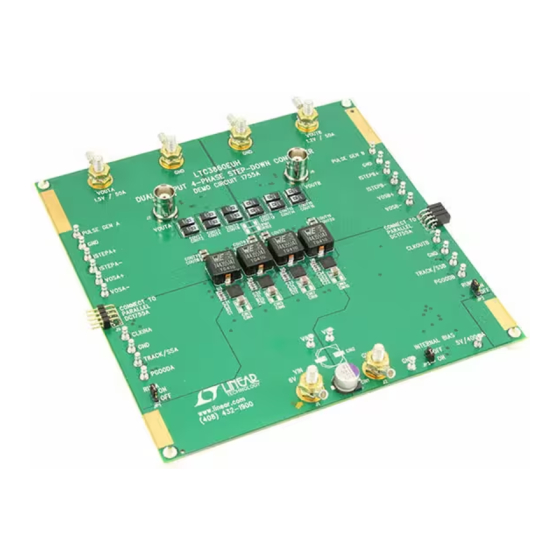

Demonstration circuit DC1755A provides the user with
two high current dual phase synchronous buck converters
driven by the LTC3860. These buck converters provide
outputs of 1.5V/50A and 1.2V/50A over an input voltage
range of 6V to 14V and a switching frequency of 500kHz.
The board can be easily modified for a 4-phase, single V
100A supply. The power stage for each phase consists
of the tri-state PWM compatible 6mm × 6mm Fairchild
DrMOS module and a 0.47μH 13.2mm × 12.8mm iron
powder type inductor from Würth. A high density, two
sided drop-in layout is used. The entire converter, excluding
the bulk output and input capacitors, fits within a 2.25" ×
1.38" area on the board.
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
PERFORMANCE SUMMARY
PARAMETER
Minimum Input Voltage
Maximum Input Voltage
Output Voltage V
OUTA
Output Voltage V
OUTB
V
Maximum Output Current, I
OUTA
V
Maximum Output Current, I
OUTB
Nominal Switching Frequency
Efficiency
See Figures 2 and 3
(T
= 25°C), no airfl ow.
A
CONDITIONS
I
= 0A to 50A, V
OUTA
I
= 0A to 50A, V
OUTB
V
= 6V to 14V, V
OUTA
IN
V
= 6V to 14V, V
OUTB
IN
V
= 1.5V, I
OUTA
V
= 1.2V, I
OUTB
DEMO MANUAL DC1755A
Wide Input Range,
High Efficiency Step-Down
DC/DC Converter
The main features of the board are listed below:
• High efficiency and high current density.
• Remote sensing for each output.
• Optional resistors to tie the two outputs together.
,
O
• Connector and header to tie two or more boards together
for up to 12-phase operation.
• RUN, PGOOD and TRACK/SS pins for each output.
• CLKIN and CLKOUT pins.
• Onboard bias voltage regulator.
• BNC connectors to monitor each output voltage.
Design files for this circuit board are available at
http://www.linear.com/demo
= 6V to 14V
IN
= 6V to 14V
IN
= 1.5V
OUTA
= 1.2V
OUTB
= 50A, V
= 12V
OUTA
IN
= 50A, V
= 12V
OUTB
IN
LTC3860EUH
VALUE
6V
14V
1.5V ± 2%
1.2V ± 2%
50A
50A
500kHz
90.2% Typical
89.2% Typical
dc1755af
1
