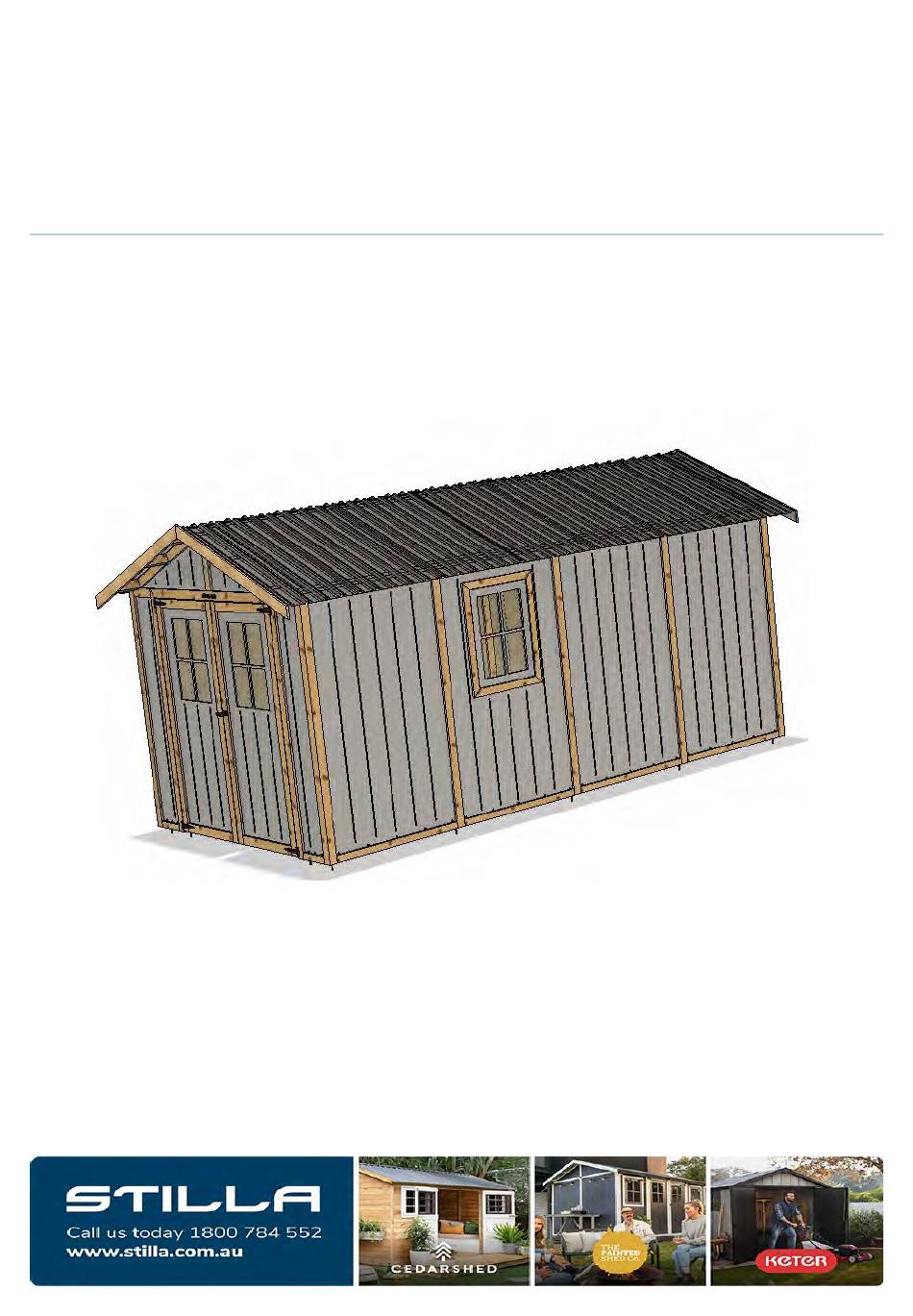

BRIGHTON [8x16]
USER MANUAL
IMPORTANT
Read carefully. Retain for future refence
BRIGHTON [8x16] -
v8, 03-2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the BRIGHTON and is the answer not in the manual?

Questions and answers

Related Manuals for STILLA BRIGHTON

Summary of Contents for STILLA BRIGHTON

  • Page 1 BRIGHTON [8x16] USER MANUAL IMPORTANT Read carefully. Retain for future refence BRIGHTON [8x16] - v8, 03-2024...
  • Page 2 & roofing. Please fully unpack all the parts & check against the parts checklist before con- tac ng customer service about anything you believe may be missing or damaged. Thank-you Protect Painted surfaces when laid down for processing. BRIGHTON [8x16] - 2 v8, 03-2024...
  • Page 3 Light coloured crayon/chinagraph pencil white/yellow. Phillips Bit (PH2), Ba en Screw Bit, Phillips Bit #2, 5/16” Hex driver, Drill Bits 3mm & 4mm, Countersink Bit (or Combina- on.) This product requires a minimum of 2 persons to assemble. BRIGHTON [8x16] - 3 v8, 03-2024...
  • Page 4 DG1217A1 Pine, 70mm x 45mm x 1217mm, Double Groove, Apex Angle top. SG1926A1 Pine 70 x 45 x 1926mm, Single Groove. Miter Top [230] DG1926 Pine 70x45x1926mm, Double Groove Plain ends PS32CSK, Phillips Screw #6 x 32mm, Countersunk. Panel Fixing to Frame BRIGHTON [8x16] - 4 v8, 03-2024...
  • Page 5 P1130x1824, Window Panel 1130 x 1824 x 9.5mm, P295x1824, Weathertex Panel x 1824 x 9.5mm, Grooved Grooved 295 x 1824 x 9.5mm, Grooved OPENING WINDOW FRAME [1] [12] BH20 MO/SM, Fix WF Assy to WP1130 Opening WF-Assy, Painted Window frame [assembled] BRIGHTON [8x16] - 5 v8, 03-2024...
  • Page 6 Phillips Screw #8 x 70mm, Counter- Phillips Screw #8 x 50mm, Countersunk. sunk. SB250 Top Fixing SB250 Bo om Fixing [105] SB250, Roof support Block 250mm BS125, Ba en Screw 125mm Galvanised. BS75, Ba en Screw 75mm Galvanized. BRIGHTON [8x16] - 6 v8, 03-2024...
  • Page 7 [13] [26] BKT6040G, Bracket 60mm x 40mm wide, CS650, Concrete screw 6mm x 50mm. RS25, Roofing Screw 25mm Electro-Galvanised. MISCELLANEOUS TU MO/SM, Paint Touchup Sil-MO/SM, Silicone sealant 300ml – coloured Monument / Surfmist 500ml BRIGHTON [8x16] - 7 v8, 03-2024...
  • Page 8 finished shed. PRE-DRILL - 3mm CP1926 [4] DG1926 [6] SG1926A [2] Drill internal webs only DG1130 [1] DG1217A [1] SG1740A2 [1] SG1130A2 [6] DG1130T2 [2] DG295T2 [2] BRIGHTON [8x16] - 8 v8, 03-2024...
  • Page 9 NOTE: Window posi on in shed, will determine Top Plate configura on. If to be on the Back wall [Opposite doors]. DG1130T2 should be fi ed. If to be placed in side walls SG1130T2 is required Back BRIGHTON [8x16] - 9 v8, 03-2024...
  • Page 10 2 x Double Groove Top plate [Side Walls] Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. BRIGHTON [8x16] - 10 v8, 03-2024...
  • Page 11 Orienta on before fixing Top Plates. FB20 MO/SM Overall height of panels should be equal to ver cal beams [1926mm]. CP1926 or DG1926 can be used as a gauge to ensure ideal panel height of the top plate component. BRIGHTON [8x16] - 11 v8, 03-2024...
  • Page 12 Panel Assy Or WP Assy CP1924 PS32CSK Construct a panel with Corner post on Right Rear face [as per image >] With SG top Rail [for Side wall] BRIGHTON [8x16] - 12 v8, 03-2024...
  • Page 13 Panel Assy + DG Top PS32CSK Panel Assy + SG Top SG Top Plate DG Top Plate BRIGHTON [8x16] - 13 v8, 03-2024...
  • Page 14 DG1130 DG1217A1 PS32CSK Angle cut to TOP FB32CSK [4] BRIGHTON [8x16] - 14 v8, 03-2024...
  • Page 15 Back Wall Construc on Panel Assy [DG Top] CP1924 PS32CSK PS32CSK [4] BRIGHTON [8x16] - 15 v8, 03-2024...
  • Page 16 Side Wall Assembly [14] Panel Assy [SG Top] DG1926 CP1924 PS32CSK [Alt WP Assy] PS32CSK [8] PS32CSK [6] REPEAT step 14 for assembly of opposite Side Wall. BRIGHTON [8x16] - 16 v8, 03-2024...
  • Page 17 Door Side Panels Front Panel Assy PS32CSK SG1924A1 PS32CSK Rear panels hidden for clarity BRIGHTON [8x16] - 17 v8, 03-2024...
  • Page 18 PS32CSK Rear of Door opening shown. Some assemblies hidden for clarity. BRIGHTON [8x16] - 18 v8, 03-2024...
  • Page 19 Door Head and Stop [14] SG1740A2 FB20MO/SM DST1800 FB20MO/SM [13] BRIGHTON [8x16] - 19 v8, 03-2024...
  • Page 20 CHECK structure for Square, once confirmed, fit remaining Screws to panels FB20MO/SM x 30 PS32CSK x 177 BRIGHTON [8x16] - 20 v8, 03-2024...
  • Page 21 GABLES—Prepara on SG1299A2 DG451A1 [12] FB189 BS100 PRE-DRILL - 3mm SG1299A2 DG451A2 18mm 18mm BRIGHTON [8x16] - 21 v8, 03-2024...
  • Page 22 GABLE Angle—Addi onal Drilling for Facia Block DRILL 4mm—Through Hole required SG1299A2 [4] DRILL 4mm—Minimum Depth 50mm FB189 [12] BS100 [3] BRIGHTON [8x16] - 22 v8, 03-2024...
  • Page 23 GABLES [2] —Assembly [48] SG1299A2 PS32CSK DG421A2 BRIGHTON [8x16] - 23 v8, 03-2024...
  • Page 24 Check Gable posi on is correct before Fixing in place with screws. PS32CSK BRIGHTON [8x16] - 24 v8, 03-2024...
  • Page 25 GABLE—Door Side BRIGHTON [8x16] - 25 v8, 03-2024...
  • Page 26 BRIGHTON [8x16] - 26 v8, 03-2024...
  • Page 27 SB250—Roof Support Block PS75CSK—Screw Top fixing PS50CSK—Screw Bo om fixing PS75CSK [1] PS50CSK [1] Fit a Support Block to both Gables BRIGHTON [8x16] - 27 v8, 03-2024...
  • Page 28 ROOF— Half Roof assembly [2] [12] REP1544 RF1135 LP872 [14] MREP1544 CH1800 MO / SM RS1400 MO / SM [140] [72] [28] RS50 MO / SM BS75 RD-AS2 MO / SM BS75 Pre-drilling will prevent spli ng! BRIGHTON [8x16] - 28 v8, 03-2024...
  • Page 29 BS75 [8] BRIGHTON [8x16] - 29 v8, 03-2024...
  • Page 30 BS75 [6] BS75 [6] BS75 [6] BS75 [6] BRIGHTON [8x16] - 30 v8, 03-2024...
  • Page 31 If Insula on was specified, it needs to be fi ed to the roof frame before a aching the roofing sheets. Fix Insula on to Frame with Staples or insula on fixings where indicated (Staples / fixings not supplied). Ensure fixings are aligned with Frame. BRIGHTON [8x16] - 31 v8, 03-2024...
  • Page 32 Top of Roof sheet has material folded upwards. Underside of Roof frame—Distance from sheet to frame edge. Roof sheet Top flush with top of frame. BRIGHTON [8x16] - 32 v8, 03-2024...
  • Page 33 Lay Shee ng on Frame Sheets 2,3,4,5 &6 Single overlap Sheets 1/2 overlap 1. Sheets 6/7 overlap 2 Overlap 2 BRIGHTON [8x16] - 33 v8, 03-2024...
  • Page 34 RS50 MO/SM [4] BRIGHTON [8x16] - 34 v8, 03-2024...
  • Page 35 BRIGHTON [8x16] - 35 v8, 03-2024...
  • Page 36 End Frame Fixings RS50 MO/SM [3] x2 Lower Roof Screws placed in Peaks of Sheet. Do not Over ghten. End Fixings placed in Valley nearest to end of Frame. BRIGHTON [8x16] - 36 v8, 03-2024...
  • Page 37 RD-AS2 MO / SM [11] x 2 Fit outer channels to roof, Le and Right sides. Drill and rivet channel to 1st & 2nd peaks on outer edges. Drill and rivet channel to Roof sheet as indicated BRIGHTON [8x16] - 37 v8, 03-2024...
  • Page 38 Roof Assembly—Installa on [28] CT-A BS75 [12] [10] Half roof Assembly PS50CSK BS125 Slide 1st Roof assembly onto the shed. BRIGHTON [8x16] - 38 v8, 03-2024...
  • Page 39 Align edge of roof frame on apex of Support Block and Gable Align Base of Roof frame with Bo om of Gable Frame BRIGHTON [8x16] - 39 v8, 03-2024...
  • Page 40 fi ng remaining roof panel. 6 x BS75 BS75 [3] x 2 Once the first roof panel is secured into the gables slide the other roof panel up into the corresponding gable gap. BRIGHTON [8x16] - 40 v8, 03-2024...
  • Page 41 Roof Side Fixings BS75 [3] BS75 [2] BS75 [3] Collar Tie. PS50CSK [6] BRIGHTON [8x16] - 41 v8, 03-2024...
  • Page 42 Gable assembly [24] F1500 PS32CSK PS32CSK BRIGHTON [8x16] - 42 v8, 03-2024...
  • Page 43 Make sure peak of ridge cap is in line with peak of fascia's. Screw through ridge cap into 3rd and 10th Ribs, from each end of the roof. Drive these screws through and into roof frame. RS50 MO/SM [8] 10th BRIGHTON [8x16] - 43 v8, 03-2024...

  • Page 44: Door Hanging

    Door Hanging Door Assy [L & R] TH150B 2mm > Le Hand shown—Right Mirrored. BRIGHTON [8x16] - 44 v8, 03-2024...
  • Page 45 Hinge Screws [3] Top Hinge Shown—Bo om similar. BRIGHTON [8x16] - 45 v8, 03-2024...
  • Page 46 BRIGHTON [8x16] - 46 v8, 03-2024...
  • Page 47 Door Furniture BB100S [15] DS1820x90 THB [Fixings Kit] FB20 MO/SM BH20 MO/SM [5] BRIGHTON [8x16] - 47 v8, 03-2024...
  • Page 48 Upper Drop Bolt— Posi on Lower Drop Bolt— Posi on BRIGHTON [8x16] - 48 v8, 03-2024...
  • Page 49 Side Door Stops, posi on BH20—5 per DS1820 BRIGHTON [8x16] - 49 v8, 03-2024...
  • Page 50 Lock Posi on 12mm and 2 x 6mm Note—Clearance Hole in Door Stop required BRIGHTON [8x16] - 50 v8, 03-2024...
  • Page 51 BRIGHTON [8x16] - 51 v8, 03-2024...
  • Page 52 Op onal: Trim excess length off Lock Square sha . BRIGHTON [8x16] - 52 v8, 03-2024...
  • Page 53 Insert Opening Window Frame [12] Opening Window Assembly FB20 MO/SM BH20 [12] BRIGHTON [8x16] - 53 v8, 03-2024...

  • Page 54: Anchor Kit

    Anchor Kit [Slab moun ng] [13] [13] [26] BKT6040G SB650 RS25 Bracket Posi ons BRIGHTON [8x16] - 54 v8, 03-2024...
  • Page 55 Masonry Drill 5mm, 50mm Deep BRIGHTON [8x16] - 55 v8, 03-2024...

  • Page 56: Finishing Touches

    Once paint is dry, seal bo om and sides of panels with supplied Silicone sealant. TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.s lla.com.au/warranty and complete the online form.
