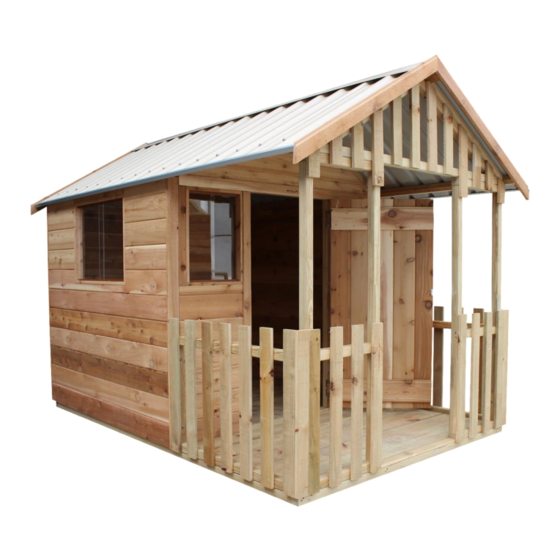

STILLA Hideout S2011 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
STILLA

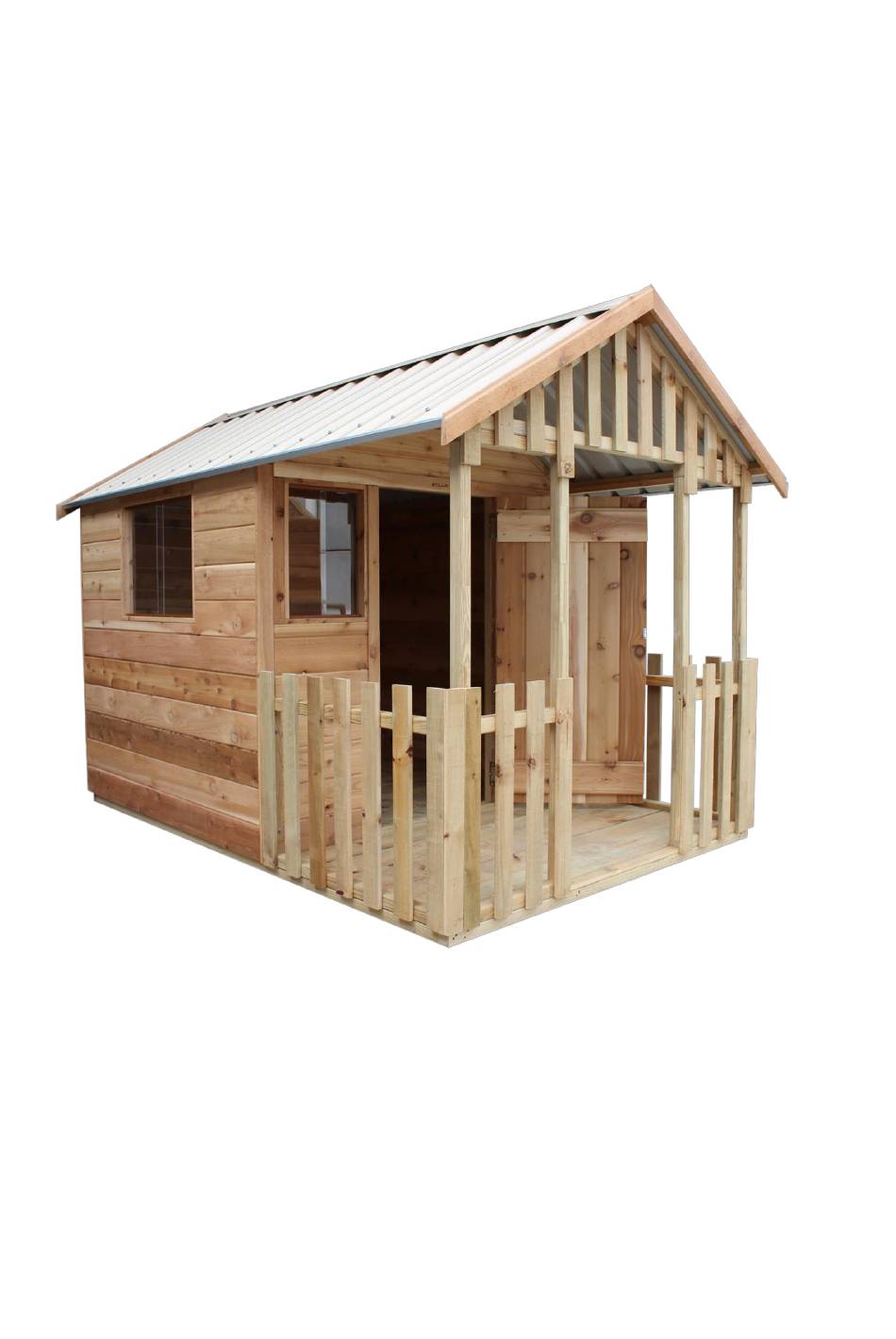

ASSEMBLY INSTRUCTIONS
'Hideout'
S2011
Every part needed to construct your cubby is included inside the pack; cedar
panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully
unpack all the parts & check against the parts checklist before contacting
customer service about anything you believe may be missing. Thank-you!

Advertisement

loading
Need help?

Need help?

Do you have a question about the Hideout S2011 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for STILLA Hideout S2011

Summary of Contents for STILLA Hideout S2011

  • Page 1 STILLA ASSEMBLY INSTRUCTIONS ‘Hideout’ S2011 Every part needed to construct your cubby is included inside the pack; cedar panels, doors, windows, hardware kits & roof sheeting. Please ensure you fully unpack all the parts & check against the parts checklist before contacting...
  • Page 2 Caution Please be careful when handling all components, some parts have sharp metal edges. Always wear work gloves, eye protection and long sleeves when assembling or maintaining your Hideout. Tools required for assembly • Level • Batten drive • Drill •...
  • Page 3 HIDEOUT PARTS CHECKLIST Part Code Checked Part Description Back Panel Front Panel Side Panel Window Panel 5ft Front Gable 5ft Back Gable 5ft Verandah Gable Side Railing Front Verandah Railing Roof Sheeting 6&2 Double Pans 980mm 6 & 2 Ridge Cap 1450mm Roof Rafters 780mm 5 Foot Fascia Pack Hardware Kit...
  • Page 4 STEP 1.0 FLOOR KIT 1.0 - ASSEMBLY PARTS –FLOOR KIT PART CODE QTY DESCRIPTION End plate – 1570x70x35 Single joist – 2330x70x35 Double joist – 2330x70x35 with 42mm joined 75mm Nail 1.0 - ASSEMBLY –FLOOR KIT Fasten through EP into DJ using 3x75N per join. Fasten through EP into SJ using 2x75N per join.
  • Page 5 STEP 1.1 FLOOR KIT 1.4 - ASSEMBLY PARTS – FLOOR KIT PART CODE QTY DESCRIPTION Floor board 50PS 50mm Phillips screw 1.4 - ASSEMBLY – FLOOR KIT Place floor boards on floor and fasten to floor frame using 12x50PS per sheet. Floor boards sit in 36mm from sides &...
  • Page 6 STEP 2.0 WALL ASSEMBLY Ensure tongue on VJ Cedar Cladding is facing upwards. 2.0 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Back panel 1500mm Side panel 65HHS 65mm Hex head screw 2.0 - ASSEMBLY – WALL ASSEMBLY Screw through BP into SP at top and bottom.

  • Page 7: Wall Assembly

    STEP 2.2 WALL ASSEMBLY 2.2 - ASSEMBLY PARTS – WALL ASSEMBLY PART CODE QTY DESCRIPTION 1500mm Front panel - peel protective cover off Perspex windows 65HHS 65mm Hex head screw 2.2 - ASSEMBLY – WALL ASSEMBLY Screw through FP into SP and WP at top and bottom using 2 x 65HHS per side and holding studs flush on the inside.
  • Page 8 STEP 2.3 WALL ASSEMBLY 2.3 - ASSEMBLY PARTS – FASTEN TO FLOOR PART CODE QTY DESCRIPTION 65HHS 65mm Hex head screw 2.3 - ASSEMBLY – FASTEN TO FLOOR Position cubby with wall cladding overhanging floor on sides and back. Screw through bottom plate on wall panels. STEP 2.4 VERANDAH RAILING ASSEMBLY 2.4 - ASSEMBLY PARTS –...
  • Page 9 STEP 2.5 VERANDAH RAILING ASSEMBLY 2.5 - ASSEMBLY PARTS – VERANDAH RAILING ASSEMBLY PART CODE QTY DESCRIPTION Front verandah railing 2.5 - ASSEMBLY – VERANDAH RAILING ASSEMBLY Hold FR in position screw through FR into SR using 2 x 65HHS. Fasten FR to floor using 1 x 65HHS through bottom plate –...
  • Page 10 STEP 3.0 GABLE ASSEMBLY 3.0 - ASSEMBLY PARTS – GABLE ASSEMBLY PART CODE QTY DESCRIPTION Verandah gable 65HHS 65mm Hex head screw 3.0 - ASSEMBLY – GABLE ASSEMBLY Holding veranda gable (VG) in position, fasten up through front panels using 2 x 65HHS either side.
  • Page 11 STEP 3.1 GABLE ASSEMBLY 3.1 - ASSEMBLY PARTS – GABLE ASSEMBLY PART CODE QTY DESCRIPTION Back gable Front gable 65HHS 65mm Hex head screw 3.1 - ASSEMBLY – GABLE ASSEMBLY Holding gables (FG & BG) in position fasten up through Front and Back panels to secure. 10 | P a g e...
  • Page 12 STEP 3.2 VERANDAH FLOOR 3.2 - ASSEMBLY PARTS – VERANDAH FLOOR PART CODE QTY DESCRIPTION Verandah Floor board 40mm Nail Door Step 3.2 - ASSEMBLY – VERANDAH FLOOR Lay verandah floor boards on verandah frame of cubby. Evenly space floor boards. Using 8x40N per board, fasten into SJ’s &...

  • Page 13: Roof Assembly

    STEP 3.3 ROOF ASSEMBLY 3.3 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION Bottom batten Top batten Rafter 100BS 100mm Batten screw 3.3 - ASSEMBLY – ROOF ASSEMBLY Slide rafters (R) into checked out sections in battens (BB & TB). Fasten through BB & TB into R using 1 x 100BS per join.
  • Page 14 STEP 3.4 ROOF ASSEMBLY 3.4 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 980mm Paper bark roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 3.4 - ASSEMBLY – ROOF ASSEMBLY Lay roof on a hard surface. Position 1 roof sheet at each end (RS) flush at top and flush with end of roof battens.
  • Page 15 STEP 3.5 ROOF ASSEMBLY 3.5 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 980mm Roof sheet 40RS 40mm Roof screw 25RS 25mm Roof screw 3.5 - ASSEMBLY – ROOF ASSEMBLY Complete laying roof sheeting out on frame. Fasten roof sheets to battens in sequence shown.
  • Page 16 STEP 3.6 ROOF ASSEMBLY 3.6 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 40RS 40mm Roof screw 25RS 25mm Roof screw 3.6 - ASSEMBLY – ROOF ASSEMBLY Complete screwing roof off at top. 1 x 25RS in pan beside every rib. Once top complete screw bottom off using 1 x 40RS in every rib.
  • Page 17 STEP 3.7 ROOF ASSEMBLY 3.7 - ASSEMBLY PARTS – ROOF ASSEMBLY PART CODE QTY DESCRIPTION 2565mm Channel Self-tapping screw 3.7 - ASSEMBLY – ROOF ASSEMBLY Fasten capping C to roof using 5 x ST. Bent up edge at top. (TOP) 16 | P a g e...

  • Page 18: Roof Installation

    STEP 3.7 ROOF INSTALLATION 3.7 - ASSEMBLY PARTS – ROOF INSTALLATION PART CODE QTY DESCRIPTION Completed rooves 3.7 - ASSEMBLY – ROOF INSTALLATION Slide roof panel into position with rafters flush with gables on the inside (see diagram). Fasten up through all 3 gables into roof panel. 2 x 65HHS into veranda gable & 1 x 65HHS into cubby gables screw up through cubby side walls using 2 x 65HHS per side.
  • Page 19 STEP 4.1 RIDGE CAP ASSEMBLY 4.1 - ASSEMBLY PARTS – RIDGE CAP ASSEMBLY PART CODE QTY DESCRIPTION Ridge cap 40RS 40mm Roof screw 4.1 - ASSEMBLY – RIDGE CAP ASSEMBLY Slide ridge caps (RC) into position. Screw through ridge caps, through 2 rib in and into batten.
  • Page 20 STEP 5.0 HANGING DOOR 5.0 - ASSEMBLY PARTS –HANGING DOOR PART CODE QTY DESCRIPTION Hinge Screw Hinge Door Handle 5.0 - ASSEMBLY – HANGING DOOR Screw hinges to door centred over brace on back using HS. Holding door centre of opening, fasten to cubby front panel using HS. Screw door handle in position shown.
  • Page 21 STEP 5.1 DOOR CLIP ASSEMBLY 5.1 - ASSEMBLY PARTS – DOOR CLIP ASSEMBLY PART CODE QTY DESCRIPTION Door Clip 50PS 50mm Phillips screw 5.1 - ASSEMBLY – DOOR CLIP ASSEMBLY Fasten clip to back of door behind door handle using 15mm screw provided. Holding door in closed position with hasp in clip, fasten to cubby wall frame using 1x50PS.

  • Page 22: Product Maintenance

    TO REGISTER YOUR WARRANTY Thank-you for purchasing a STILLA product. To register your 10 year product warranty, please go to www.stilla.com.au/warranty and complete the online form. We recommend that you complete this step once you have finished installing your product.
  • Page 23 22 | P a g e...
  • Page 24 SHOW US YOUR CUBBY We would love to see a photo of your STILLA product installed in your backyard. Please upload this image when completing the warranty registration. Alternatively, you can send the photos by email to sales@stilla.com.au. If you require any assistance, please feel free to call or email.
